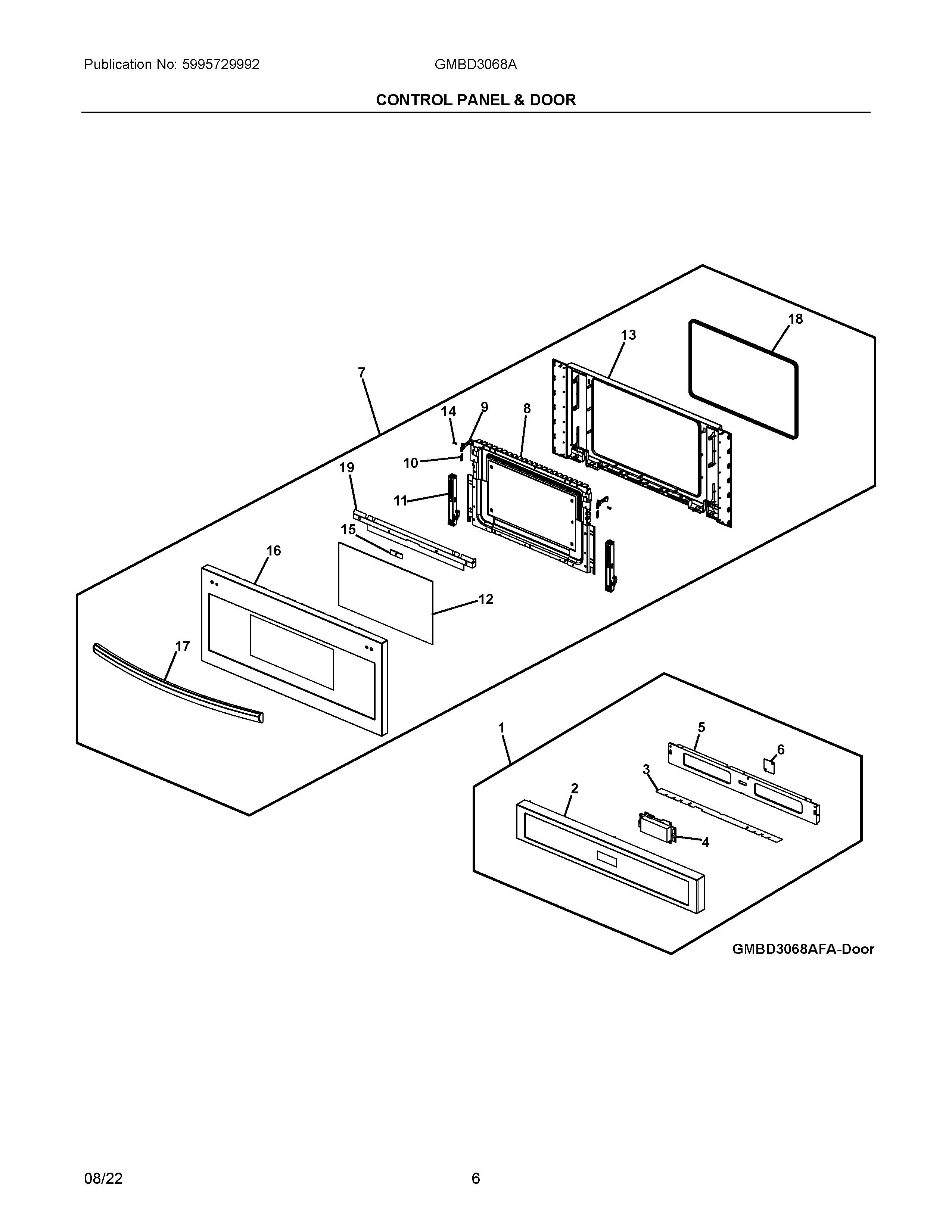

GMBD3068ADA 03 – CONTROL PANEL & DOOR

Products

PositionProduct
15304531717 Frigidaire Control Panel
2CONTROL PANEL, ASSEMBLY, GLASS/STEEL, BLACK STAINLESS, OUTER
3SHIELD, CONTROL PANEL
45304531642 Frigidaire Pc Board
5BRACKET, CONTROL PANEL
6COVER, LIGHT BLOCK
7DOOR ASSEMBLY, COMPLETE, BLACK STAINLESS
8DOOR LINER, ASSEMBLY, INNER
95304514310 Frigidaire Microwave Latch Assembly
105304514311 Frigidaire Spring
115304515301 Frigidaire Microwave Hinge
12INSULATION, GLASS HEAT
135304515302 Frigidaire Microwave Cover
145304514312 Frigidaire Pin
15BRACKET, PLASTIC
165304531720 Frigidaire Door Assembly
17HANDLE, DOOR, BLACK STAINLESS
185304515305 Frigidaire Microwave Gasket
19HEAT SHEILD, DOOR, UPPER
