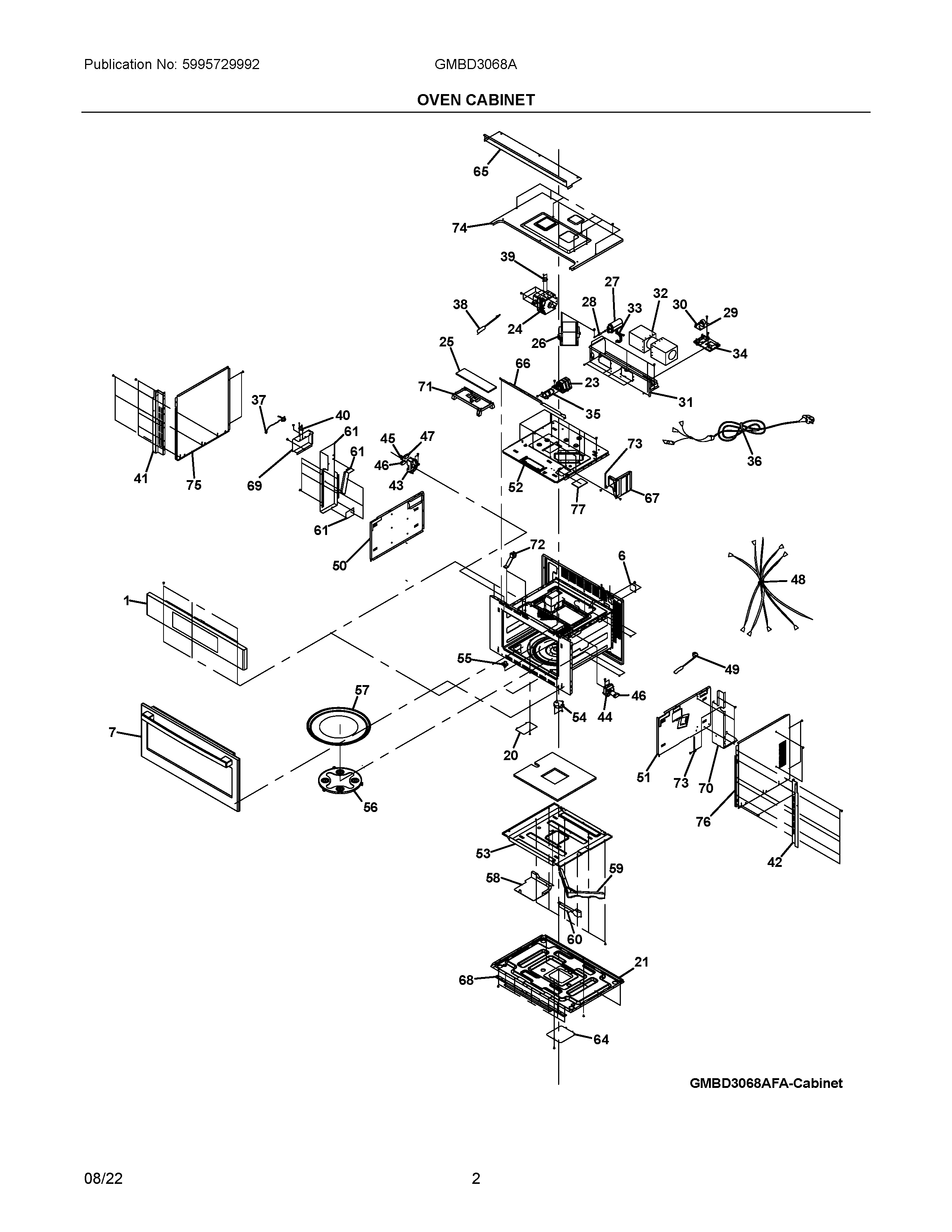

GMBD3068AFA 02 – OVEN CABINET

Products

PositionProduct
NIAWCI 5304515321
NIBWCI 5304515322
1CONTROL PANEL, ASSEMBLY, STAINLESS, COMPLETE
6COVER, LIGHT BLOCK
7DOOR ASSEMBLY, COMPLETE, STAINLESS, W/HANDLE
205304514227 Frigidaire Stirrer Blade Cover
215304514238 Frigidaire Microwave Base Plate
235304514247 Frigidaire Cover
245304514250 Frigidaire Microwave Magnetron
255304527879 Frigidaire Microwave Pc Board
265304514249 Frigidaire Microwave Transformer
275304518895 Frigidaire Microwave Capacitor
28DIODE, HIGH VOLTAGE
295304525109 Frigidaire Microwave Filter
305304514258 Frigidaire Microwave Fuse
315304514254 Frigidaire Bracket Assembly
325304514255 Frigidaire Microwave Fan Exhaust
335304513482 Frigidaire Holder
345304515326 Frigidaire Holder
35BULB, LAMP
36POWER CORD, ELECT SERVICE
375304509652 Frigidaire Microwave Sensor
385304514252 Frigidaire Microwave Fuse Assembly
395304515313 Frigidaire Microwave Thermostat
405304518898 Frigidaire Microwave Thermostat
41BRACKET, TRIM, LH
42BRACKET, TRIM, RH
435304515317 Frigidaire Microwave Board Latch
445304515318 Frigidaire Microwave Board Latch
455304514265 Frigidaire Microwave Rod
465304514264 Frigidaire Microwave Switch
475304514266 Frigidaire Microwave Switch
485304518901 Frigidaire Microwave Harness
49HARNESS, WIRING, MOTOR
505304518902 Frigidaire Shield Plate Assembly
515304518903 Frigidaire Shield Plate
52SHIELD PLATE, HEAT, TOP
53WCI 5304518904
54MOTOR, TURNTABLE
555304518906 Frigidaire Microwave Coupler
565304518907 Frigidaire Microwave Rotating Ring
575304513473 Frigidaire Microwave Tray
58WCI 5304514235
59WCI 5304514236
60WCI 5304514237
61WCI 5304515320
645304514239 Frigidaire Cover
65WCI 5304518908
66WCI 5304514282
67WCI 5304515324
68WCI 5304515325
69WCI 5304514269
70WCI 5304515323
715304518909 Frigidaire Barcket
72WCI 5304514242
73WCI 5304531646
74WCI 5304514259
75WCI 5304514272
76WCI 5304514277
775304514241 Frigidaire Glass
