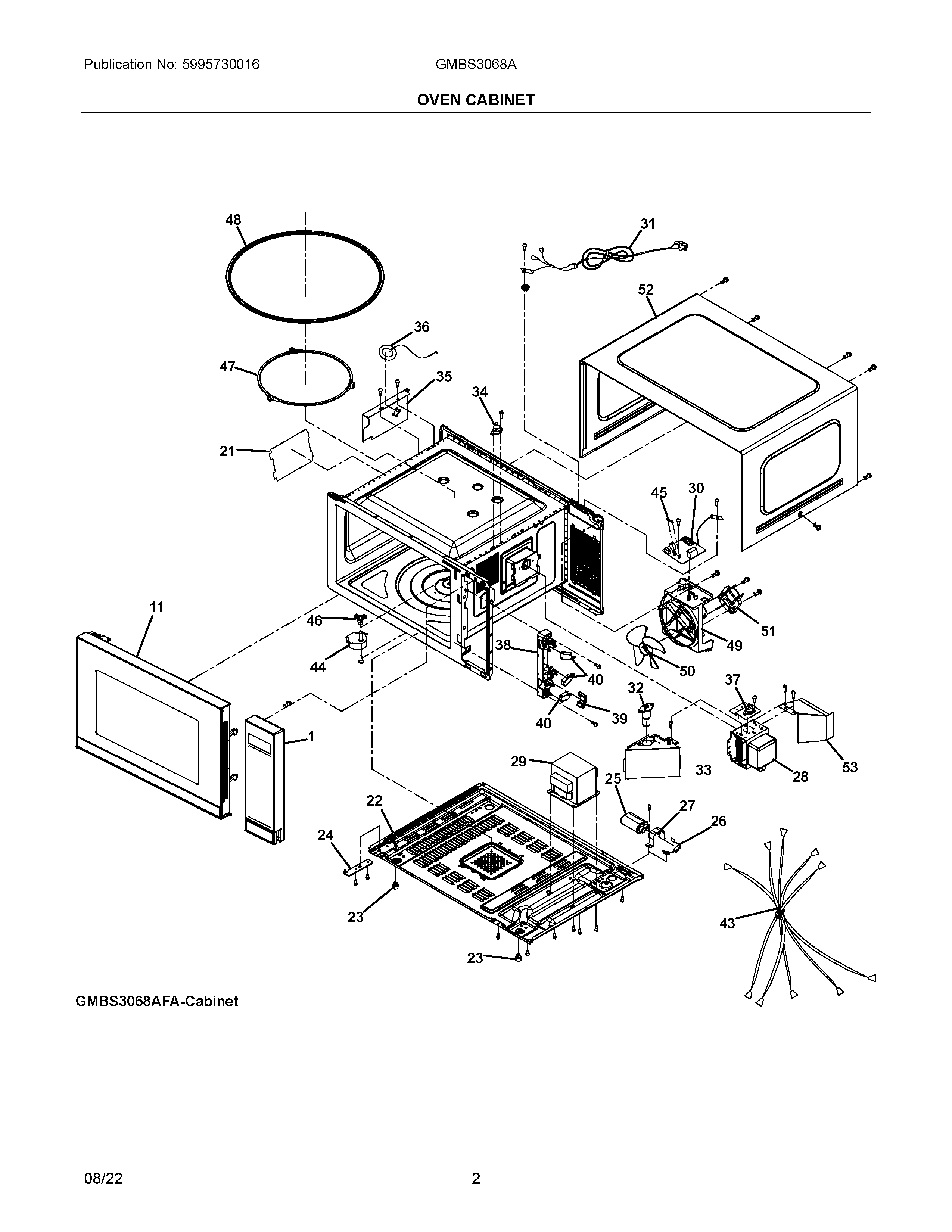

GMBS3068AFA 02 – OVEN CABINET

Products

PositionProduct
15304532546 Frigidaire Control Panel
115304532548 Frigidaire Door Assembly
215304505675 Frigidaire Microwave Stirrer Blade Cover
225304519319 Frigidaire Base
235304505674 Frigidaire Microwave Foot
245304519320 Frigidaire Microwave Hinge
255304513458 Frigidaire Microwave Capacitor
26DIODE, HIGH VOLTAGE
275304509477 Frigidaire Retainer
285304513456 Frigidaire Microwave Magnetron
295304513457 Frigidaire Microwave High Voltage Transformer
305304525109 Frigidaire Microwave Filter
31POWER CORD
32BULB, LAMP
33Cover, wind guide, metal
345304520011 Frigidaire Microwave Thermostat
35INSULATOR, HEAT
365304509652 Frigidaire Microwave Sensor
375304519318 Frigidaire Microwave Thermostat
385304519341 Frigidaire Microwave Bracket
395304532544 Frigidaire Lever
40ASWITCH
40B5304520021 Frigidaire Microwave Microswitch
405304520019 Frigidaire Microwave Microswitch
435304520022 Frigidaire Microwave Harness
445304532545 Frigidaire Motor
455304517874 Frigidaire Fuse
465304519346 Frigidaire Microwave Coupler
475304519347 Frigidaire Microwave Ring Assembly
485304519348 Frigidaire Microwave Tray
495304519349 Frigidaire Guide
505304519350 Frigidaire Microwave Blade
515304519351 Frigidaire Microwave Motor
525304519354 Frigidaire Microwave Wrapper
535304513477 Frigidaire Microwave Guide
