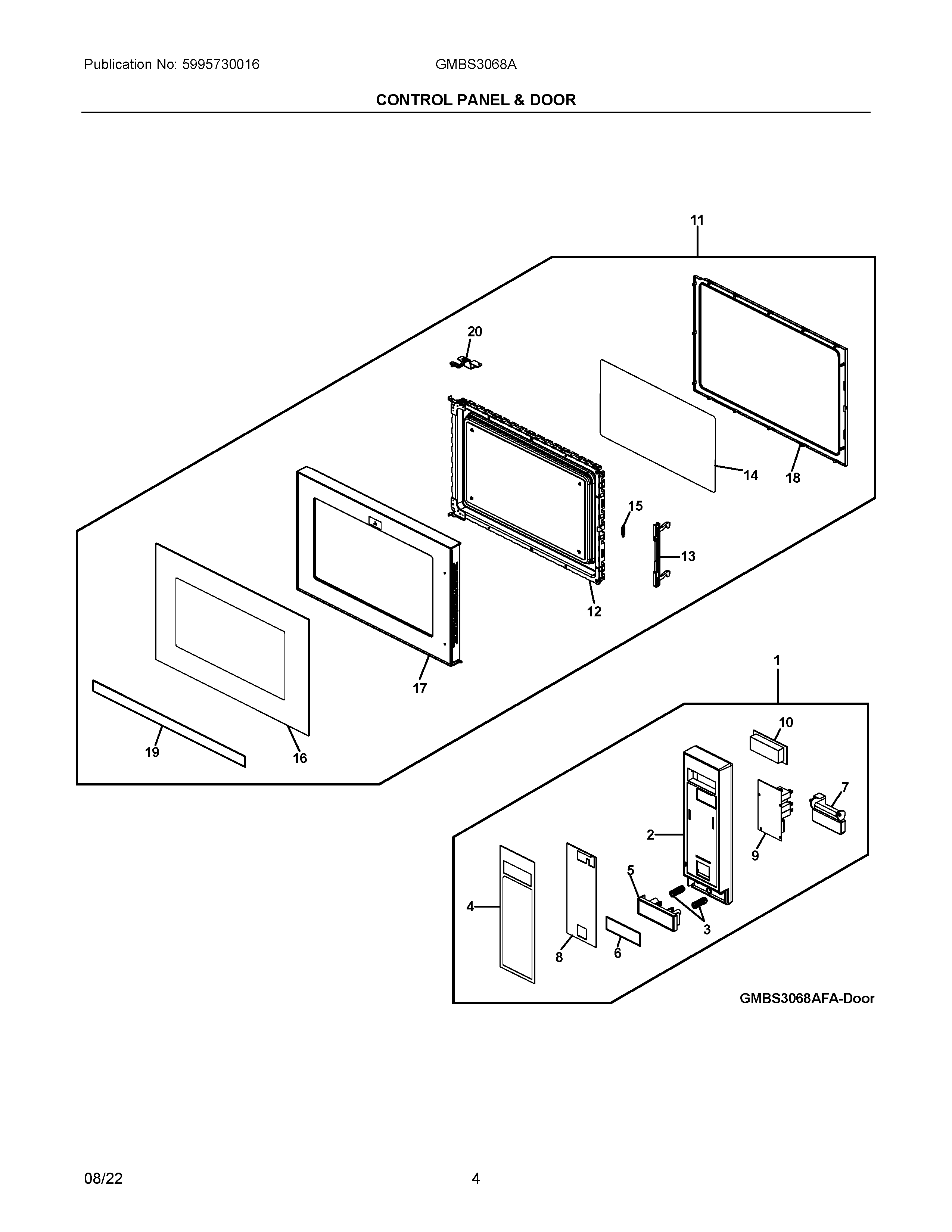

GMBS3068AFA 03 – CONTROL PANEL & DOOR

GMBS3068AFA 03 – CONTROL PANEL & DOOR

Written by

in

GMBS3068AFA 03 – CONTROL PANEL & DOOR

Products

PositionProduct
15304532546 Frigidaire Control Panel
25304532531 Frigidaire Microwave Control Panel
35304519324 Frigidaire Microwave Spring
4OVERLAY
55304532533 Frigidaire Button
6TRIM
75304519325 Frigidaire Microwave Lever
8PC BOARD, TOUCH PAD, USER INTERFACE
95304532536 Frigidaire Microwave PCB
10PC Board, display
115304532548 Frigidaire Door Assembly
125304519329 Frigidaire Microwave Frame
135304519330 Frigidaire Microwave Latch Assembly
14Screen, door, inner
155304519334 Frigidaire Microwave Spring
16Overlay, door, black, outer
17Door Panel, outer, black
185304519332 Frigidaire Gasket
19TRIM
205304519333 Frigidaire Microwave Hinge
