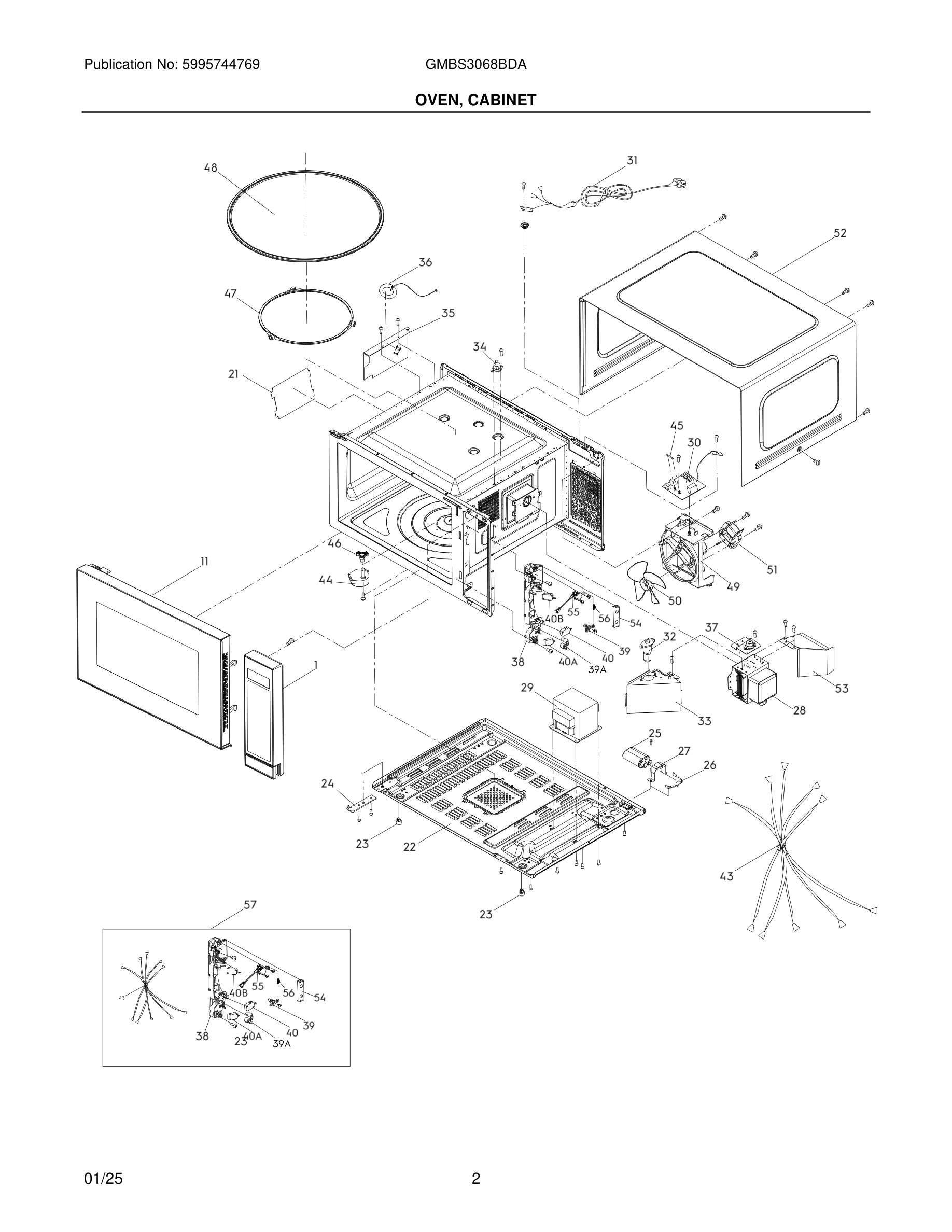

GMBS3068BDA 03 – OVEN, CABINET

Products

Position	Product
1#	Control Panel, assembly, black stainless
11#	Door Assembly, complete, black stainless
21	5304505675 Frigidaire Microwave Stirrer Blade Cover
22	5304519319 Frigidaire Base
23	5304505674 Frigidaire Microwave Foot
24	5304519320 Frigidaire Microwave Hinge
25#	5304513458 Frigidaire Microwave Capacitor
26#	DIODE, HIGH VOLTAGE
27	5304509477 Frigidaire Retainer
28#	5304513456 Frigidaire Microwave Magnetron
29#	5304513457 Frigidaire Microwave High Voltage Transformer
30#	5304525109 Frigidaire Microwave Filter
31#	POWER CORD
32#	5304528944 Frigidaire Microwave Lamp Assembly
33	Cover, wind guide, metal
34#	5304520011 Frigidaire Microwave Thermostat
35	INSULATOR, HEAT
36#	5304509652 Frigidaire Microwave Sensor
37#	5304519318 Frigidaire Microwave Thermostat
38	Bracket, latch
39	Lever, interlock, lower
39A	Interlock, lever, lower
40#	SWITCH
40B#	5304520021 Frigidaire Microwave Microswitch
40A#	5304520019 Frigidaire Microwave Microswitch
43#	5304520022 Frigidaire Microwave Harness
44#	5304532545 Frigidaire Motor
45#	5304517874 Frigidaire Fuse
46	5304519346 Frigidaire Microwave Coupler
47	5304519347 Frigidaire Microwave Ring Assembly
48	5304519348 Frigidaire Microwave Tray
49	5304519349 Frigidaire Guide
50	5304519350 Frigidaire Microwave Blade
51#	5304519351 Frigidaire Microwave Motor
52	5304519354 Frigidaire Microwave Wrapper
53	5304513477 Frigidaire Microwave Guide
54	Cover, plate
55	Door Lock, lower
56	Spring, door latch
57	INTERLOCK ASSEMBLY
