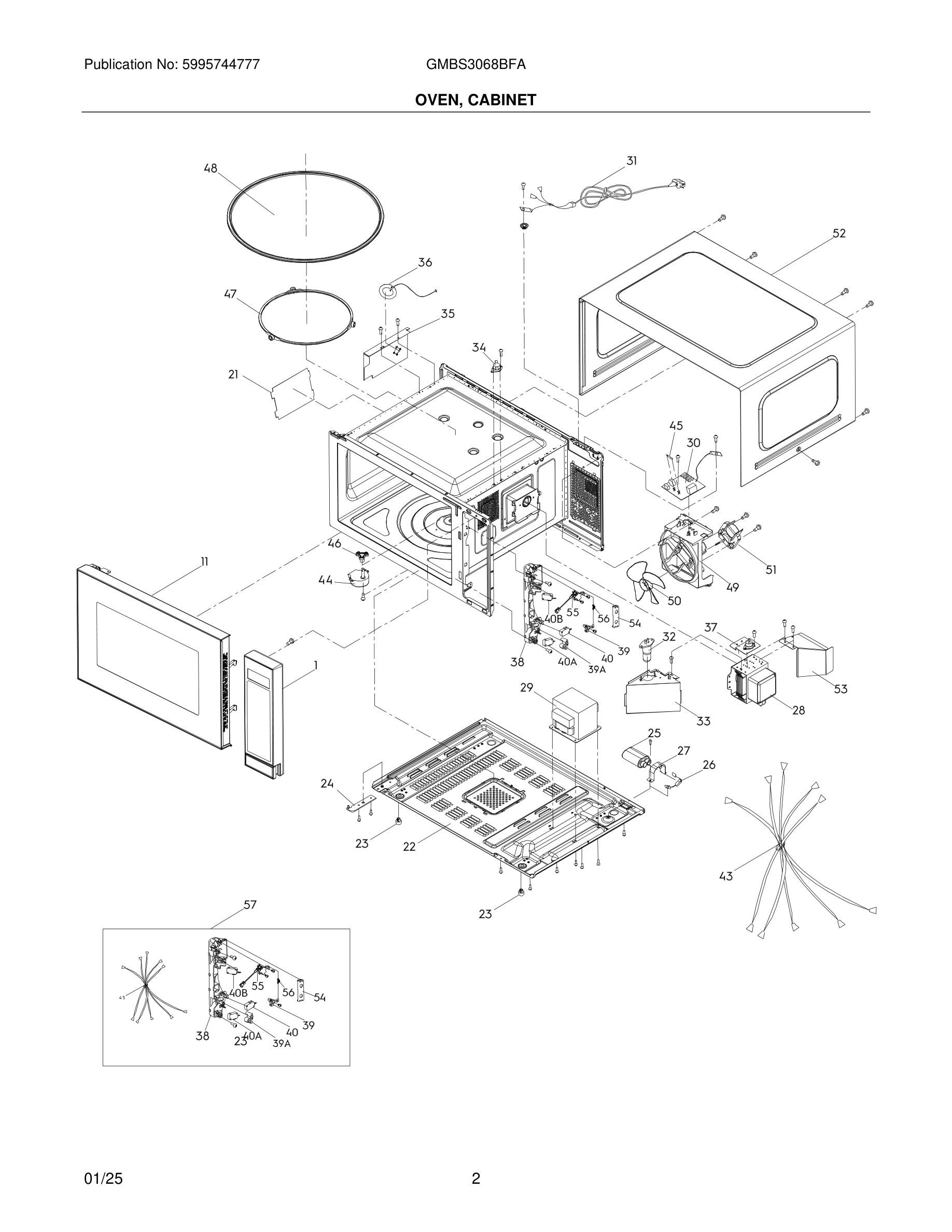

GMBS3068BFA 03 – OVEN, CABINET

GMBS3068BFA 03 – OVEN, CABINET

Written by

in

GMBS3068BFA 03 – OVEN, CABINET

Products

PositionProduct
1#Control Panel, assembly, black
11#Door Assembly, complete, black
215304505675 Frigidaire Microwave Stirrer Blade Cover
225304519319 Frigidaire Base
235304505674 Frigidaire Microwave Foot
245304519320 Frigidaire Microwave Hinge
25#5304513458 Frigidaire Microwave Capacitor
26#DIODE, HIGH VOLTAGE
275304509477 Frigidaire Retainer
28#5304513456 Frigidaire Microwave Magnetron
29#5304513457 Frigidaire Microwave High Voltage Transformer
30#5304525109 Frigidaire Microwave Filter
31#POWER CORD
32#BULB, LAMP
33Cover, wind guide, metal
34#5304520011 Frigidaire Microwave Thermostat
35INSULATOR, HEAT
36#5304509652 Frigidaire Microwave Sensor
37#5304519318 Frigidaire Microwave Thermostat
38Bracket, latch
39AInterlock, lever, lower
39Lever, interlock, lower
40A#5304520019 Frigidaire Microwave Microswitch
40B#5304520021 Frigidaire Microwave Microswitch
40#SWITCH
43#5304520022 Frigidaire Microwave Harness
44#5304532545 Frigidaire Motor
45#5304517874 Frigidaire Fuse
465304519346 Frigidaire Microwave Coupler
475304519347 Frigidaire Microwave Ring Assembly
485304519348 Frigidaire Microwave Tray
495304519349 Frigidaire Guide
505304519350 Frigidaire Microwave Blade
51#5304519351 Frigidaire Microwave Motor
525304519354 Frigidaire Microwave Wrapper
535304513477 Frigidaire Microwave Guide
54Cover, plate
55Door Lock, lower
56Spring, door latch
57INTERLOCK ASSEMBLY
