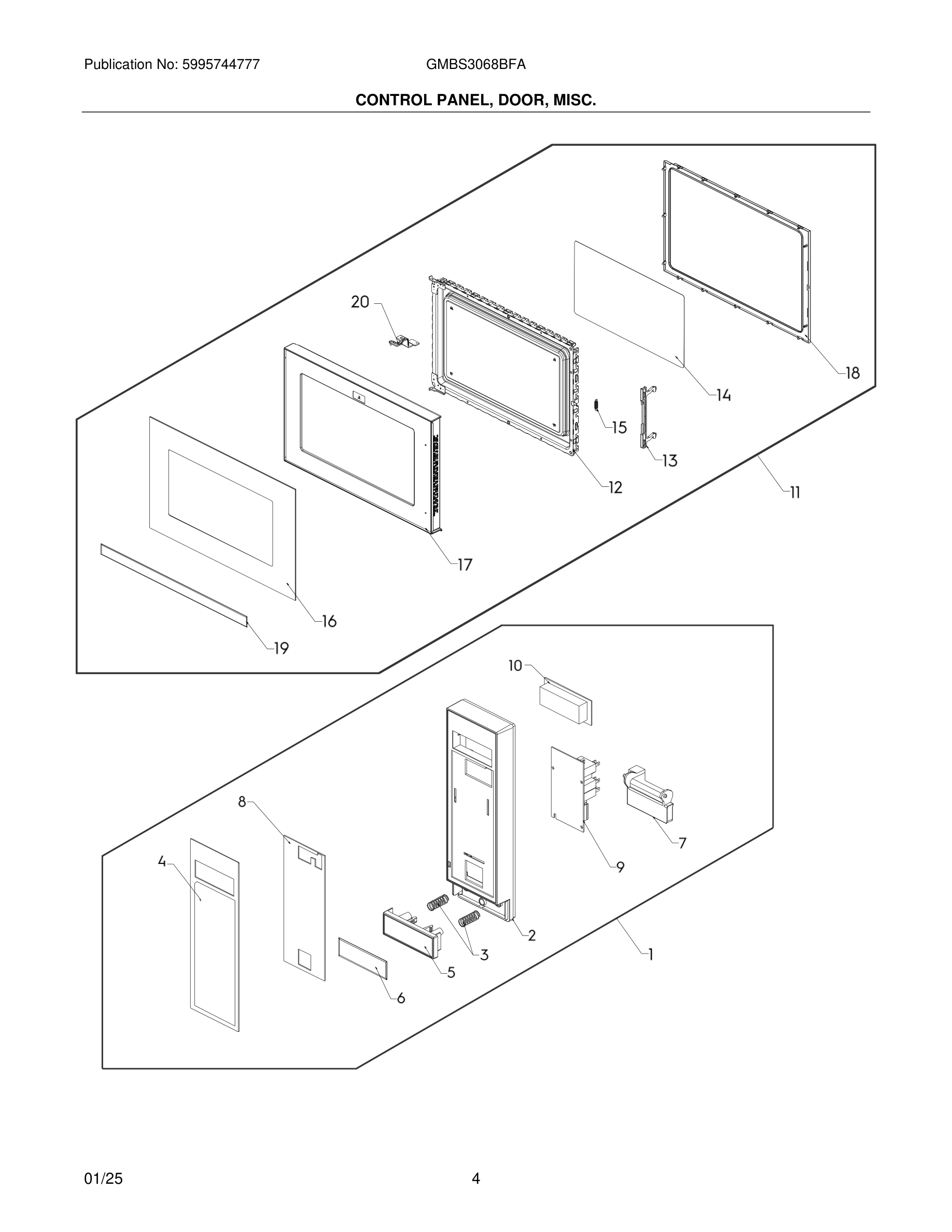

GMBS3068BFA 05 – CONTROL PANEL, DOOR, MISC.

GMBS3068BFA 05 – CONTROL PANEL, DOOR, MISC.

Written by

in

GMBS3068BFA 05 – CONTROL PANEL, DOOR, MISC.

Products

PositionProduct
1#Control Panel, assembly, black
25304532531 Frigidaire Microwave Control Panel
35304519324 Frigidaire Microwave Spring
4Overlay, touch pad, black
55304532533 Frigidaire Button
6TRIM
75304519325 Frigidaire Microwave Lever
8#PCB touch board, user interface
9#PC Board, control, main
10#PC Board, display
11#Door Assembly, complete, black
125304519329 Frigidaire Microwave Frame
13Latch Assembly, door
14Screen, door, inner
155304519334 Frigidaire Microwave Spring
16Overlay, door, black, outer
17Door Panel, outer, black
185304519332 Frigidaire Gasket
19TRIM
205304519333 Frigidaire Microwave Hinge
