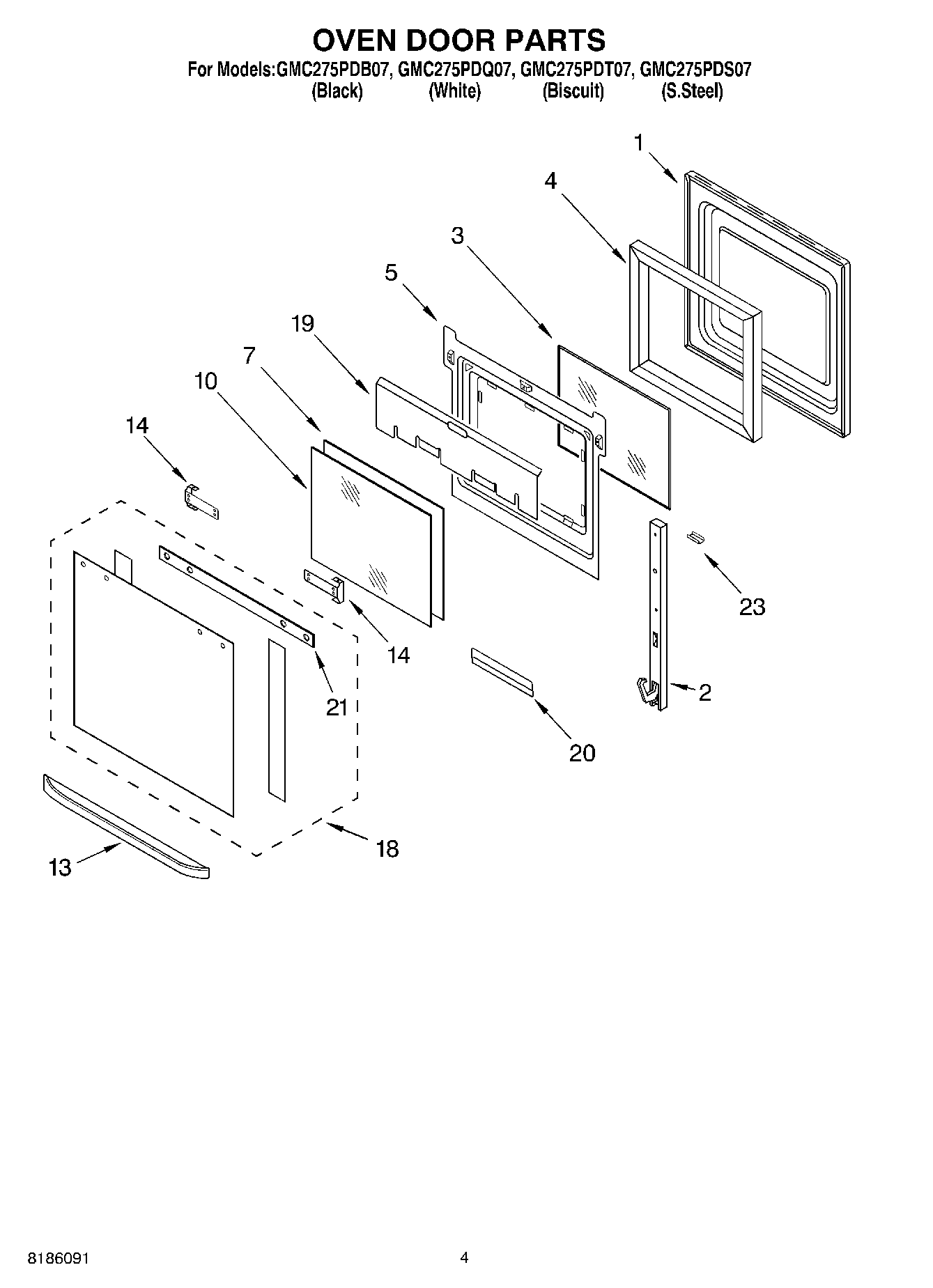

GMC275PDB07 03 – OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Door Liner
2	9760570 Whirlpool Door Hinge
2	9760569 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	Glass, Inner
10	WP4449257 Whirlpool Door Glass
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
13	Door Handle (Biscuit Model)
14	Screw
14	Bracket, Handle
18	Door Glass, Assy (White Model)
18	Door Glass, Assy (Black, Stainless Model)
18	Door Glass, Assy (Black Model)
18	Door Glass Assy (Biscuit)
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
