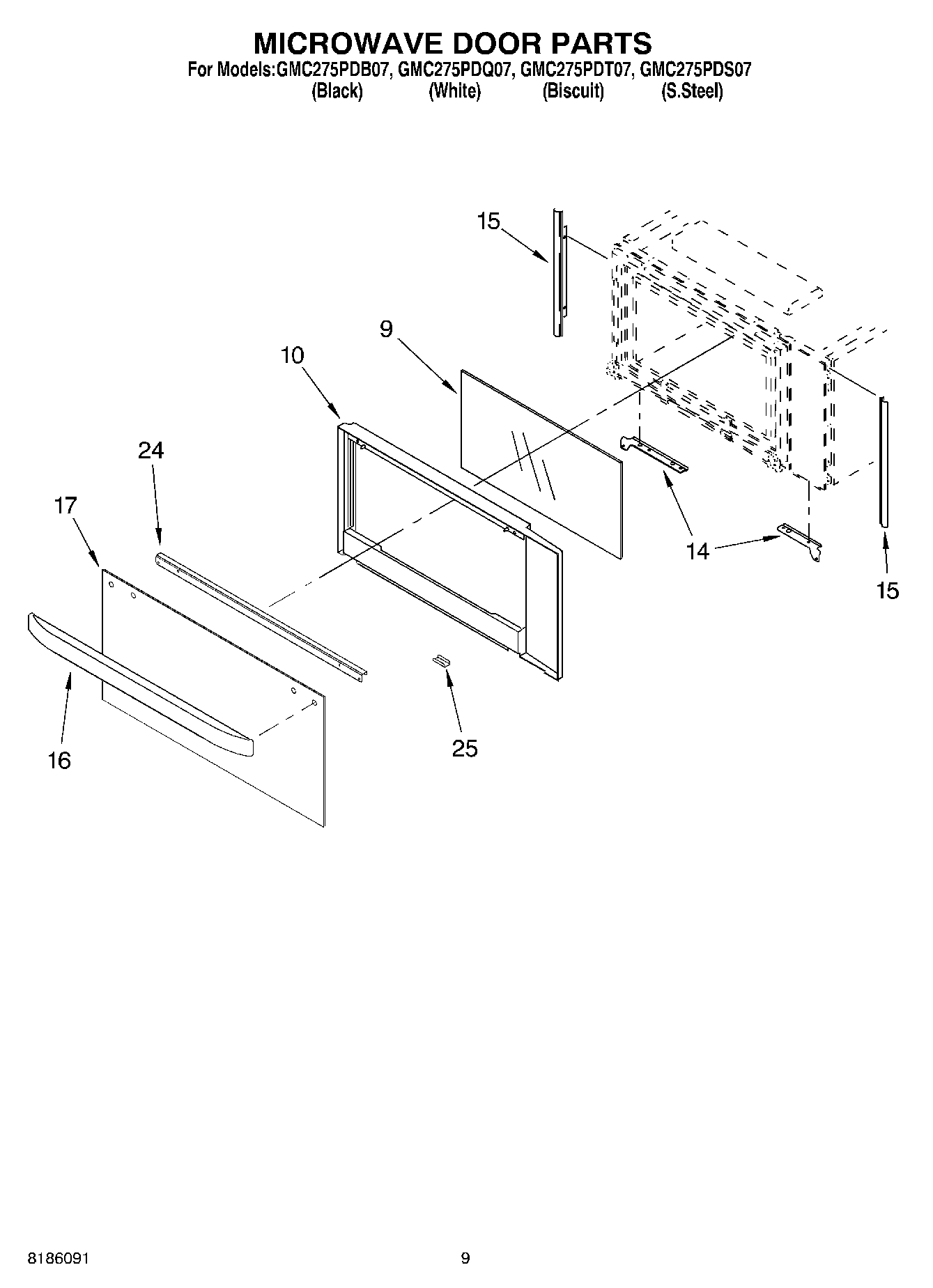

GMC275PDB07 07 – MICROWAVE DOOR PARTSadmin2025-04-26T11:38:53+00:00GMC275PDB07 07 – MICROWAVE DOOR PARTS
Products
| Position | Product |
|---|
| NOTE: The screws and nuts required to attach a part are listed immediately following that part. |
| 9 | Glass, Middle |
| 10 | Frame, Door |
| 14 | Bracket, Mounting (Right Side) |
| 14 | Bracket, Mounting (Left Side) |
| 15 | WP4449809 Whirlpool Screw |
| 15 | Filler, Side |
| 16 | Handle, Door (White Model) |
| 16 | Handle, Door (Black Model) |
| 17 | Glass, Outer (Biscuit Model) |
| 17 | Glass, Outer (Black Stainless) |
| 17 | Glass, Outer (White Model) |
| 17 | Glass, Outer (Black Model) |
| 24 | Screw |
| 24 | Bracket, Handle |
| 25 | Clip, Retainer (Black Model) |
| 25 | Clip, Retainer (White Model) |
