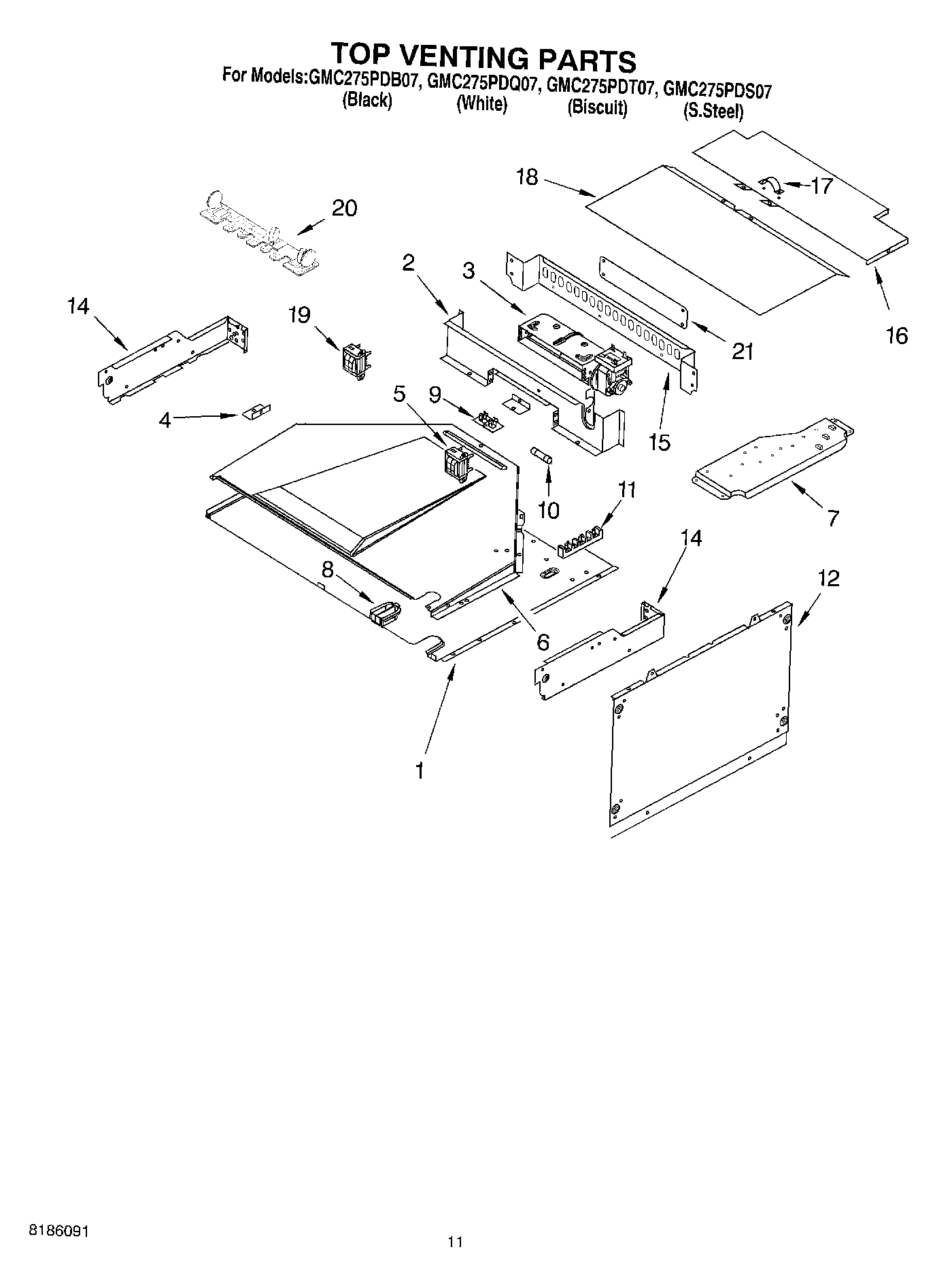

GMC275PDB07 09 – TOP VENTING PARTS, OPTIONAL PARTS

GMC275PDB07 09 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GMC275PDB07 09 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI66909A2
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
16515 Whirlpool Clip
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
1
WPL ARI66908A2
WPL ARI66907A9
WPL ARI66906A9
WPL 8301900
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI66910A6
4450950 Whirlpool Oven Conduit
WPL 591014
Wire (14 Ga. 200 c Brown)
4450800 Whirlpool Oven Screw
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
Wire, 25` Roll (Black 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
Wire, 25` Roll (Red 14 Ga.)
Filler Kit (BL)
WP4449809 Whirlpool Screw
Filler Kit (WH)
WPW10339879 Whirlpool Wire Tie
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
Ground (M/W)
1Cover, Top
1WP4450118 Whirlpool Nut
2Baffle, Blower
3489392 Whirlpool Refrigerator Screw
3Blower
4Bracket, Duct
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Plate, Mounting
8WP112432 Whirlpool Nut Assembly
8Grommet
94454949 Whirlpool Oven Fuse Block
9WP4449154 Whirlpool Screw
10WPW10017410 Whirlpool Fuse
11WP8203546 Whirlpool Terminal Block
11Screw
12Side, Combo
12WP4450038 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
174448664 Whirlpool Oven Mounting Bracket
18Cover, Top Front
19Transformer, Control
20SUPPRESSOR
21Plate, Cover
