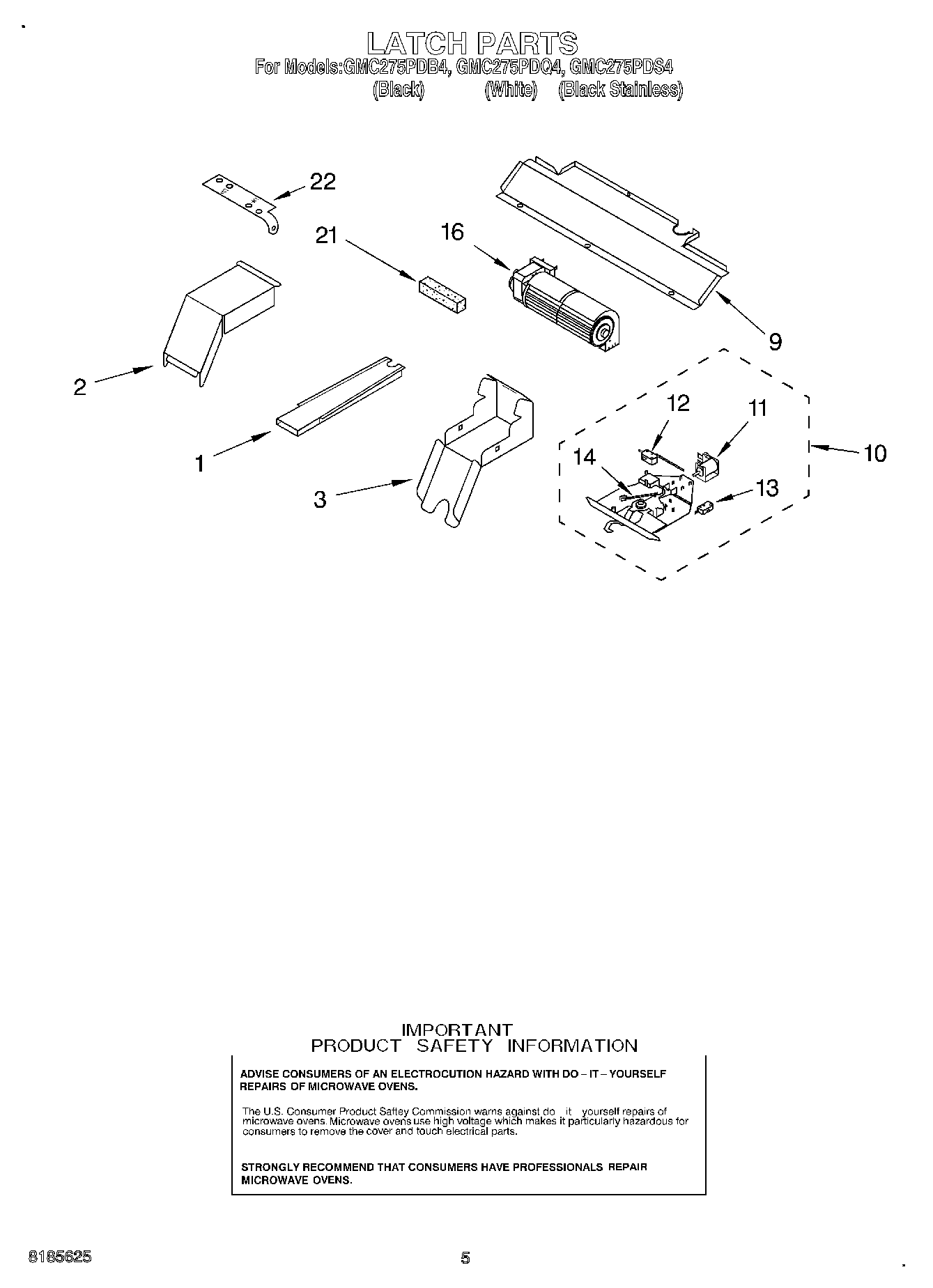

GMC275PDB4 04 – LATCH

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	4455177 Whirlpool Oven Bottom Elbow
9	WP4449809 Whirlpool Screw
9	Baffle, Rear
10	Latch Assembly
11	Solenoid
12	Microswitch N.C.
13	Microswitch
14	Spring, Latch
14	WP4449154 Whirlpool Screw
16	WPW10016550 Whirlpool Blower Cooling Fan
21	W10491987 Whirlpool Foam Seal
22	4455191 Whirlpool Oven Mounting Plate
