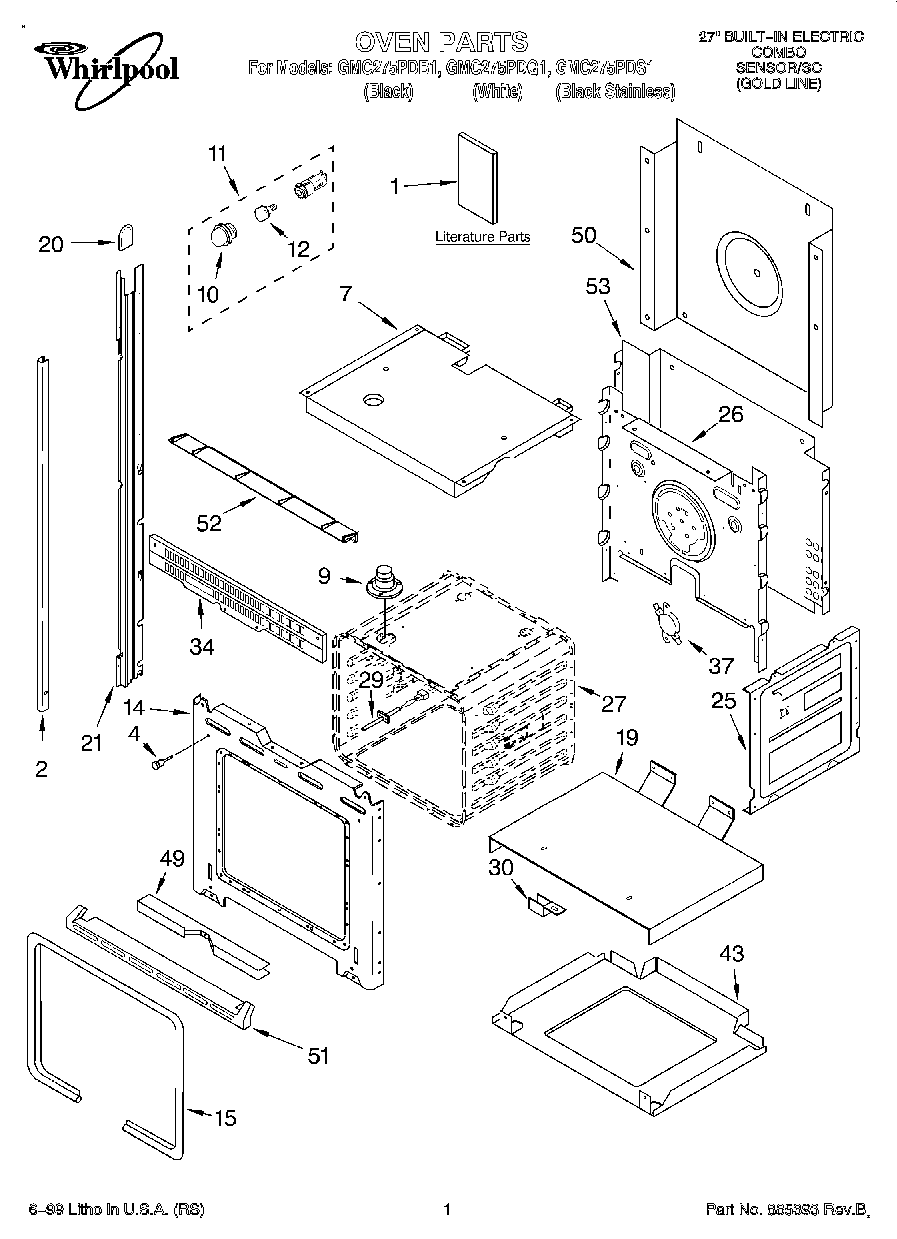

GMC275PDQ1 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Cooking Guide (Label))
1	Literature Parts (Use & Care Guide (Microwave))
1	Literature Parts (Use & Care Guide (Oven))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet)
2	Trim, Side (LH White)
2	WP8281236 Whirlpool Screw
2	Trim, Side (White)
2	Trim, Side (RH Black)
2	Trim, Side (RH White)
2	Trim, Side (LH Black)
4	4448520 Whirlpool Oven Bumper
7	Top, Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Frame, Front
14	Screw
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
20	Cap, Spacer
21	814375 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814376 Whirlpool Oven Rail Mount
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
30	WPL 4449845
34	WP4450038 Whirlpool Screw
34	WP8304106 Whirlpool Oven Vent
37	WP9759243 Whirlpool Thermostat
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
50	WP4449809 Whirlpool Screw
51	Screw, (2)
51	Tri
51	WPL 4448476
52	Vent, Control Panel (Stainless Steel Model)
53	WPL 4451755
53	WPL 4449315
53	WPL 4450364
