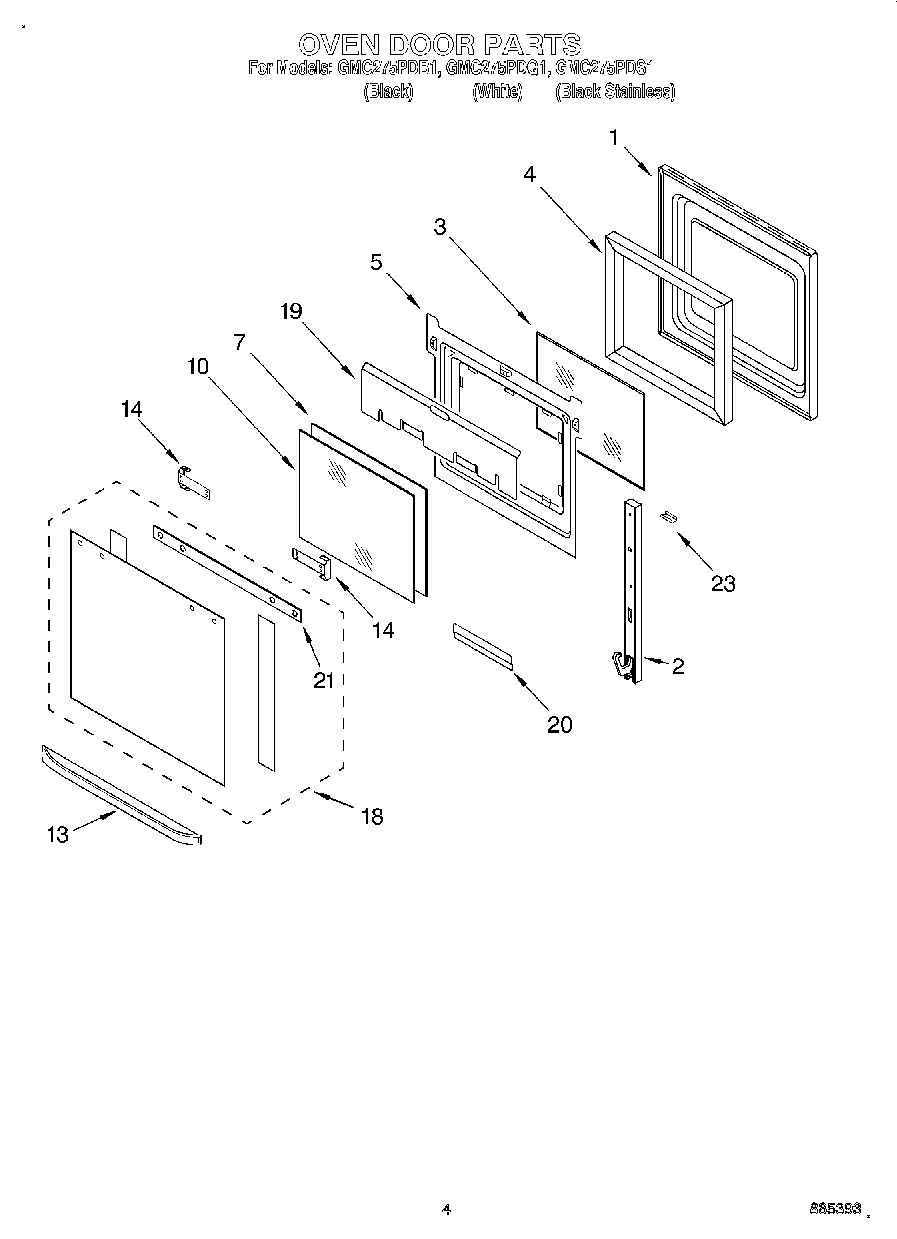

GMC275PDQ1 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4455523 Whirlpool Oven Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
10	WP4449257 Whirlpool Door Glass
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
14	Screw
14	Bracket, Handle
18	Door Glass, Assy (White Model)
18	Door Glass Assy (Black Model)
18	Door Glass, Assy (Black, Stainless Model)
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	WP4449743 Whirlpool Screw
