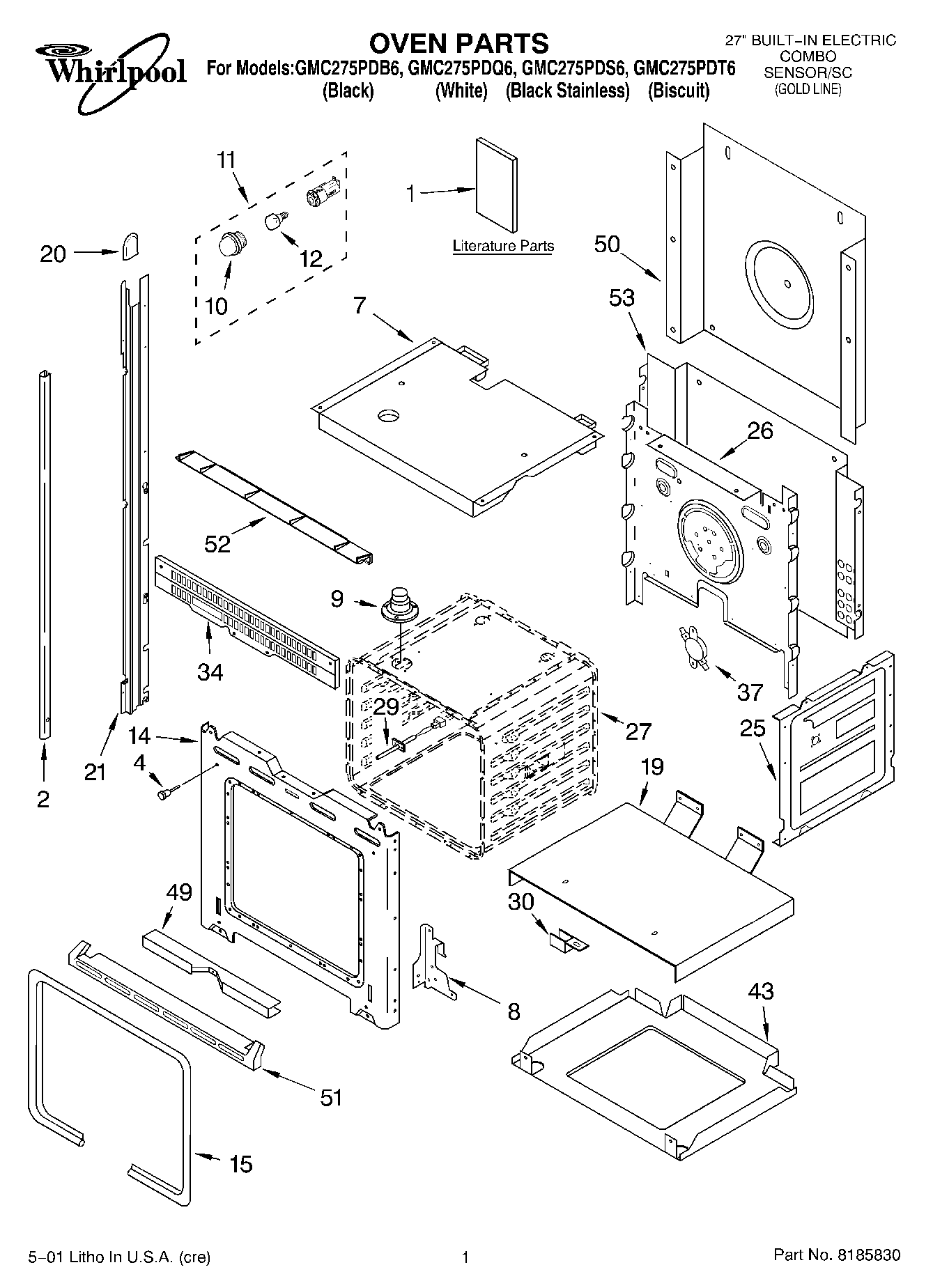

GMC275PDT6 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation Instructions)
1Literature Parts (Cooking Guide (Label))
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Use & Care Guide (Oven))
2Trim, Side (LH Biscuit)
2Trim, Side (RH White)
2Trim, Side (RH Biscuit)
2Trim, Side (RH Black)
2WP694091 Whirlpool Screw
2WP8281236 Whirlpool Screw
2Trim, Side (LH Black)
2Trim, Side (LH White)
2Trim, Side (White)
44448520 Whirlpool Oven Bumper
7Top, Chassis
8WP4455606 Whirlpool Right Hand Hinge
8WP4455605 Whirlpool Left Hand Hinge
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
34WP8304106 Whirlpool Oven Vent
34WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
50WP4449809 Whirlpool Screw
51Tri
51WPL 4452414
51WP3400832 Whirlpool Screw
51WPL 4448476
52Vent, Control Panel (Stainless Steel Model)
53WPL 4449315
53Spacer, Foam
53WPL 4451755
53WPL 4450364
