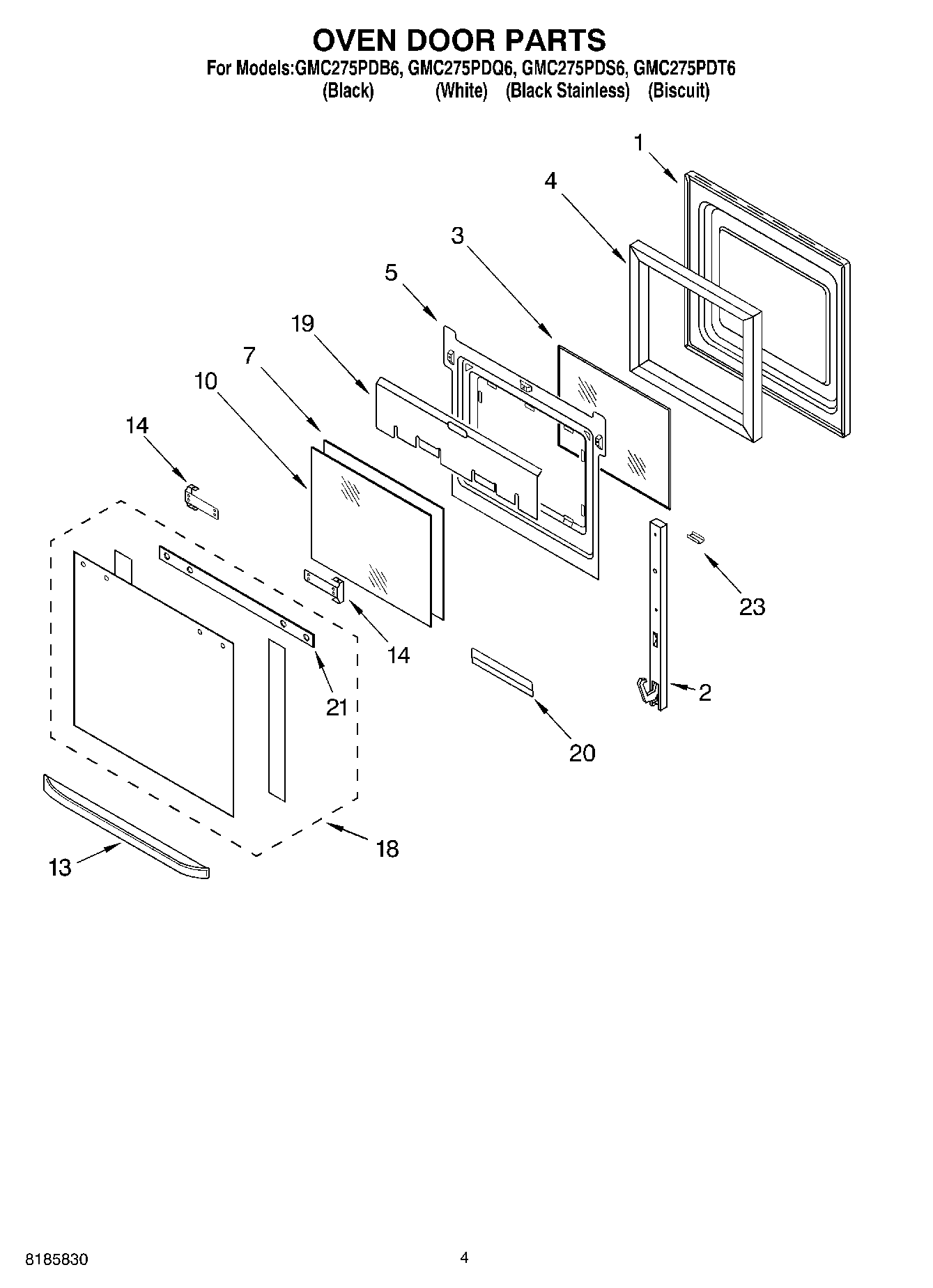

GMC275PDT6 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP9760571 Whirlpool Door Hinge
2	9760569 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	9760570 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	Glass, Inner
10	WP4449257 Whirlpool Door Glass
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
13	Door Handle (Biscuit Model)
14	Screw
14	Bracket, Handle
18	Door Glass Assy (Black Model)
18	Door Glass, Assy (Black, Stainless Model)
18	Door Glass, Assy (White Model)
18	Door Glass Assy (Biscuit)
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
