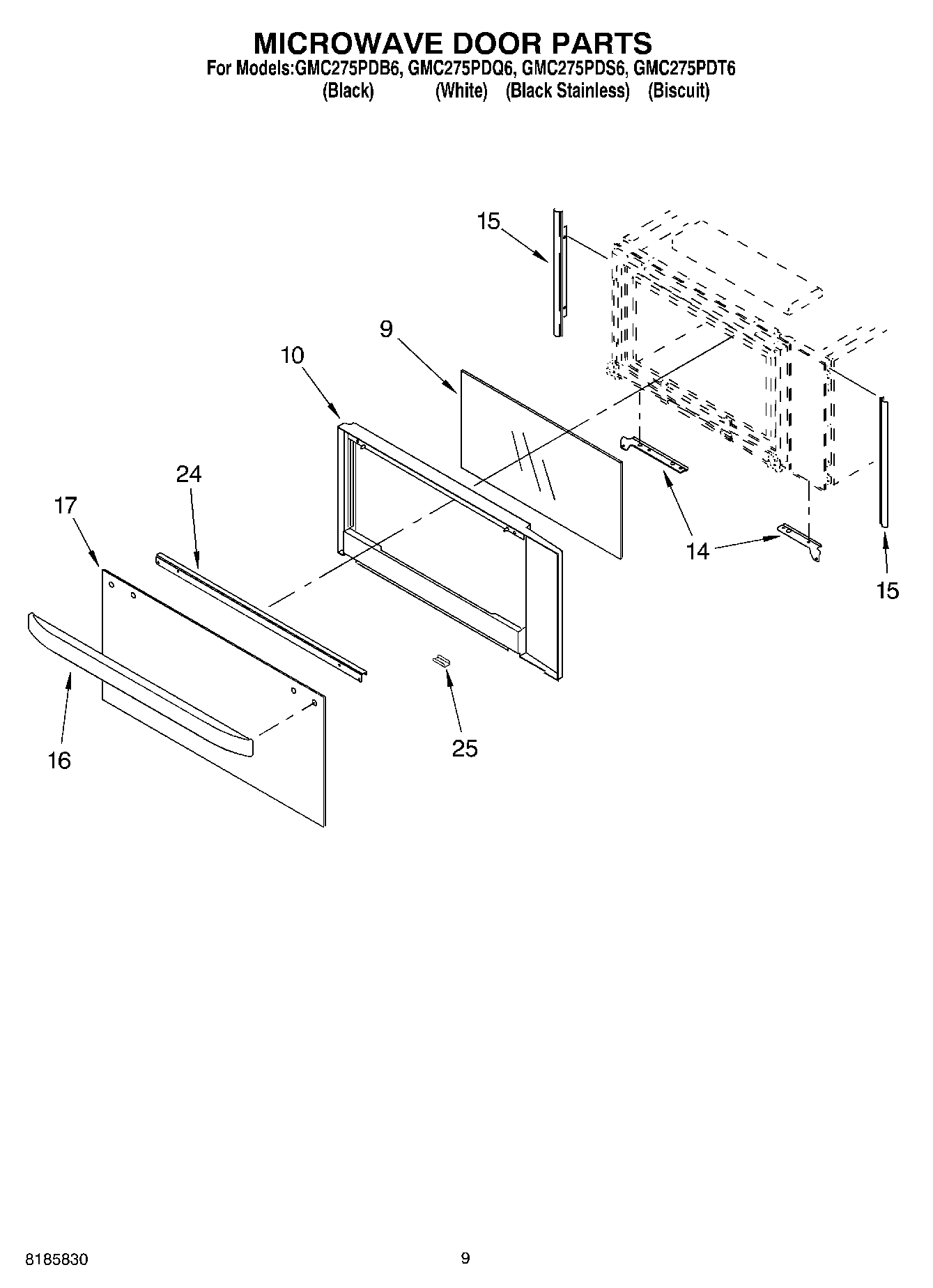

GMC275PDT6 07 – MICROWAVE DOOR

GMC275PDT6 07 – MICROWAVE DOOR

Written by

in

GMC275PDT6 07 – MICROWAVE DOOR

Products

Position	Product
9	Glass, Middle
10	Frame, Door
14	Bracket, Mounting (Right Side)
14	Bracket, Mounting (Left Side)
15	WP4449809 Whirlpool Screw
15	Filler, Side
16	Handle, Door (White Model)
16	Handle, Door (Black Model)
17	Glass, Outer (Black Model)
17	Glass, Outer (White Model)
17	Glass, Outer (Black Stainless)
17	Glass, Outer (Biscuit Model)
24	Screw
24	Bracket, Handle
25	Clip, Retainer (Black Model)
25	Clip, Retainer (White Model)
