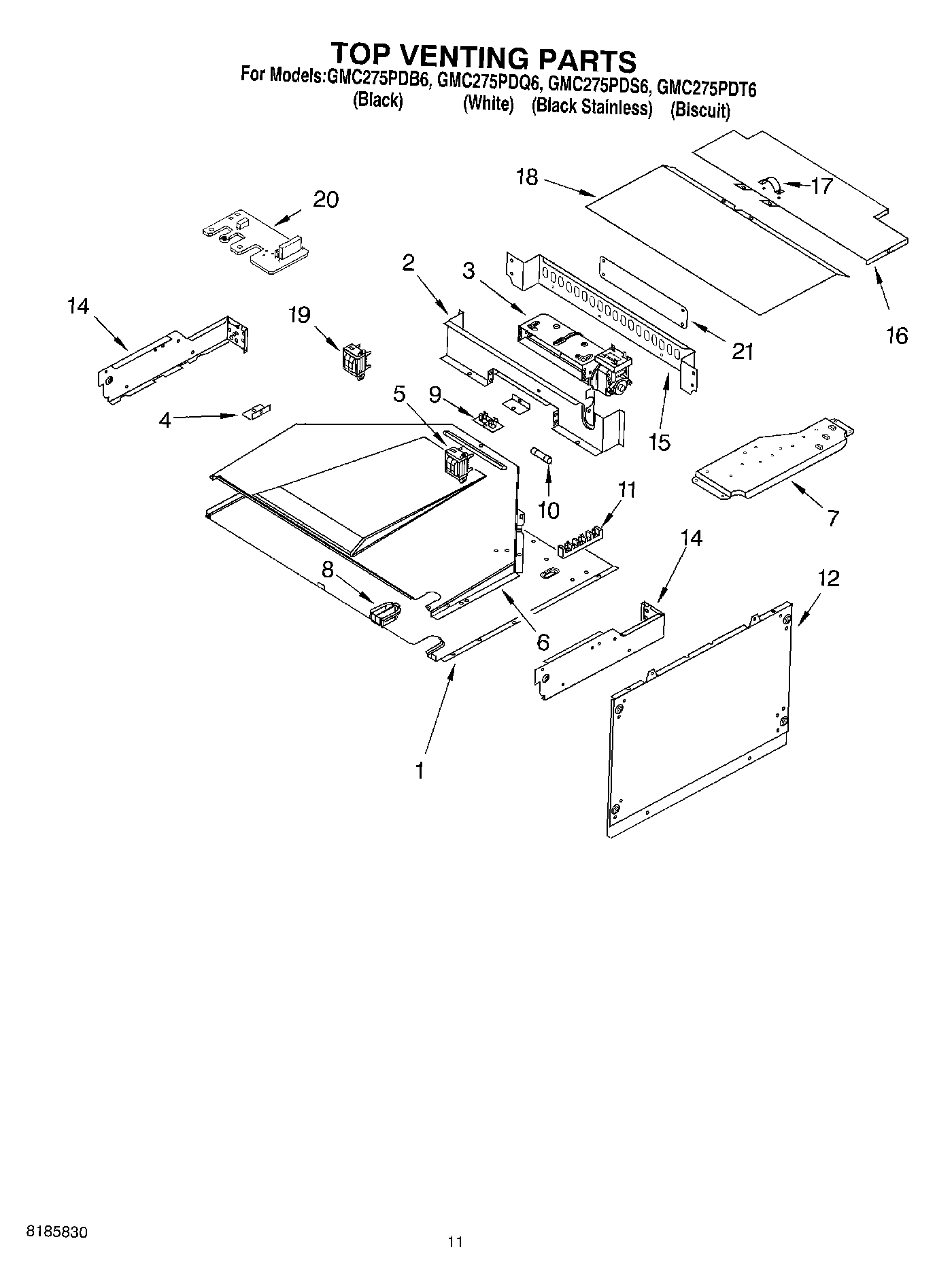

GMC275PDT6 09 – TOP VENTING, OPTIONAL

GMC275PDT6 09 – TOP VENTING, OPTIONAL

Written by

in

GMC275PDT6 09 – TOP VENTING, OPTIONAL

Products

PositionProduct
1WP4450118 Whirlpool Nut
1Cover, Top
2Baffle, Blower
3Blower
3489392 Whirlpool Refrigerator Screw
4Bracket, Duct
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Plate, Mounting
8Grommet
8WP112432 Whirlpool Nut Assembly
9WP4449154 Whirlpool Screw
94454949 Whirlpool Oven Fuse Block
10WPW10017410 Whirlpool Fuse
11Screw
11WP8203546 Whirlpool Terminal Block
12Side, Combo
12WP4450038 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
174448664 Whirlpool Oven Mounting Bracket
18Cover, Top Front
19Transformer, Control
20WP4451985 Whirlpool Noise Filter Board
214450950 Whirlpool Oven Conduit
21Wire, 25“ Roll (White 14 GA.)
214450800 Whirlpool Oven Screw
21WPL 591014
21WPW10339879 Whirlpool Wire Tie
211
21Filler Kit (WH)
21Wire, 25` Roll (Red 14 Ga.)
21Wire, 25` Roll (Black 14 Ga.)
21WP4449809 Whirlpool Screw
21350930 Whirlpool White Spray Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21Harness, Wire (Latch)
21261900 Whirlpool Microwave Spray
21Wire (14 Ga. 200 c Brown)
2118 Ga. 80~c Rating (Red)
21Spacer, Harness
21Plate, Cover
2116515 Whirlpool Clip
21WP482338 Whirlpool Refrigerator Adhesive
21814381 Whirlpool Pin
21WP4448950 Whirlpool Screw
21Filler Kit (BL)
21Ground (M/W)
2172032 Whirlpool Touch Up Paint Black
21242831 Whirlpool Oven Wire
21Wire (12 Ga. 150 c Black)
21285006 Whirlpool Spray
21Wire (14 Ga. 150 c Yellow)
21Wire (14 Ga. 150 c Orange)
21Wire (14 Ga. 150 c Green)
21Wire (14 Ga. 150 c Brown)
21Wire (14 Ga. 150 c Blue)
21WP261869 Whirlpool Microwave Paint
21Ha
