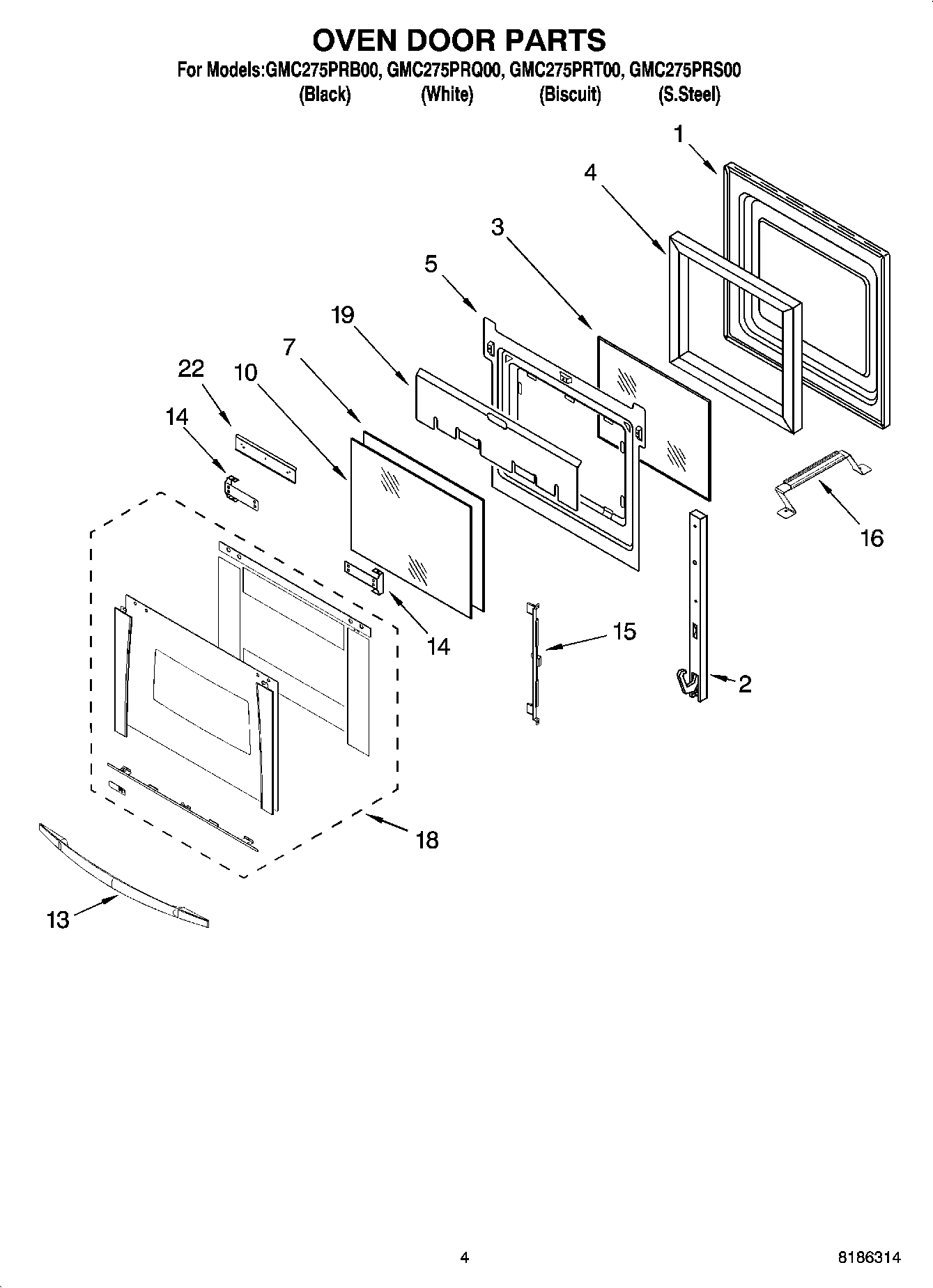

GMC275PRB00 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	HINGE-DOOR
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	Glass, Inner
10	WP9759227 Whirlpool Glass Door
13	Handle, Door (White Model)
13	Handle, Door (Biscuit Model)
13	Handle, Door (S.Steel Model)
13	Handle, Door (Black Model)
14	Bracket, Handle
14	Screw
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
18	Assy., Door Glass (Black Model)
18	Assy., Door Glass (S.Steel Model)
18	Assy., Door Glass (White Model)
18	Assy., Door Glass (Biscuit Model)
19	Shield, Heat
19	WP4449809 Whirlpool Screw
22	WP3400832 Whirlpool Screw
22	Shield, Heat (Bottom)
