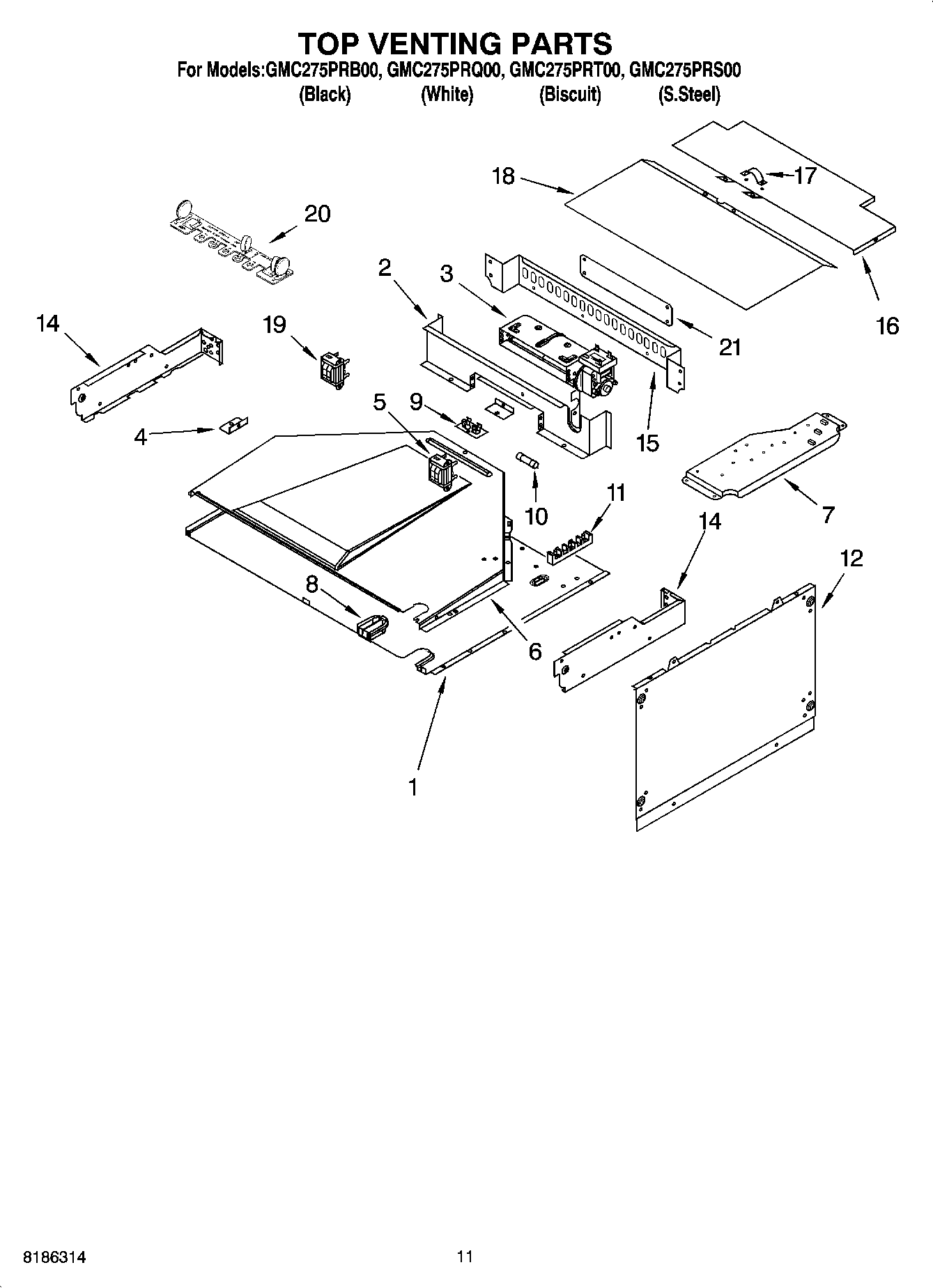

GMC275PRB00 09 – TOP VENTING PARTS, OPTIONAL PARTS

GMC275PRB00 09 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GMC275PRB00 09 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI66987A7
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
16515 Whirlpool Clip
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
WPL ARI66991A3
WPL ARI66990A5
WPL ARI66989A2
Ha
WPL 8303837
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI66988A4
4450950 Whirlpool Oven Conduit
WPL 591014
1
350930 Whirlpool White Spray Paint
WP482338 Whirlpool Refrigerator Adhesive
285006 Whirlpool Spray
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
WPW10339879 Whirlpool Wire Tie
Wire, 25` Roll (Black 14 Ga.)
Filler Kit (BL)
Wire, 25“ Roll (White 14 GA.)
Filler Kit (WH)
4450800 Whirlpool Oven Screw
Ground (M/W)
Wire, 25` Roll (Red 14 Ga.)
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
72032 Whirlpool Touch Up Paint Black
1WP4450118 Whirlpool Nut
1Cover, Top
2Baffle, Blower
3Blower
3489392 Whirlpool Refrigerator Screw
4Bracket, Duct
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Plate, Mounting
8Grommet
8WP112432 Whirlpool Nut Assembly
94454949 Whirlpool Oven Fuse Block
9WP4449154 Whirlpool Screw
10WPW10017410 Whirlpool Fuse
11Screw
11WP8203546 Whirlpool Terminal Block
12WP4450038 Whirlpool Screw
12Side, Combo
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
174448664 Whirlpool Oven Mounting Bracket
18Cover, Top Front
19Transformer, Control
20SUPPRESSOR
21Plate, Cover
