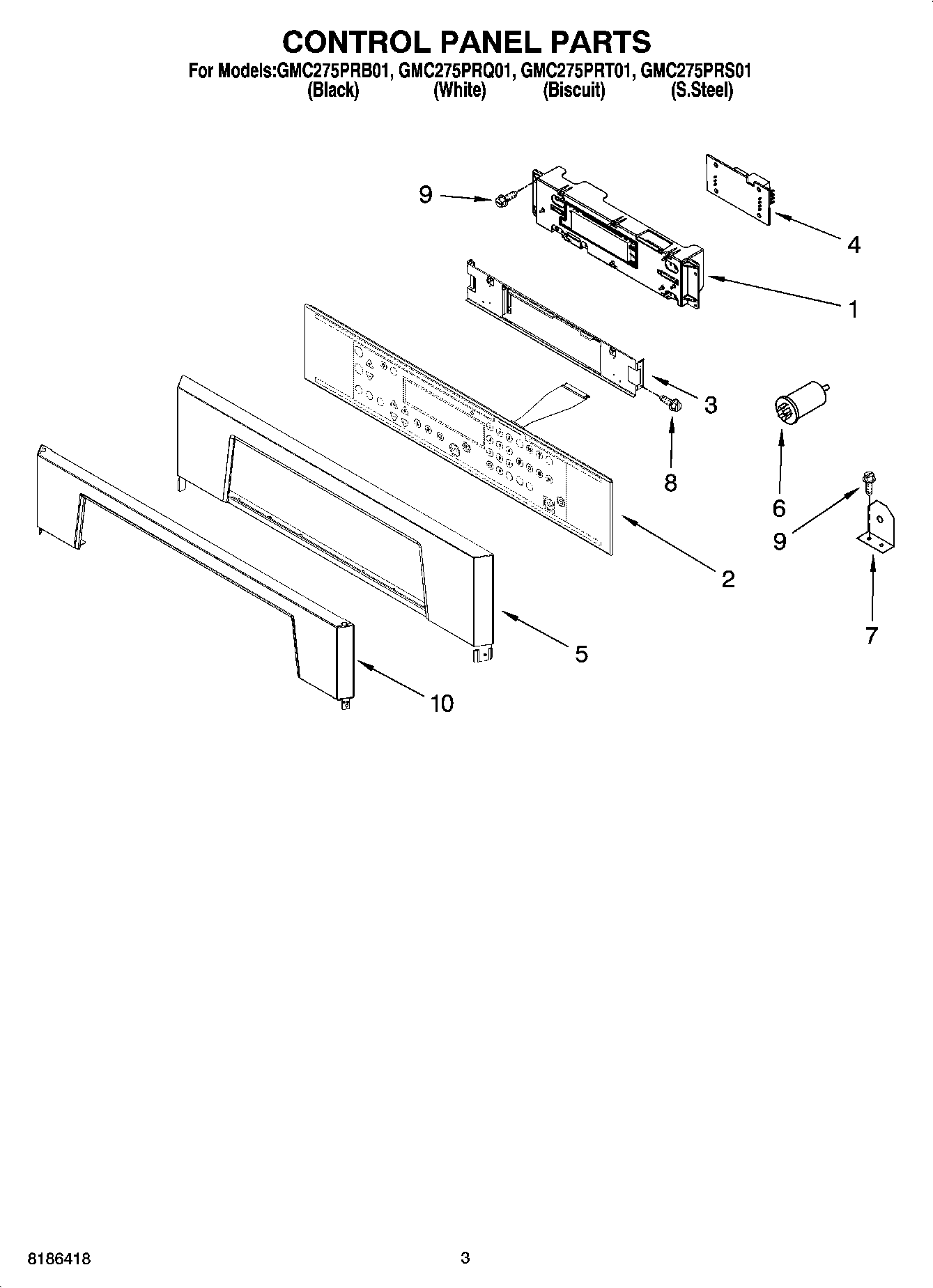

GMC275PRS01 02 – CONTROL PANEL PARTS

GMC275PRS01 02 – CONTROL PANEL PARTS

Written by

in

GMC275PRS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Assy, Control
2Assy, Switch (Biscuit Model)
2Assy, Switch (White Model)
2Assy, Switch (Black & Steel Mdl)
3Control, Bracket
4Latch, Sister Board
5Control Panel (Biscuit Model)
5WP8302844 Whirlpool Control Panel
5Control Panel (White Model)
6Filter
7Bracket, Filter
8WP4449745 Whirlpool Screw
9WP4449809 Whirlpool Screw
10Trim-Panel (Use on S.Steel model only)
