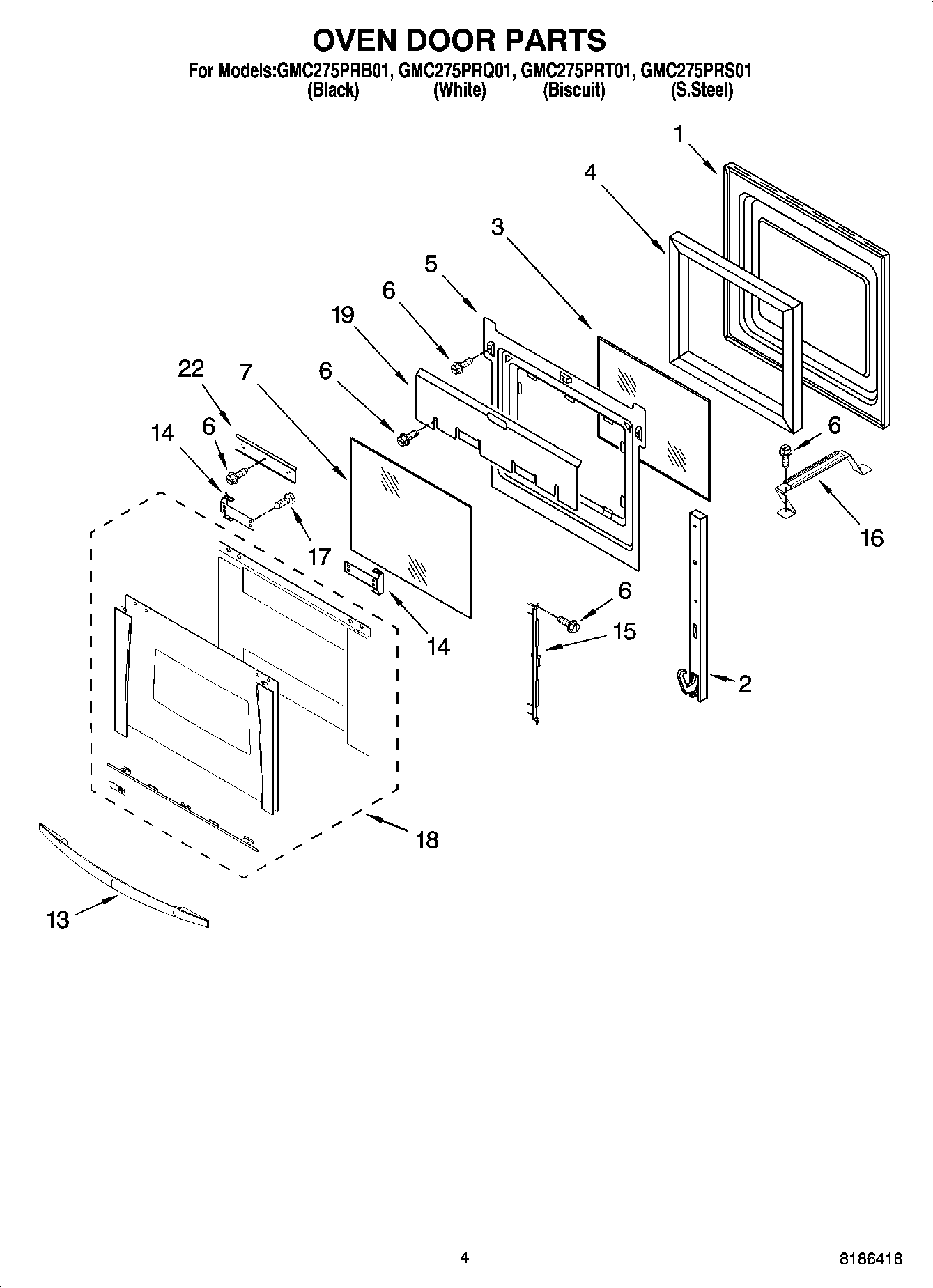

GMC275PRS01 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	WP9760576 Whirlpool Door Hinge (Left)
2	HINGE-DOOR
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
6	WP4449809 Whirlpool Screw
7	Glass, Inner
13	Handle, Door (S.Steel Model)
13	Handle, Door (Biscuit Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Bracket, Handle
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	WP3400832 Whirlpool Screw
18	Assy., Door Glass (White Model)
18	Assy., Door Glass (Black Model)
18	Assy., Door Glass (S.Steel Model)
18	Assy., Door Glass (Biscuit Model)
19	Shield, Heat
22	Shield, Heat (Bottom)
