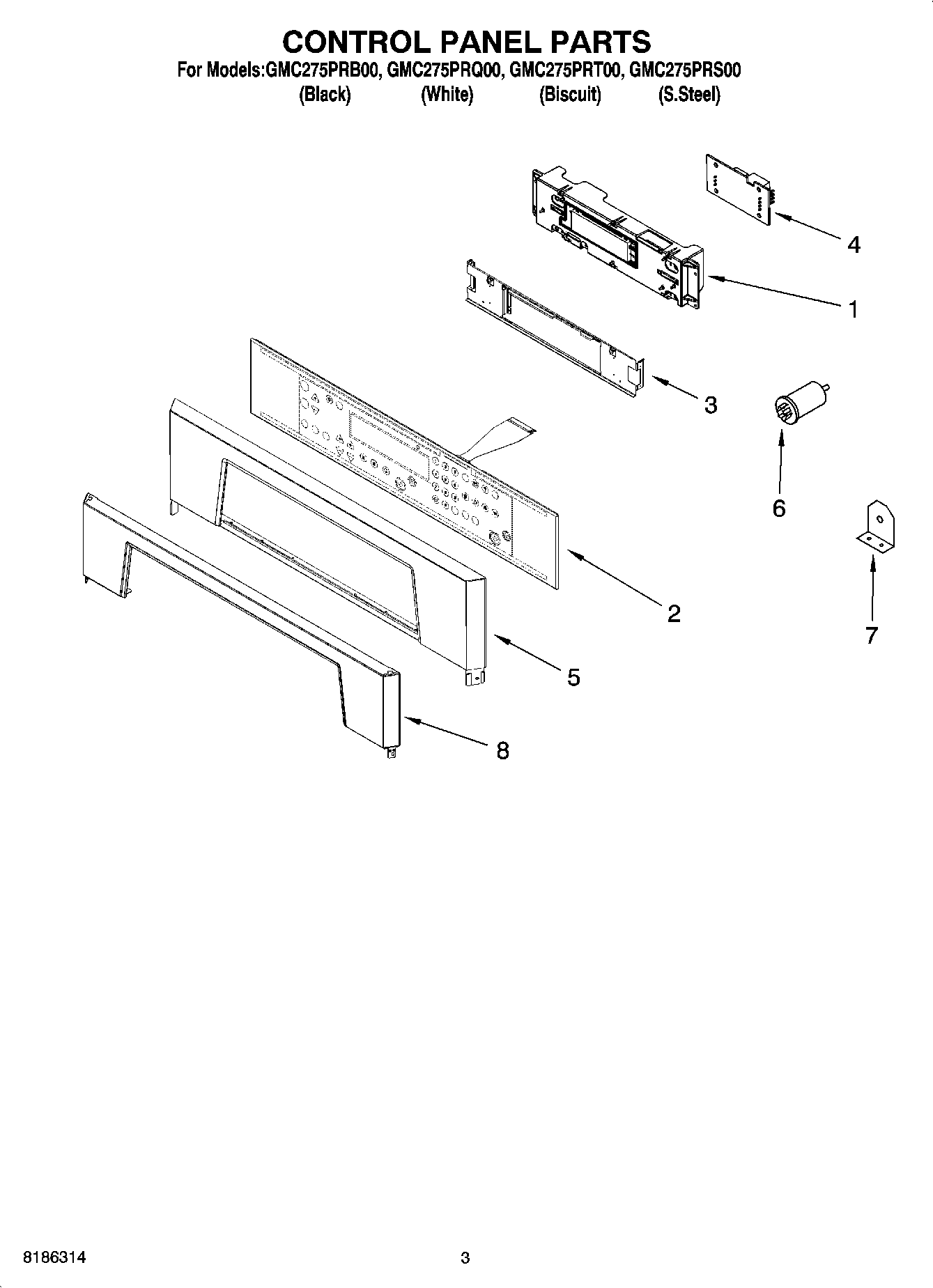

GMC275PRT00 02 – CONTROL PANEL PARTS

GMC275PRT00 02 – CONTROL PANEL PARTS

Written by

in

GMC275PRT00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Assy, Control
2Assy, Switch (White Model)
2Assy, Switch (Biscuit Model)
2Assy, Switch (Black & Steel Mdl)
3Control, Bracket
3WP3400832 Whirlpool Screw
3WP4449745 Whirlpool Screw
4Latch, Sister Board
5WP8302844 Whirlpool Control Panel
5Control Panel (White Model)
5Control Panel (Biscuit Model)
6Filter
7Bracket, Filter
8Trim-Panel (Use on S.Steel model only)
