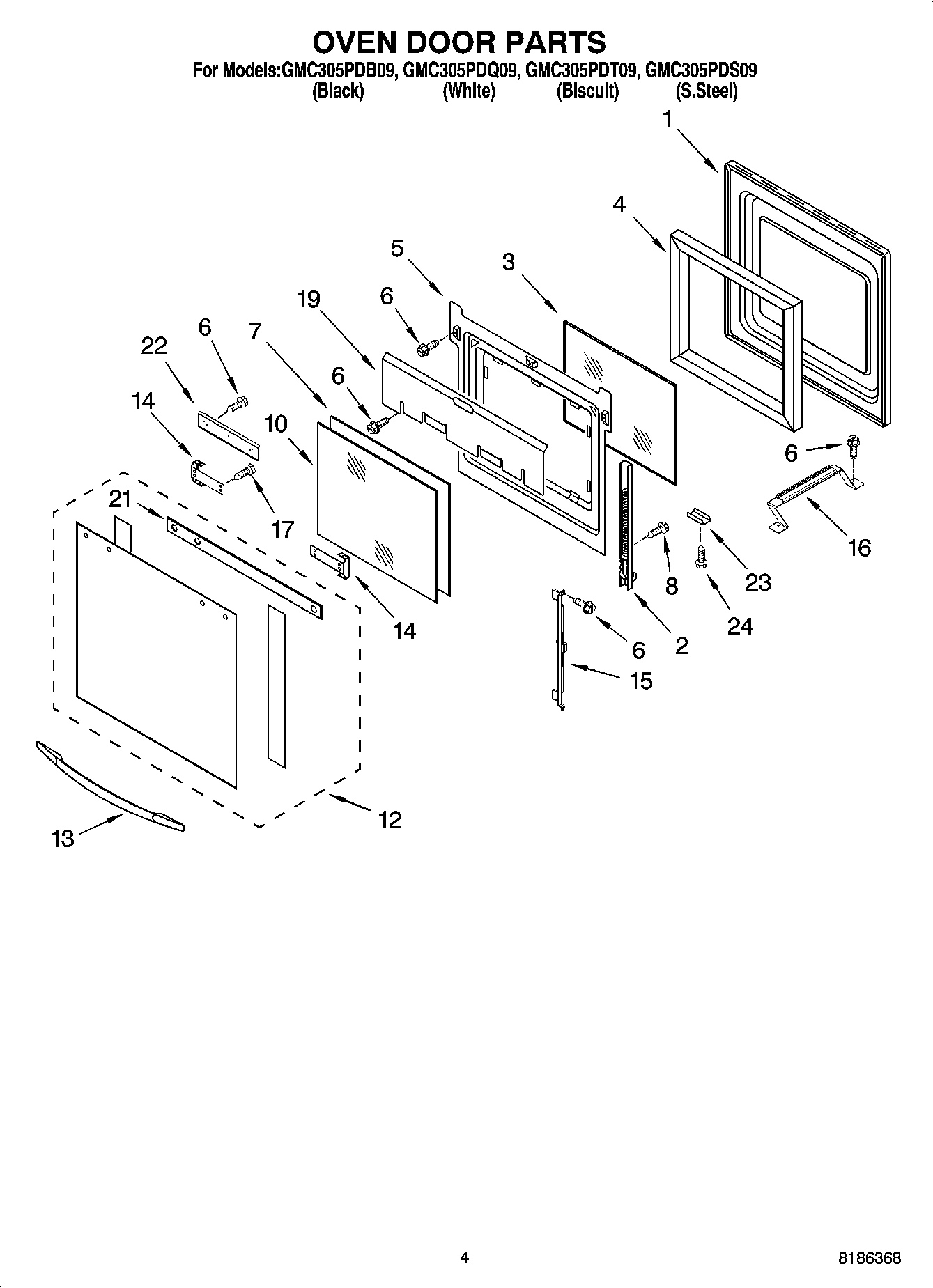

GMC305PDQ09 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
2	Hinge, Door (R.Side)
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	WP4449809 Whirlpool Screw
7	WP9759225 Whirlpool Inner Door Glass
8	WP4449743 Whirlpool Screw
10	Glass, Inner
12	WP9759074 Whirlpool Outer Door Glass
12	Door Glass (Biscuit)
12	Door Glass (White Model)
12	WP9759641 Whirlpool Outer Door Glass
13	Door Handle (White Model)
13	Door Handle (Black Model)
13	Door Handle (Biscuit)
14	Bracket, Handle
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
17	Screw
19	Shield, Heat
21	Seal, Door Top
22	4457114 Whirlpool Oven Heat Shield
23	Clip, Retainer (Black Model)
23	Retainer, Clip (Almond Model)
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	WP3400832 Whirlpool Screw
