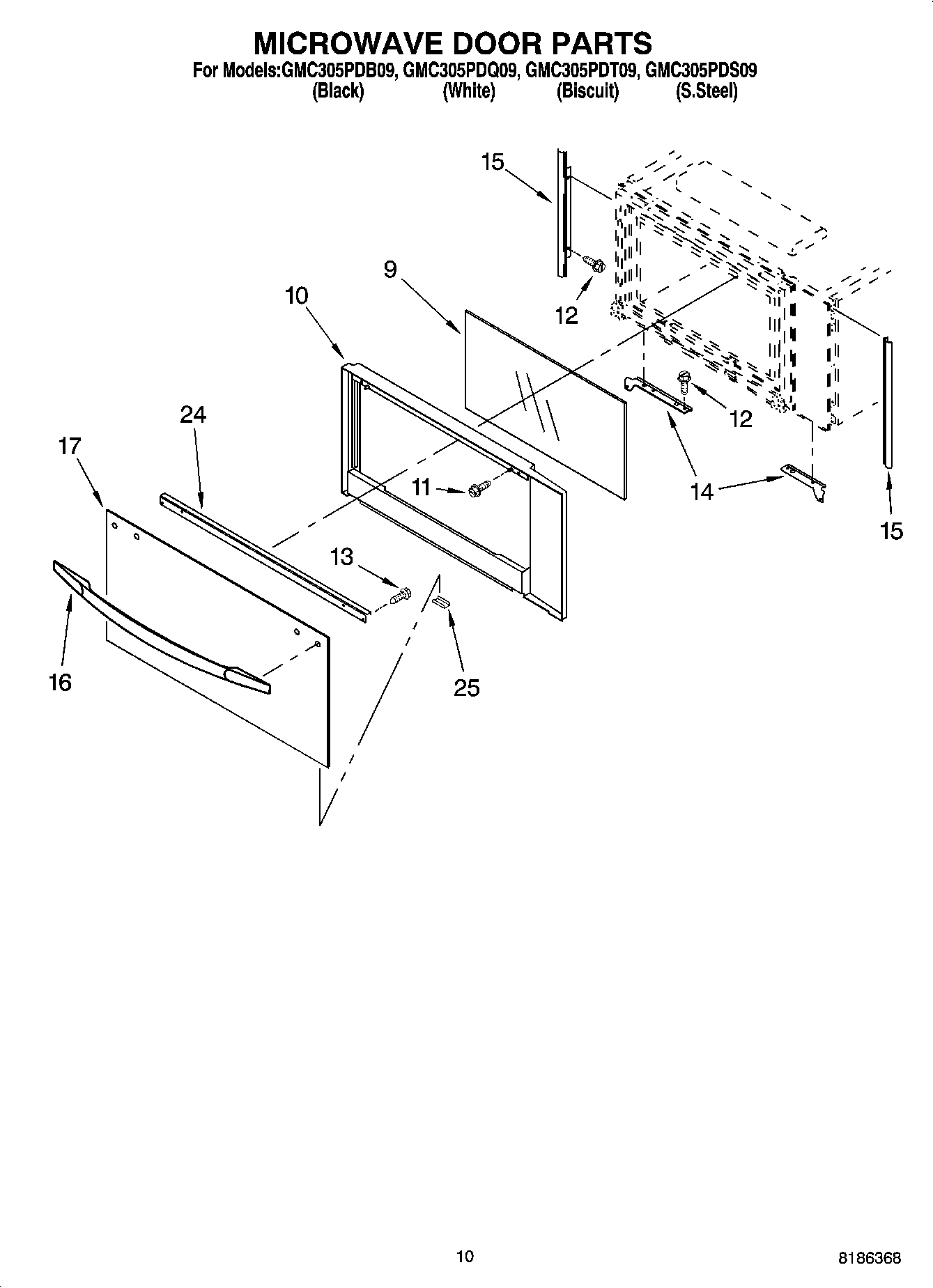

GMC305PDQ09 08 – MICROWAVE DOOR PARTS

Products

Position	Product
9	Glass, Middle
10	WP8303556 Whirlpool Microwave Door Frame
11	WP4450038 Whirlpool Screw
12	WP4449809 Whirlpool Screw
13	Screw
14	Bracket, Mounting (Left Side)
14	Bracket, Mounting (Right Side)
15	Filler, Side
15	Filler, Side (Left Side)
16	Door Handle (Biscuit)
16	Door Handle (White Model)
16	Door Handle (Black Model)
17	Glass, Outer (Black)
17	Glass, Outer (White)
17	Glass, Outer (Black Stainless)
17	Glass, Outer (Biscuit)
24	Bracket, Handle
25	RETAINER,GLASS CLIP (BISCUIT)
25	Clip, Retainer (White Model)
25	Clip, Retainer (Black Model)
