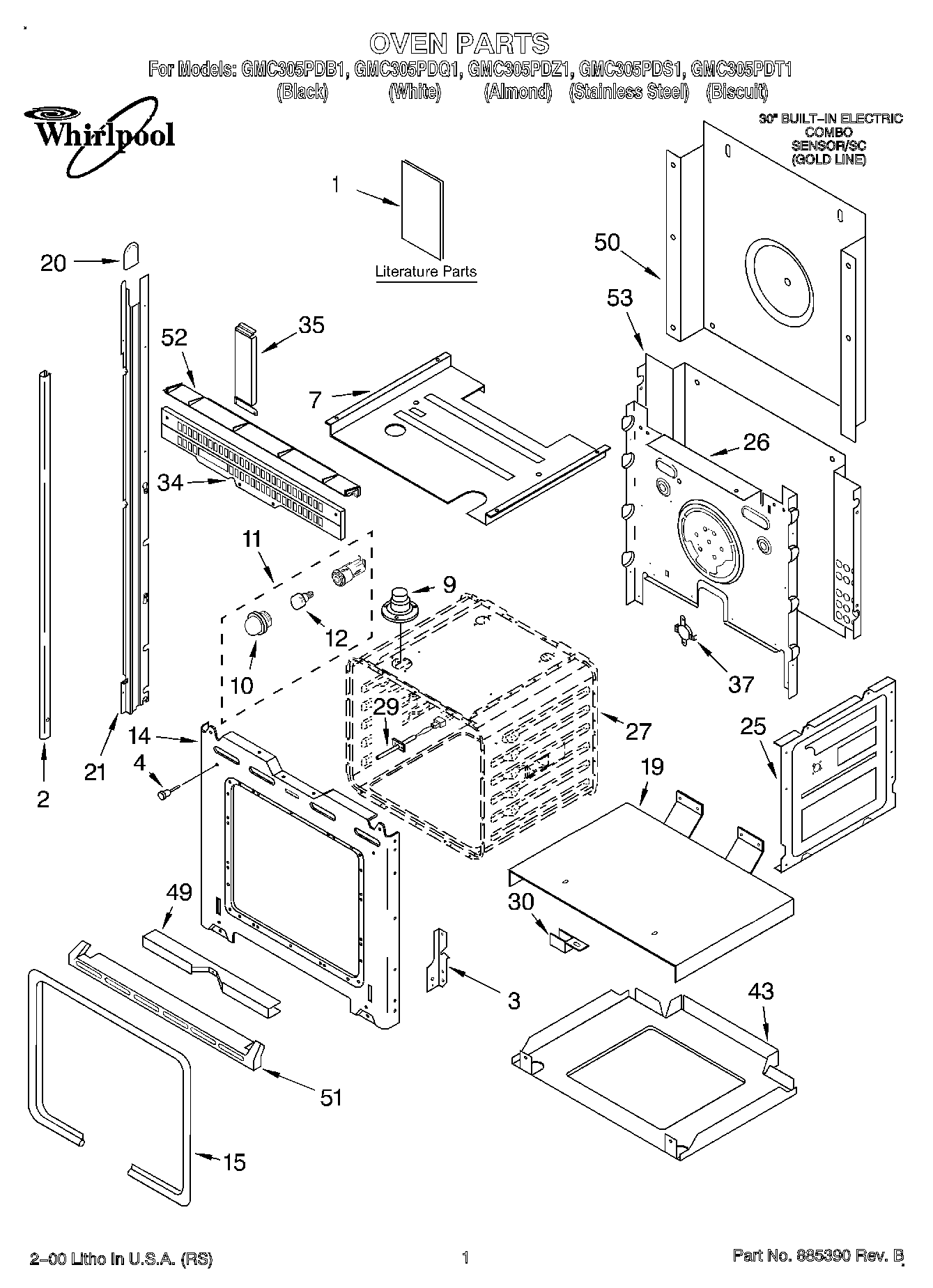

GMC305PDQ1 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Use & Care Guide (Microwave))
1	Literature Parts (Cooking Guide (Label))
1	Literature Parts (Use & Care Guide (Oven))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet)
2	Trim, Side (LH Biscuit)
2	Trim, Side (LH Almond)
2	Trim, Side (RH Almond)
2	Trim, Side (RH Biscuit)
2	Trim, Side (LH White)
2	Trim, Side (LH Black)
2	Trim, Side (RH White)
2	Trim, Side (RH Black)
2	Trim, Side (White)
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Frame, Front
14	Screw
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	814376 Whirlpool Oven Rail Mount
21	814375 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
30	WPL 4449845
34	WPL 4451667
34	WP4450038 Whirlpool Screw
35	Extension Filler
37	WP9759243 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4449809 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4452415
51	WPL 4448478
51	WPL 4448862
51	WPL 4448477
52	Vent-Cntrl Panel
53	W11684730 Whirlpool Insulation
53	WPL 4450365
53	WPL 4451756
