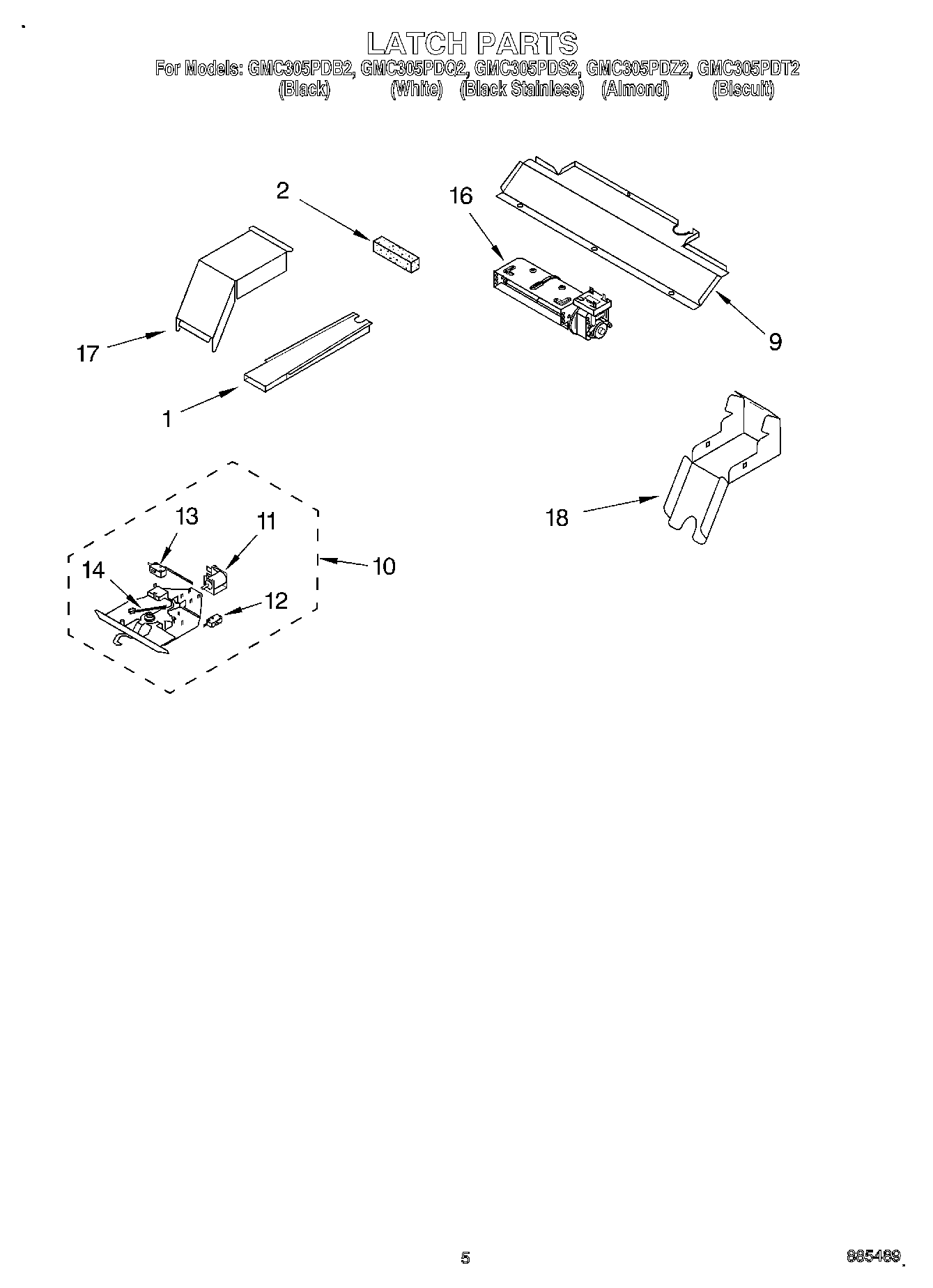

GMC305PDQ2 04 – LATCH

Written by

Products

Position	Product
1	Screw
1	4451759 Whirlpool Oven Exhaust Vent
2	W10491987 Whirlpool Foam Seal
9	WP4449154 Whirlpool Screw
9	Baffle, Rear
10	Latch Assembly
11	Solenoid
12	Micro Switch N.C.
13	Microswitch
14	Spring, Latch
16	WPW10016550 Whirlpool Blower Cooling Fan
17	4455178 Whirlpool Oven Top Elbow
18	4455177 Whirlpool Oven Bottom Elbow
