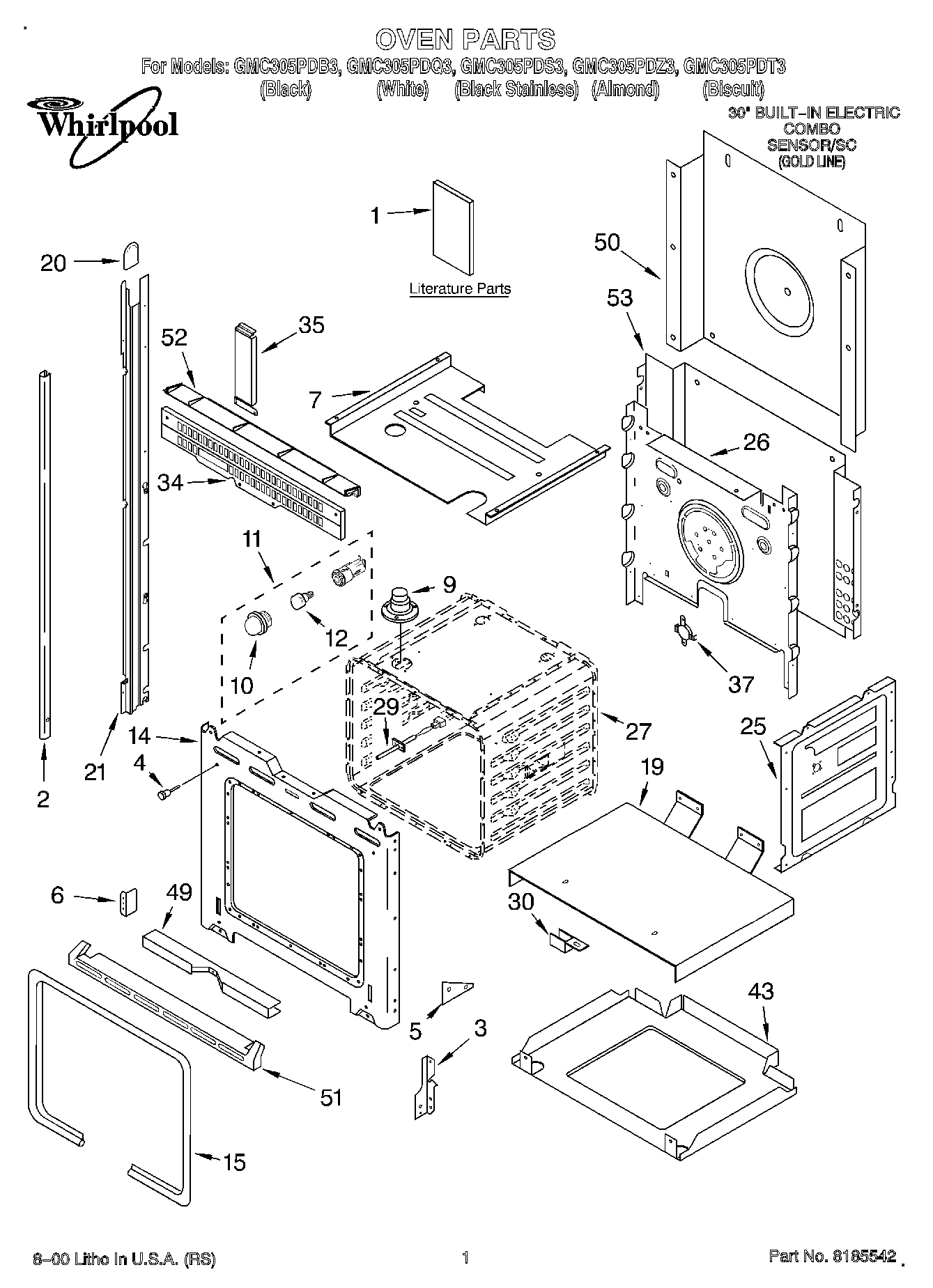

GMC305PDQ3 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Cooking Guide (Label))
1	Literature Parts (Use & Care Guide (Microwave))
1	Literature Parts (Use & Care Guide (Oven))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet (Oven))
2	Trim, Side (RH Biscuit)
2	Trim, Side (RH White)
2	Trim, Side (LH Black)
2	Trim, Side (RH Black)
2	Trim, Side (LH White)
2	Trim, Side (RH Almond)
2	Trim, Side (LH Almond)
2	Trim, Side (LH Biscuit)
2	Trim, Side (White)
3	Reciever, Hinge (Right Hand)
3	Reciever, Hinge (Left Hand)
4	4448520 Whirlpool Oven Bumper
5	WP4455509 Whirlpool Support Bracket
6	Bracket, Support
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Screw
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	814375 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814376 Whirlpool Oven Rail Mount
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WPL 4449845
34	WP4450038 Whirlpool Screw
34	WPL 4451667
35	Extension Filler
37	WP9759243 Whirlpool Thermostat
43	WPL 4455530
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4449809 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4448477
51	WPL 4448478
51	WPL 4448862
51	WPL 4452415
52	Vent-Cntrl Panel
53	WPL 4450365
53	W11684730 Whirlpool Insulation
53	WPL 4451756
