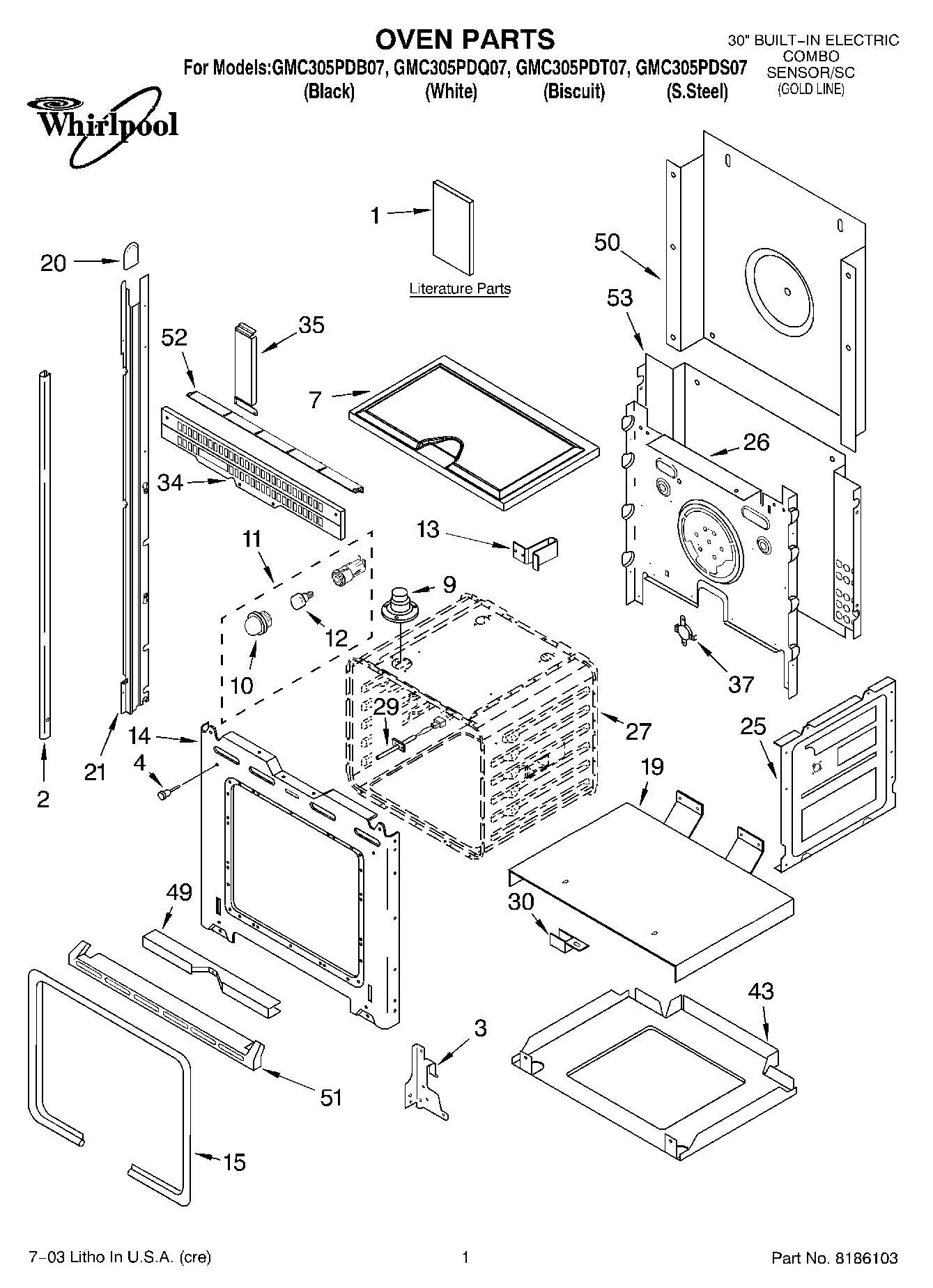

GMC305PDS07 01 – OVEN PARTS

GMC305PDS07 01 – OVEN PARTS

Written by

in

GMC305PDS07 01 – OVEN PARTS

Products

PositionProduct
WPL ARI67097A6
1Safer Cooking Tips
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Cooking Guide (Label))
2Trim, Side (LH Black)
2Trim, Side (RH Black)
2Trim, Side (LH White)
2Trim, Side (RH White)
2Trim, Side (RH Biscuit)
2Trim, Side (LH Biscuit)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Bracket, Combo Chassis
14Frame, Front
14Screw
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
34WP4450038 Whirlpool Screw
34WPL 4451667
35Extension Filler
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4448477
51WPL 4448478
51WPL 4452415
52Vent-Cntrl Panel
53WPL 4451756
53WPL 4450365
53W11684730 Whirlpool Insulation
53WPL ARI67099A8
