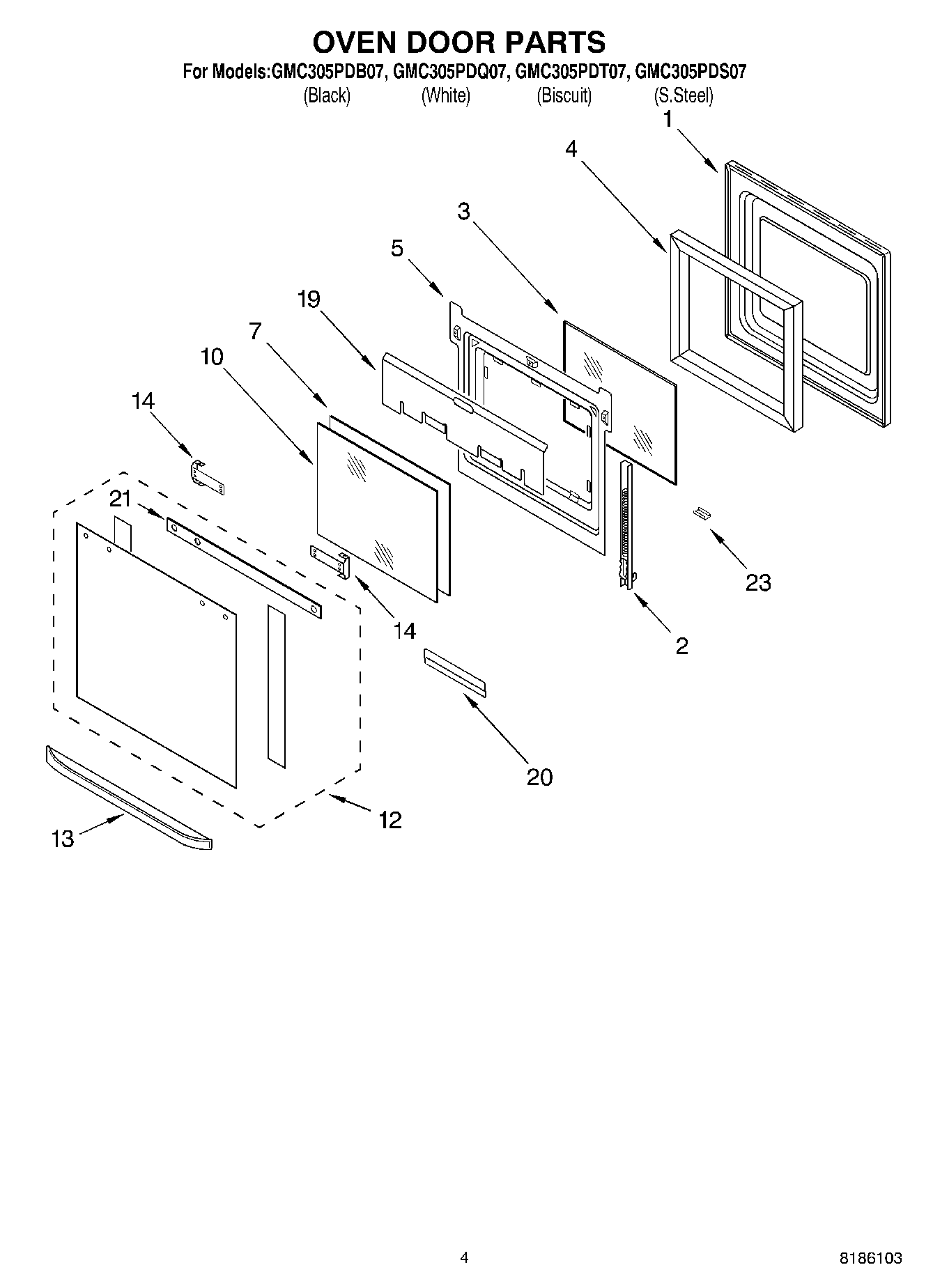

GMC305PDS07 03 – OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	WP9759413 Whirlpool Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	Hinge, Door (R.Side)
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	Glass, Inner
10	WP4449263 Whirlpool Inner Door Glass
12	WP9759641 Whirlpool Outer Door Glass
12	Door Glass (White Model)
12	Door Glass (Biscuit)
12	WP9759074 Whirlpool Outer Door Glass
13	Door Handle (Biscuit)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	Retainer, Clip (Almond Model)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
23	RETAINER,GLASS CLIP (BISCUIT)
