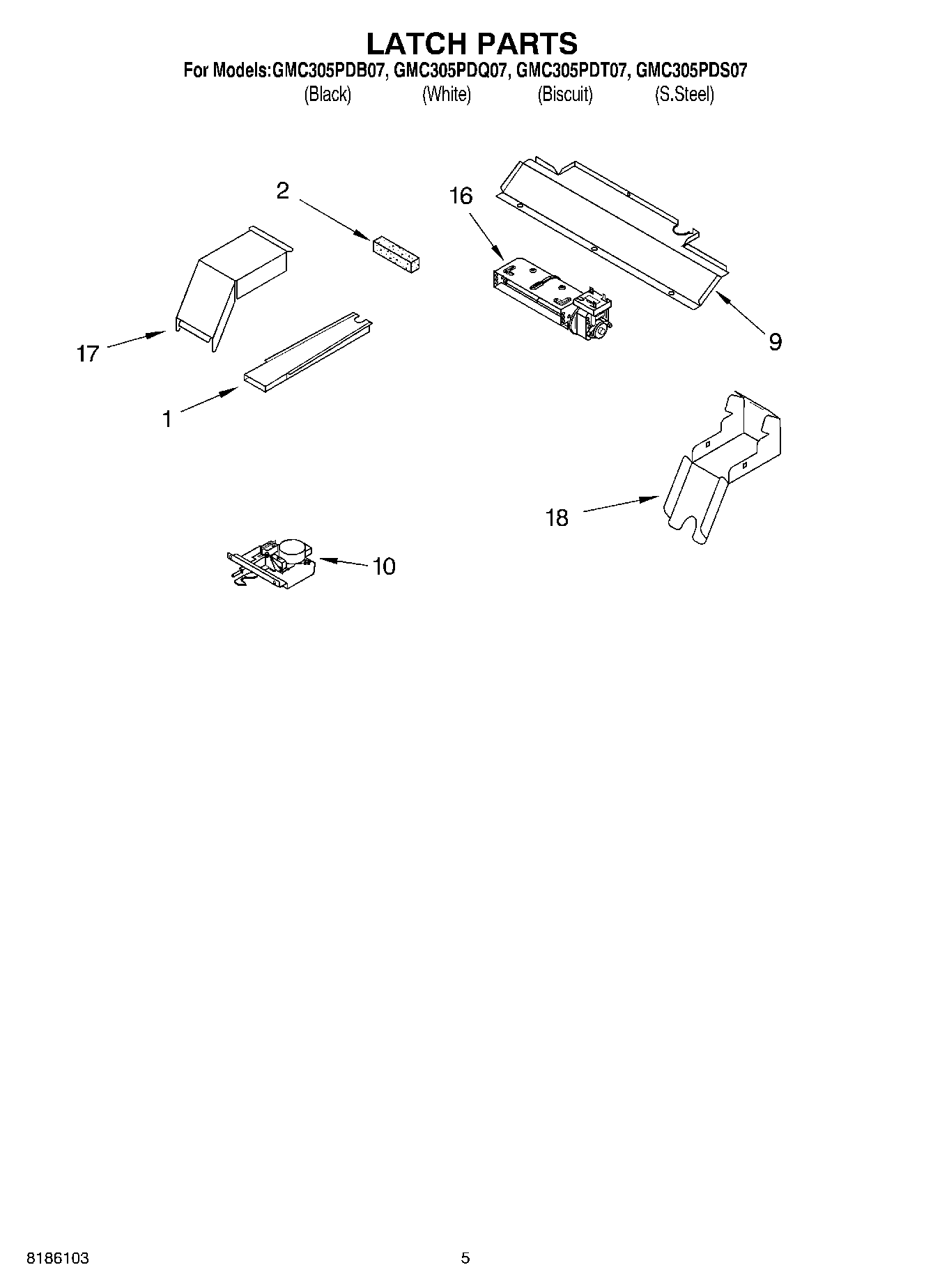

GMC305PDS07 04 – LATCH PARTS

GMC305PDS07 04 – LATCH PARTS

Written by

in

GMC305PDS07 04 – LATCH PARTS

Products

PositionProduct
NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1Screw
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
9WP4449154 Whirlpool Screw
9Baffle, Rear
10WP9760889 Whirlpool Door Latch
16WPW10016550 Whirlpool Blower Cooling Fan
174455178 Whirlpool Oven Top Elbow
184455177 Whirlpool Oven Bottom Elbow
