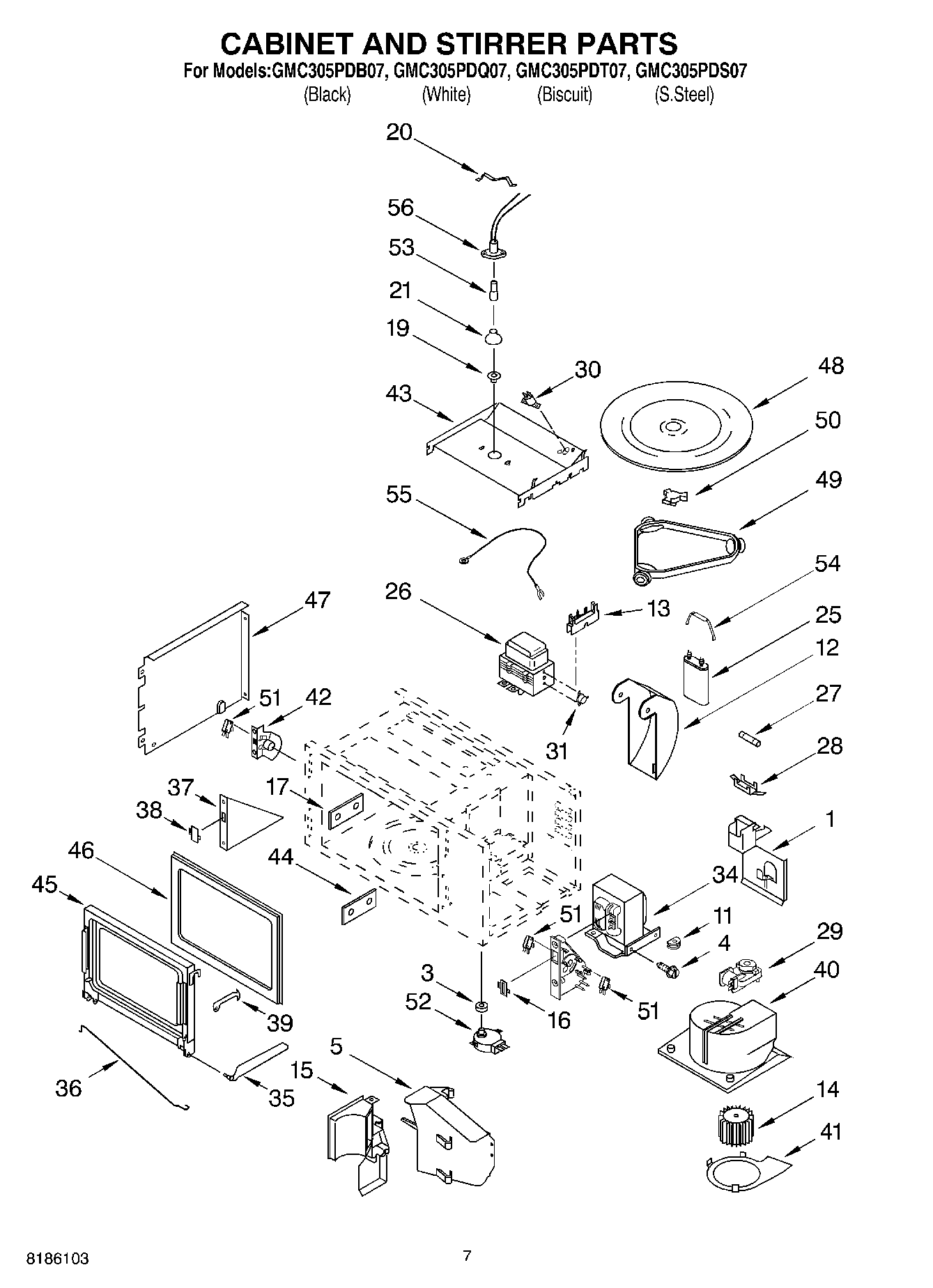

GMC305PDS07 06 – CABINET AND STIRRER PARTS

Products

Position	Product
1	Bracket, Capacitor
3	Rubber Ring
4	Screw
5	Air Duct, Magnetron
11	Damper
12	Duct, Inlet
13	Insulation, Switch
14	Fan Wheel
15	Duct, Air
16	Block, Slide
17	Cover Plate, Upper
19	W11193483 Whirlpool Microwave Lamp Lens
20	W10465869 Whirlpool Microwave Spring
21	423107022541 Whirlpool Microwave Reflector
25	WP4375020 Whirlpool High Voltage Capacitor
26	W10245183 Whirlpool Microwave Magnetron
27	WP4375321 Whirlpool Microwave Fuse
28	W10245194 Whirlpool Microwave Fuse Block
29	MOTOR-FAN
30	Thermostat
31	WP4375079 Whirlpool Microwave Thermostat
34	WP4375286 Whirlpool Microwave Transformer
35	WP4375323 Whirlpool Microwave Door Hinge
35	WP4375324 Whirlpool Microwave Door Hinge
36	WP4451009 Whirlpool Microwave Spring
37	Bracket, Hinge (Left)
37	Bracket, Hinge (Right)
38	Inlet
39	Strap, Door
40	Fan Cap
41	Fan Cap Bottom
42	W10727408 Whirlpool Microwave Switch
43	Isolation Plate
44	Cover Plate
45	Plate, Door
46	Inner Frame
47	Side Plate (Right)
47	Side Plate (Left)
48	W11373838 Whirlpool Glass Tray
49	Ring, Turntable
50	WP8183788 Whirlpool Microwave Turn Shaft
51	W10211972 Whirlpool Microwave Switch
52	W10642989 Whirlpool Microwave Oven Turntable Motor
53	WPW10440740 Whirlpool Microwave Light Bulb
54	WPW10687786 Whirlpool Microwave Diode
55	Cable
56	Holder, Lamp
