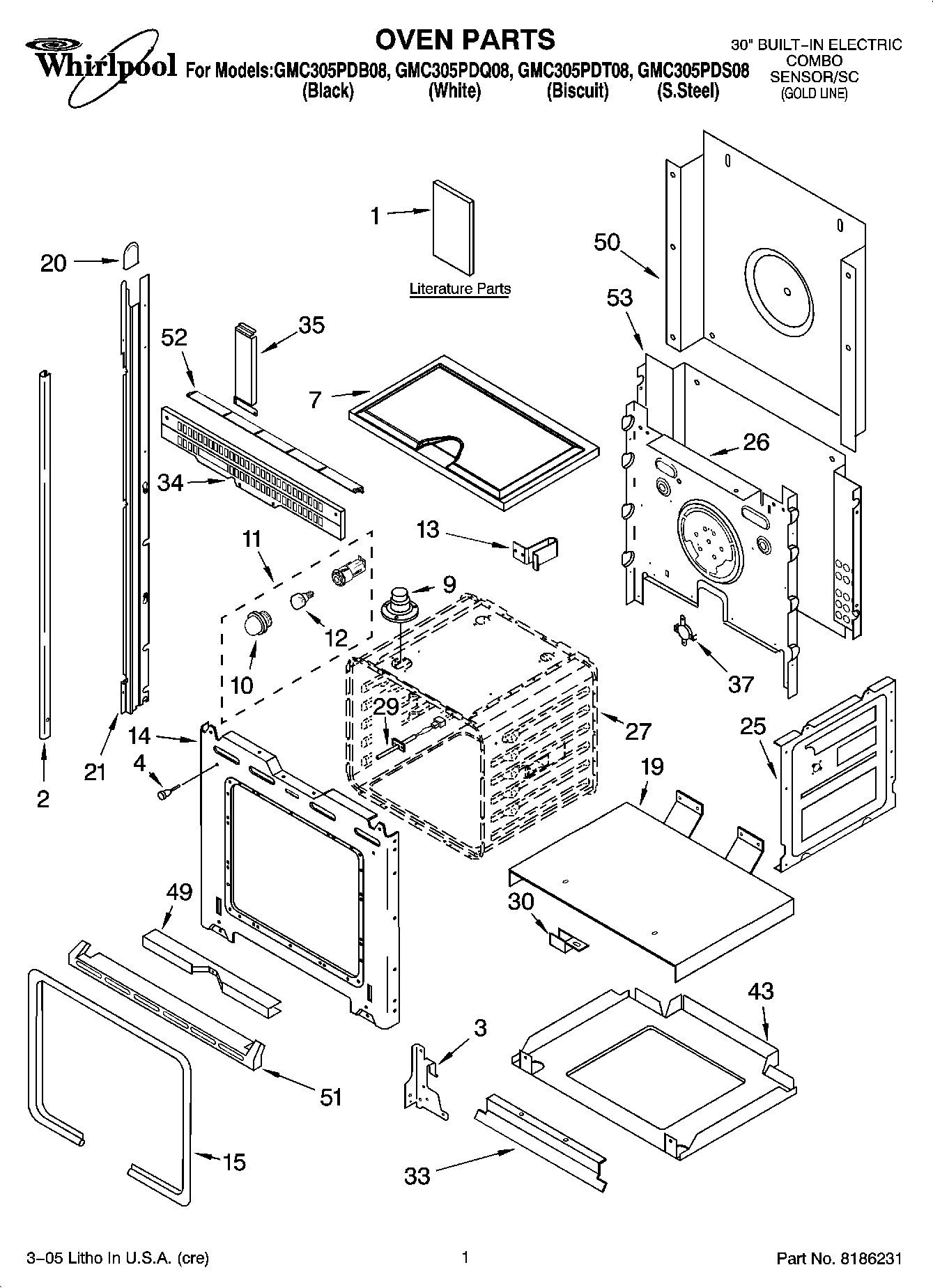

GMC305PDS08 01 – OVEN PARTS

GMC305PDS08 01 – OVEN PARTS

Written by

in

GMC305PDS08 01 – OVEN PARTS

Products

PositionProduct
1Use & Care Guide (Microwave)
1Installation Instructions
1Safe Cooking Tips
1Tech Sheet (Oven)
1Cooking Guide (Label)
1Use & Care Guide (Oven)
2Trim, Side (RH White)
2Trim, Side (LH Black)
2Trim, Side (LH White)
2Trim, Side (LH Biscuit)
2Trim, Side (RH Biscuit)
2Trim, Side (RH Black)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
7Top, Chassis
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Bracket, Combo Chassis
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21WP4448444 Whirlpool Grommet
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
33Deflector, Vent
34Vent, Center
34WP4450038 Whirlpool Screw
35Extension Filler
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4448478
51WPL 4452415
51WPL 4448477
52Vent-Cntrl Panel
53W11684730 Whirlpool Insulation
53WPL 4450365
53WPL 4451756
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
