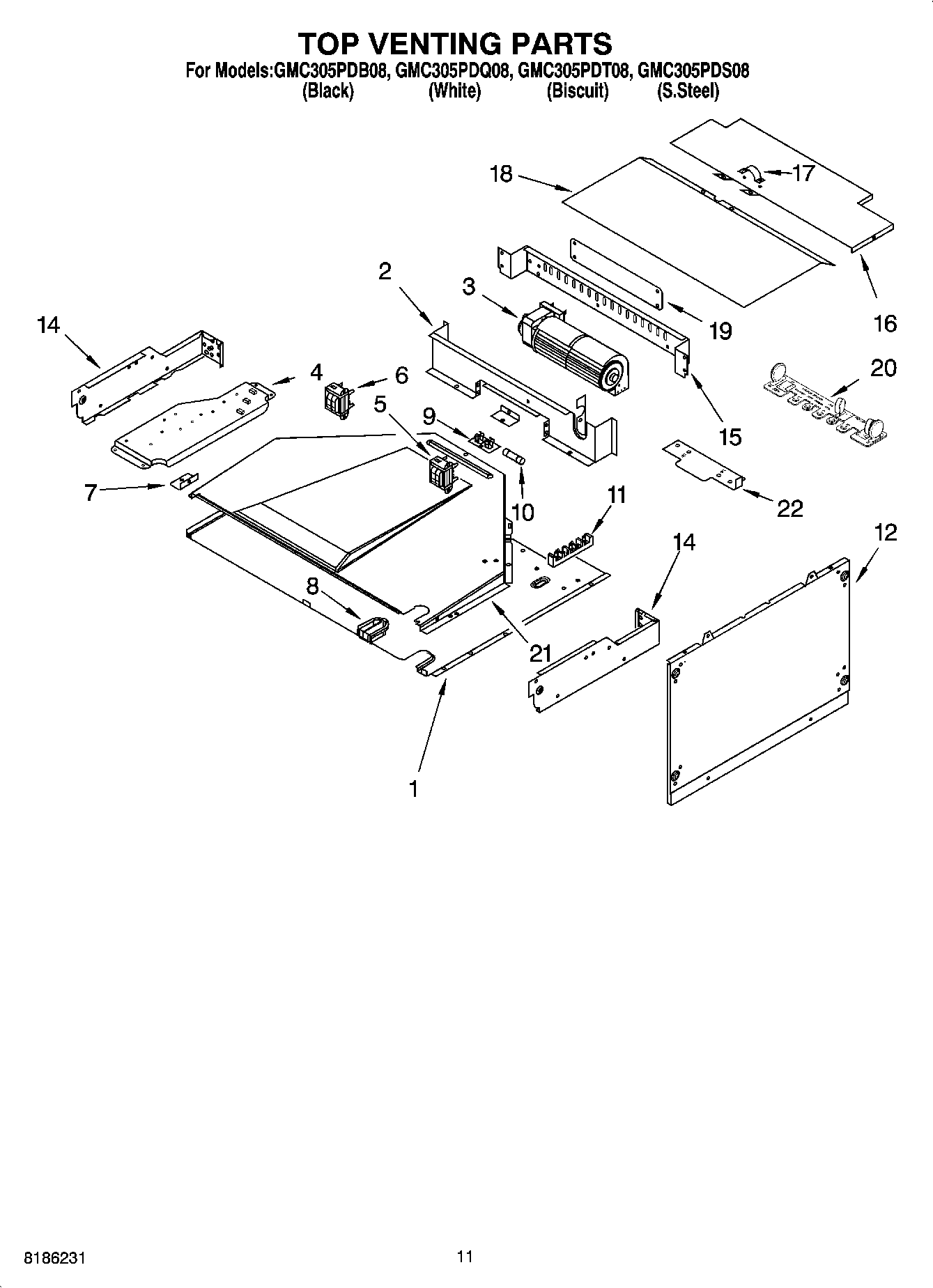

GMC305PDS08 09 – TOP VENTING PARTS, OPTIONAL PARTS

GMC305PDS08 09 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GMC305PDS08 09 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI67112A6
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
Wire (14 Ga. 200 c Brown)
1
WP3400832 Whirlpool Screw
WPL ARI67111A1
WPL ARI67110A9
Ha
Filler Kit (Wh)
Filler Kit (Bl)
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI67113A4
4450950 Whirlpool Oven Conduit
WPL 591014
16515 Whirlpool Clip
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
Wire, 25` Roll (Black 14 Ga.)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPW10339879 Whirlpool Wire Tie
Wire, 25“ Roll (White 14 GA.)
WP4448950 Whirlpool Screw
4450800 Whirlpool Oven Screw
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
Ground (M/W)
1WP4450118 Whirlpool Nut
1Cover, Top
2Baffle, Blower
3Blower
3489392 Whirlpool Refrigerator Screw
4Plate, Mounting
5WP9760588 Whirlpool Transformer
6Transformer, Control
7Bracket, Duct
8Grommet
8WP112432 Whirlpool Nut Assembly
94454949 Whirlpool Oven Fuse Block
9WP4449154 Whirlpool Screw
10WPW10017410 Whirlpool Fuse
11Screw
11WP8203546 Whirlpool Terminal Block
12Spacer, Foam
12Side, Combo
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
174448664 Whirlpool Oven Mounting Bracket
18WP4452367 Whirlpool Top Cover
19Plate, Cover
20SUPPRESSOR
21Exhaust Duct
224455191 Whirlpool Oven Mounting Plate
