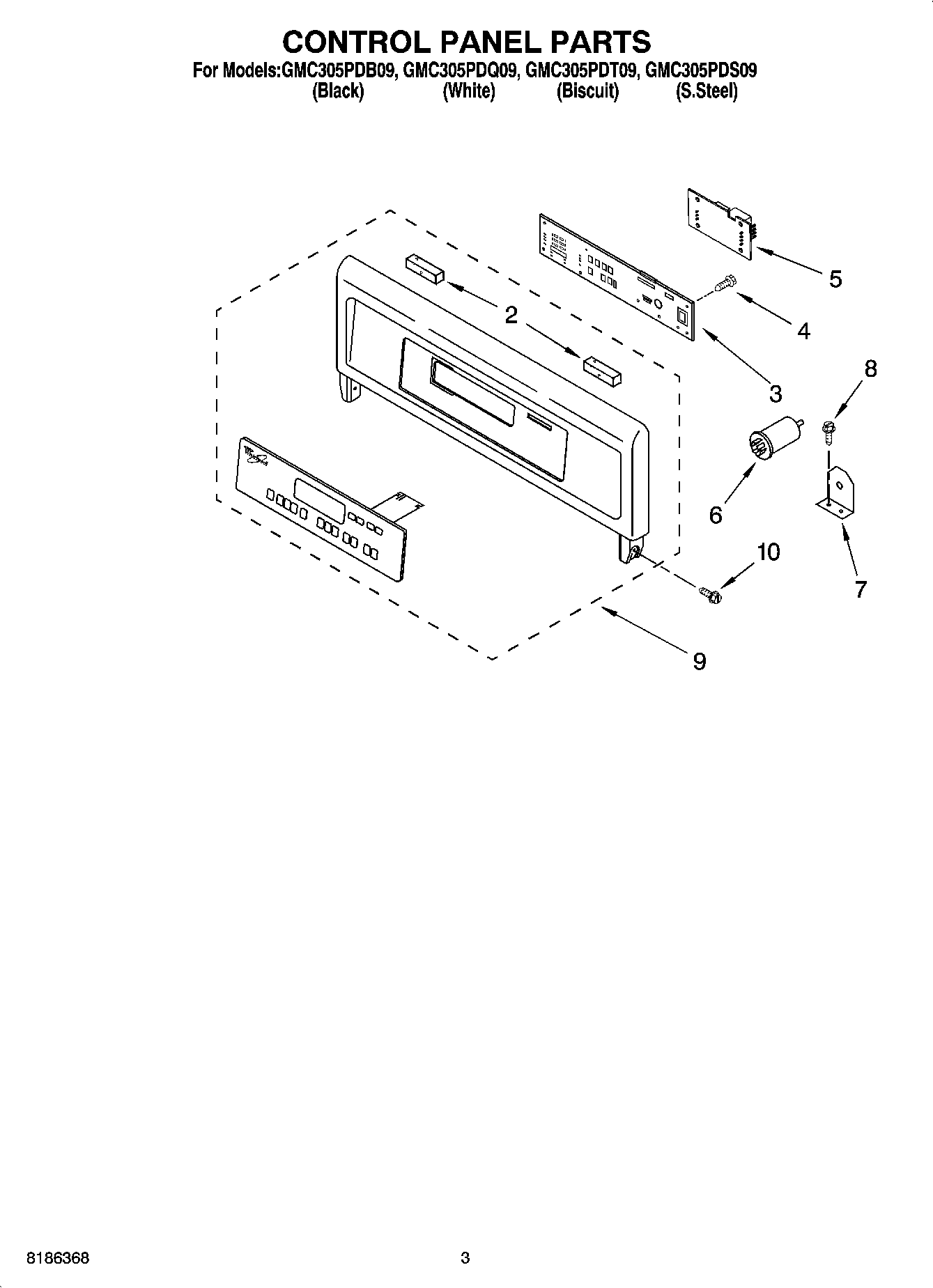

GMC305PDS09 02 – CONTROL PANEL PARTS

GMC305PDS09 02 – CONTROL PANEL PARTS

Written by

in

GMC305PDS09 02 – CONTROL PANEL PARTS

Products

PositionProduct
2Gasket
3Microcomputer
4WP3400832 Whirlpool Screw
5Latch, Sister Board
6Filter
7Bracket, Filter
8WP4449809 Whirlpool Screw
9Control Panel Assy W/Membrane Switch (Biscuit)
9Control Panel Assy W/Membrane Switch (White Model)
9Control Panel Assy W/Membrane Switch (Black & Black Stainless Models)
10WP4449745 Whirlpool Screw
