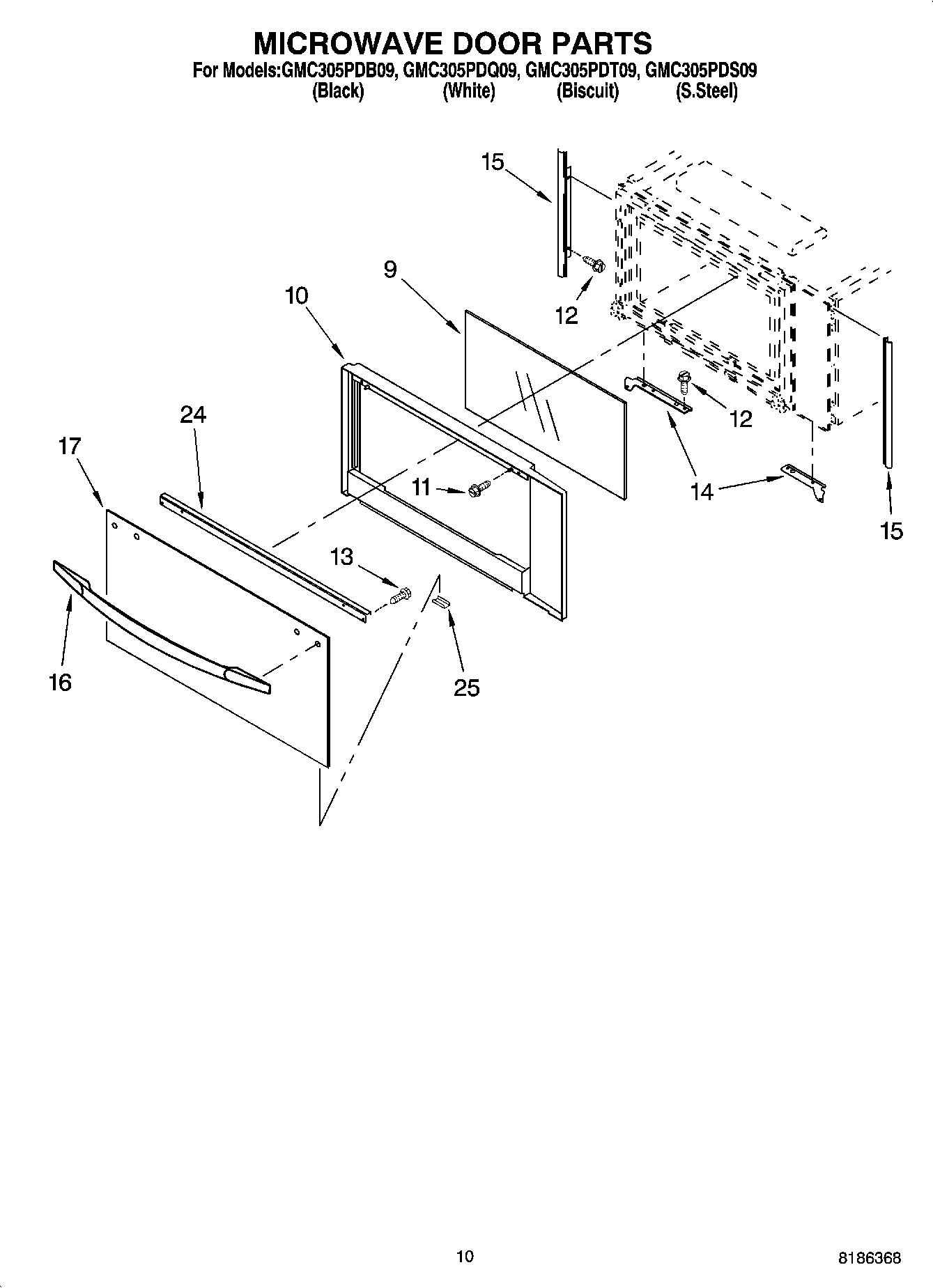

GMC305PDS09 08 – MICROWAVE DOOR PARTS

GMC305PDS09 08 – MICROWAVE DOOR PARTS

Written by

in

GMC305PDS09 08 – MICROWAVE DOOR PARTS

Products

PositionProduct
9Glass, Middle
10WP8303556 Whirlpool Microwave Door Frame
11WP4450038 Whirlpool Screw
12WP4449809 Whirlpool Screw
13Screw
14Bracket, Mounting (Left Side)
14Bracket, Mounting (Right Side)
15Filler, Side
15Filler, Side (Left Side)
16Door Handle (Biscuit)
16Door Handle (White Model)
16Door Handle (Black Model)
17Glass, Outer (Black)
17Glass, Outer (White)
17Glass, Outer (Black Stainless)
17Glass, Outer (Biscuit)
24Bracket, Handle
25RETAINER,GLASS CLIP (BISCUIT)
25Clip, Retainer (White Model)
25Clip, Retainer (Black Model)
