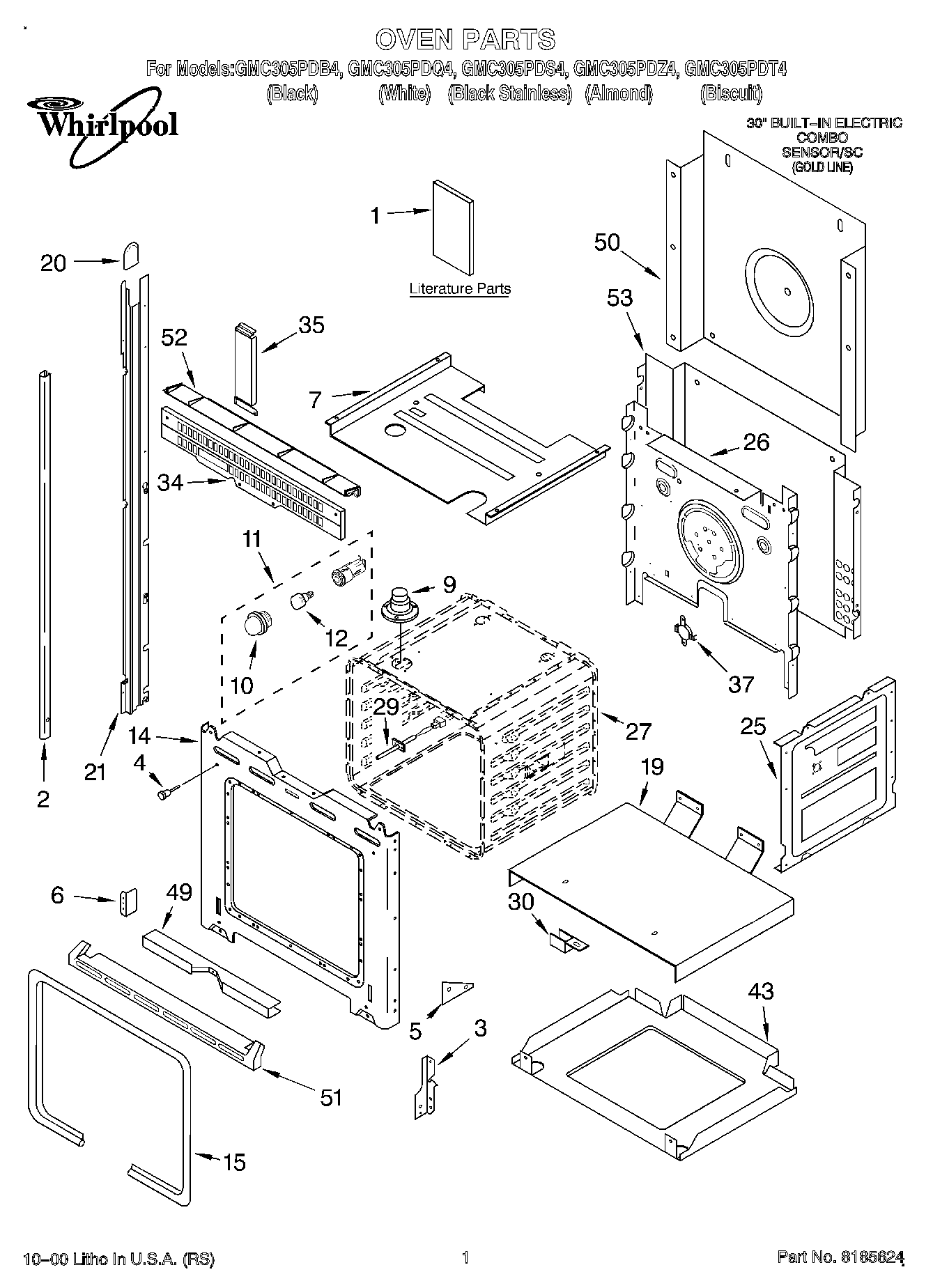

GMC305PDS4 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Cooking Guide (Label))
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet (Oven))
2Trim, Side (RH White)
2Trim, Side (LH Black)
2Trim, Side (RH Black)
2Trim, Side (White)
2Trim, Side (LH Biscuit)
2Trim, Side (LH Almond)
2Trim, Side (RH Almond)
2Trim, Side (LH White)
2Trim, Side (RH Biscuit)
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
6Bracket, Support
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Screw
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
34WP4450038 Whirlpool Screw
34WPL 4451667
35Extension Filler
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51WPL 4452415
51WPL 4448477
51WPL 4448478
51WPL 4448862
52Vent-Cntrl Panel
53W11684730 Whirlpool Insulation
53WPL 4451756
53WPL 4450365
