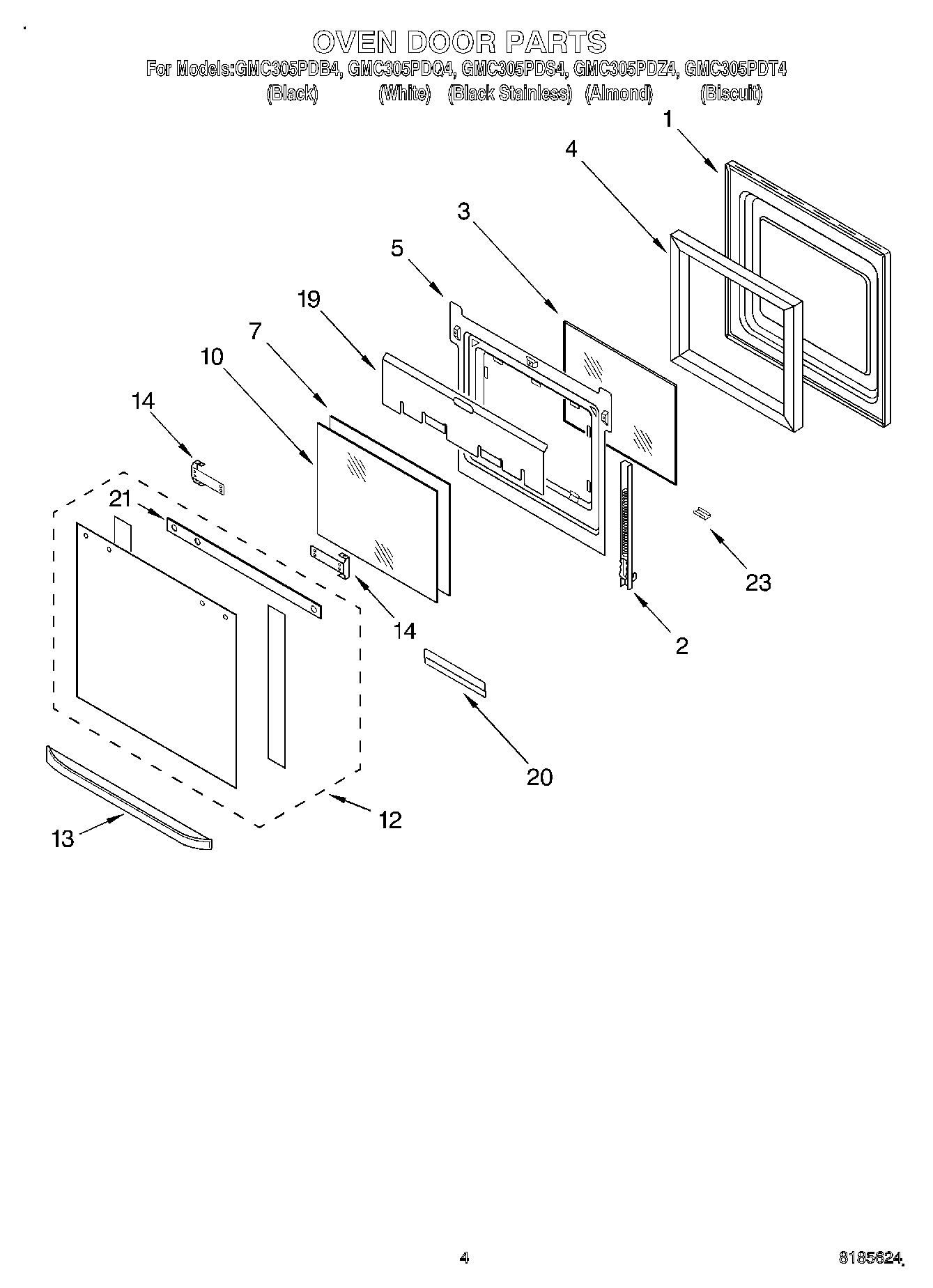

GMC305PDS4 03 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP4455526 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
2	WP4455525 Whirlpool Oven Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	Glass, Inner
10	WP4449263 Whirlpool Inner Door Glass
12	Assy, Door Glass (Almond Model)
12	Door Glass, Assy (White Model)
12	WP9759074 Whirlpool Outer Door Glass
12	Door Glass (Biscuit)
12	WP9759641 Whirlpool Outer Door Glass
13	Door Handle (Biscuit)
13	Door Handle (Almond Model)
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Retainer, Clip (Almond Model)
23	Clip, Retainer (Black Model)
