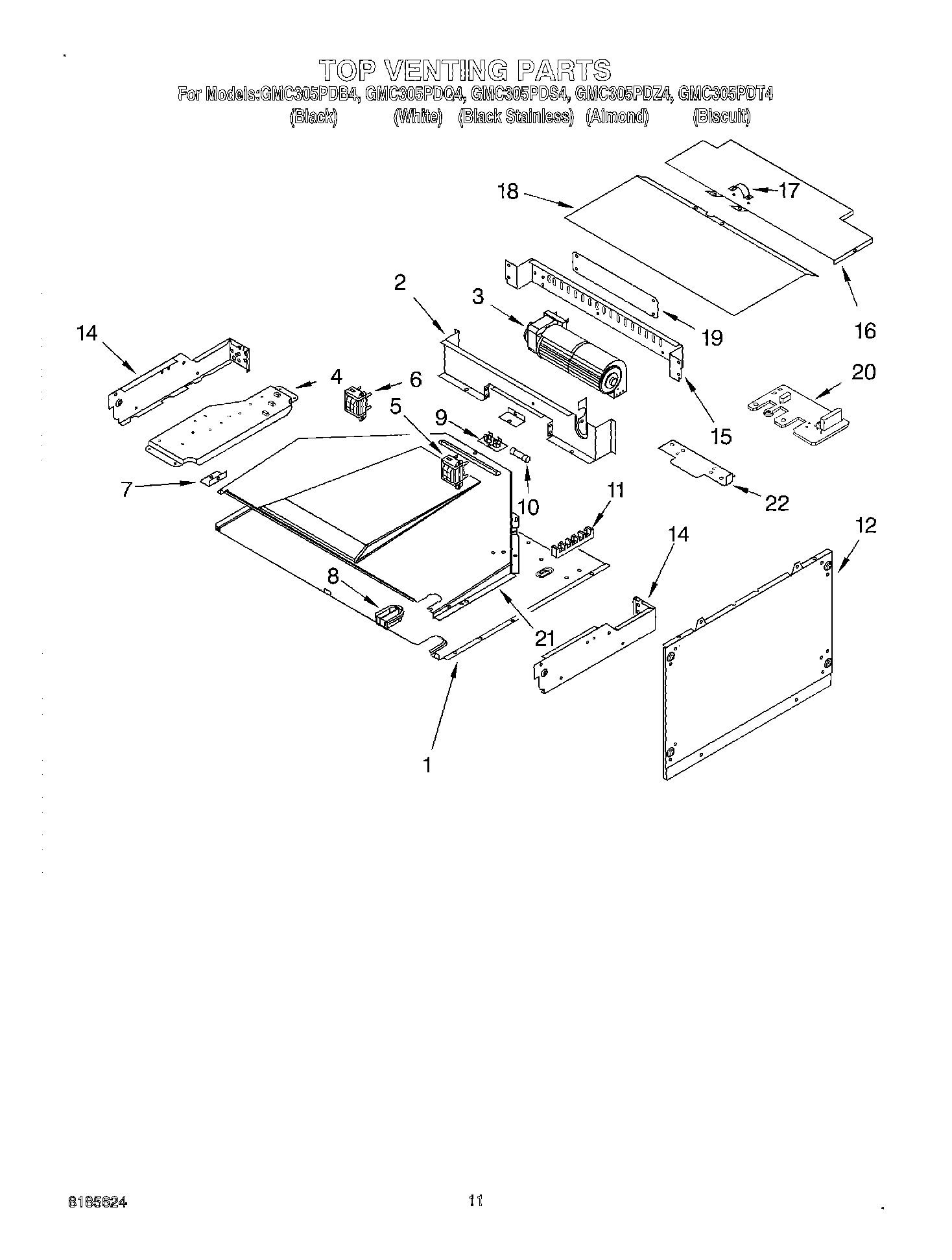

GMC305PDS4 09 – TOP VENTING, OPTIONAL

Products

Position	Product
1	Cover, Top
1	WP4450118 Whirlpool Nut
2	Baffle, Blower
3	WPW10016550 Whirlpool Blower Cooling Fan
4	Plate, Mounting
5	WP9760588 Whirlpool Transformer
6	Transformer, Control
7	Bracket, Duct
8	WP112432 Whirlpool Nut Assembly
8	Grommet
9	4454949 Whirlpool Oven Fuse Block
9	WP4449154 Whirlpool Screw
10	WPW10017410 Whirlpool Fuse
11	Screw
11	WP8203546 Whirlpool Terminal Block
12	Spacer, Foam
12	Side, Combo
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
17	4448664 Whirlpool Oven Mounting Bracket
18	WP4452367 Whirlpool Top Cover
19	Plate, Cover
20	WP4451985 Whirlpool Noise Filter Board
21	Exhaust Duct
22	Filler Kit (Al)
22	1
22	Wire (14 Ga. 200 c Brown)
22	Ha
22	Filler Kit (Wh)
22	WPL 591014
22	Filler Kit (Bl)
22	261900 Whirlpool Microwave Spray
22	4450950 Whirlpool Oven Conduit
22	Harness, Wire (Latch)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	WP482338 Whirlpool Refrigerator Adhesive
22	72032 Whirlpool Touch Up Paint Black
22	285006 Whirlpool Spray
22	WPW10339879 Whirlpool Wire Tie
22	4450800 Whirlpool Oven Screw
22	350930 Whirlpool White Spray Paint
22	Wire, 25“ Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	Wire, 25` Roll (Black 14 Ga.)
22	WP4449809 Whirlpool Screw
22	814381 Whirlpool Pin
22	WP4448950 Whirlpool Screw
22	Ground (M/W)
22	Wire (14 Ga. 150 c Yellow)
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	WP261869 Whirlpool Microwave Paint
22	242831 Whirlpool Oven Wire
22	Spacer, Harness
22	16515 Whirlpool Clip
22	4455191 Whirlpool Oven Mounting Plate
22	72017 Whirlpool Appliance Touch-Up Paint White
