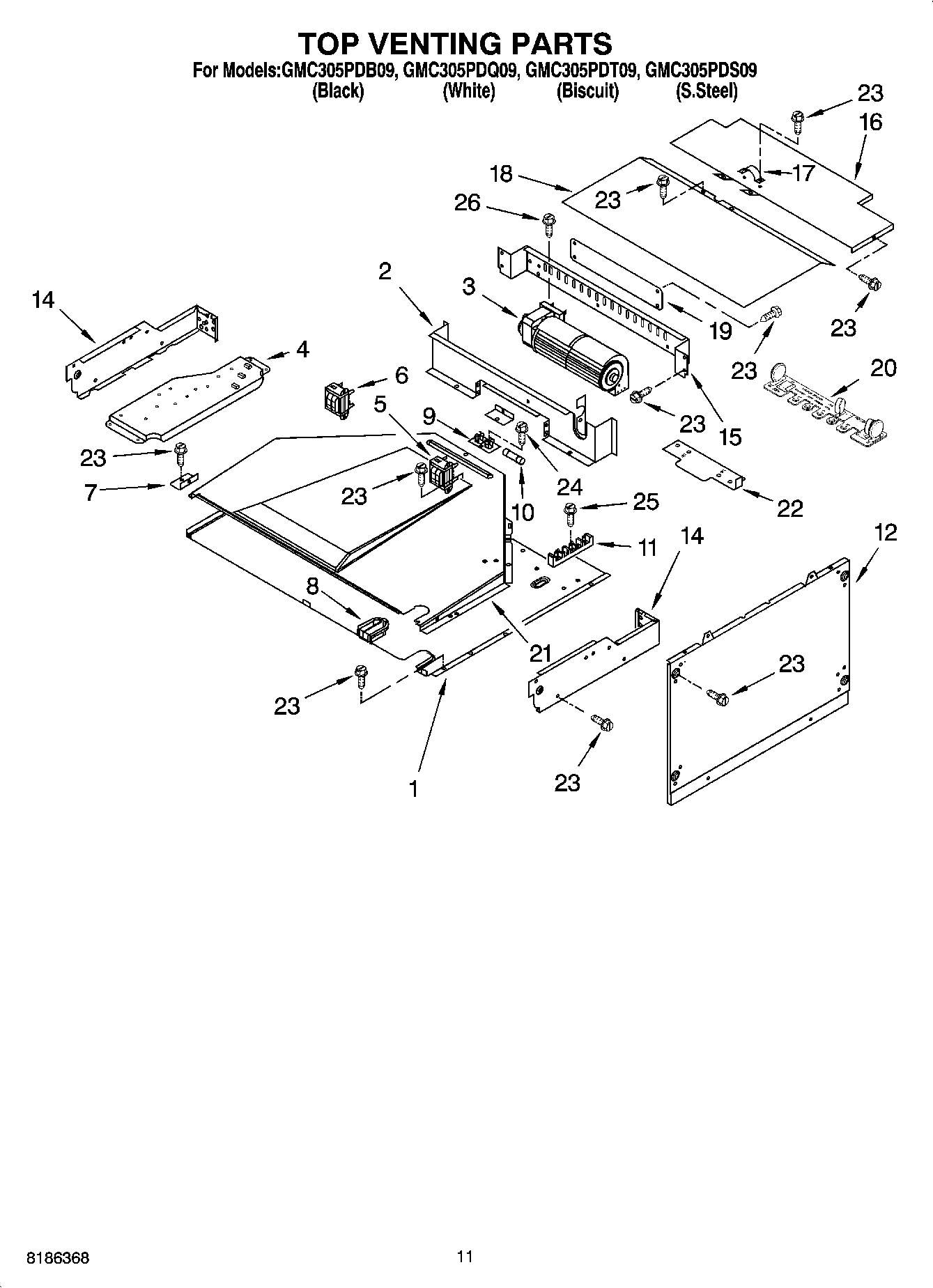

GMC305PDT09 09 – TOP VENTING PARTS, OPTIONAL PARTS

GMC305PDT09 09 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GMC305PDT09 09 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI67147A7
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Filler Kit (Bl)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Wire (14 Ga. 200 c Brown)
1
WP3400832 Whirlpool Screw
WPL ARI67146A1
WPL ARI67145A8
Ha
WPL 8303837
Filler Kit (Wh)
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI67148A9
4450950 Whirlpool Oven Conduit
WPL 591014
Spacer, Harness
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
WPW10339879 Whirlpool Wire Tie
WP482338 Whirlpool Refrigerator Adhesive
Wire, 25` Roll (Red 14 Ga.)
72032 Whirlpool Touch Up Paint Black
Wire, 25“ Roll (White 14 GA.)
285006 Whirlpool Spray
4450800 Whirlpool Oven Screw
Wire, 25` Roll (Black 14 Ga.)
WP4449809 Whirlpool Screw
Ground (M/W)
16515 Whirlpool Clip
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
1Cover, Top
2Baffle, Blower
3Blower
4Plate, Mounting
5WP9760588 Whirlpool Transformer
6Transformer, Control
7Bracket, Duct
8Grommet
94454949 Whirlpool Oven Fuse Block
10WPW10017410 Whirlpool Fuse
11WP8203546 Whirlpool Terminal Block
12Side, Combo
12Spacer, Foam
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
174448664 Whirlpool Oven Mounting Bracket
18WP4452367 Whirlpool Top Cover
19Plate, Cover
20SUPPRESSOR
21Exhaust Duct
224455191 Whirlpool Oven Mounting Plate
24WP4449154 Whirlpool Screw
25Screw
26Screw
