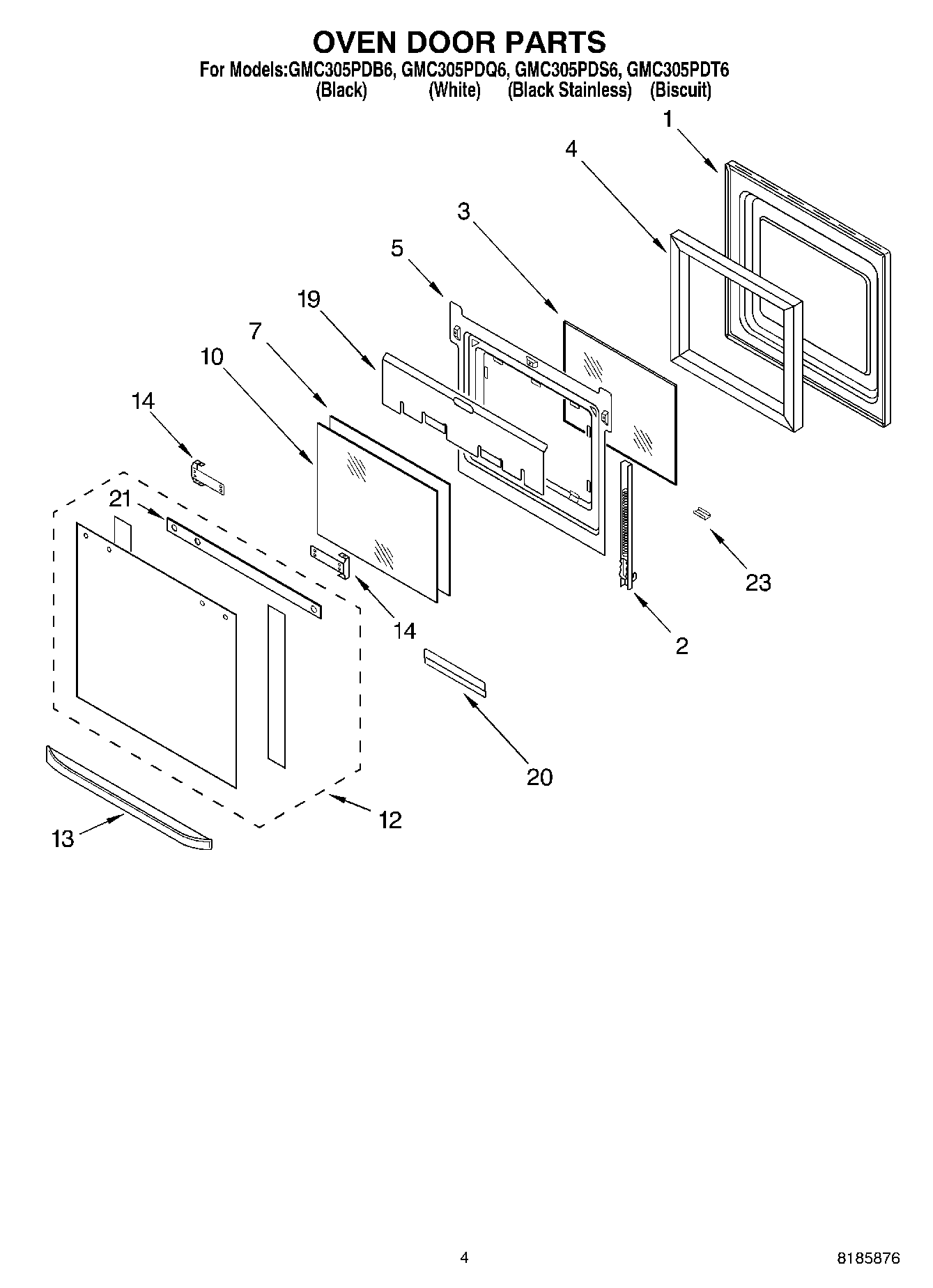

GMC305PDT6 03 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	HINGE-DOOR LH/SS DOOR SPRING
2	Hinge, Door (R.Side)
2	WP9760571 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	Glass, Inner
10	WP4449263 Whirlpool Inner Door Glass
12	Door Glass, Assy (White Model)
12	WP9759074 Whirlpool Outer Door Glass
12	Door Glass (Biscuit)
12	WP9759641 Whirlpool Outer Door Glass
13	Door Handle (White Model)
13	Door Handle (Black Model)
13	Door Handle (Biscuit)
14	Screw
14	Bracket, Handle
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Retainer, Clip (Almond Model)
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
23	Clip, Retainer (White Model)
