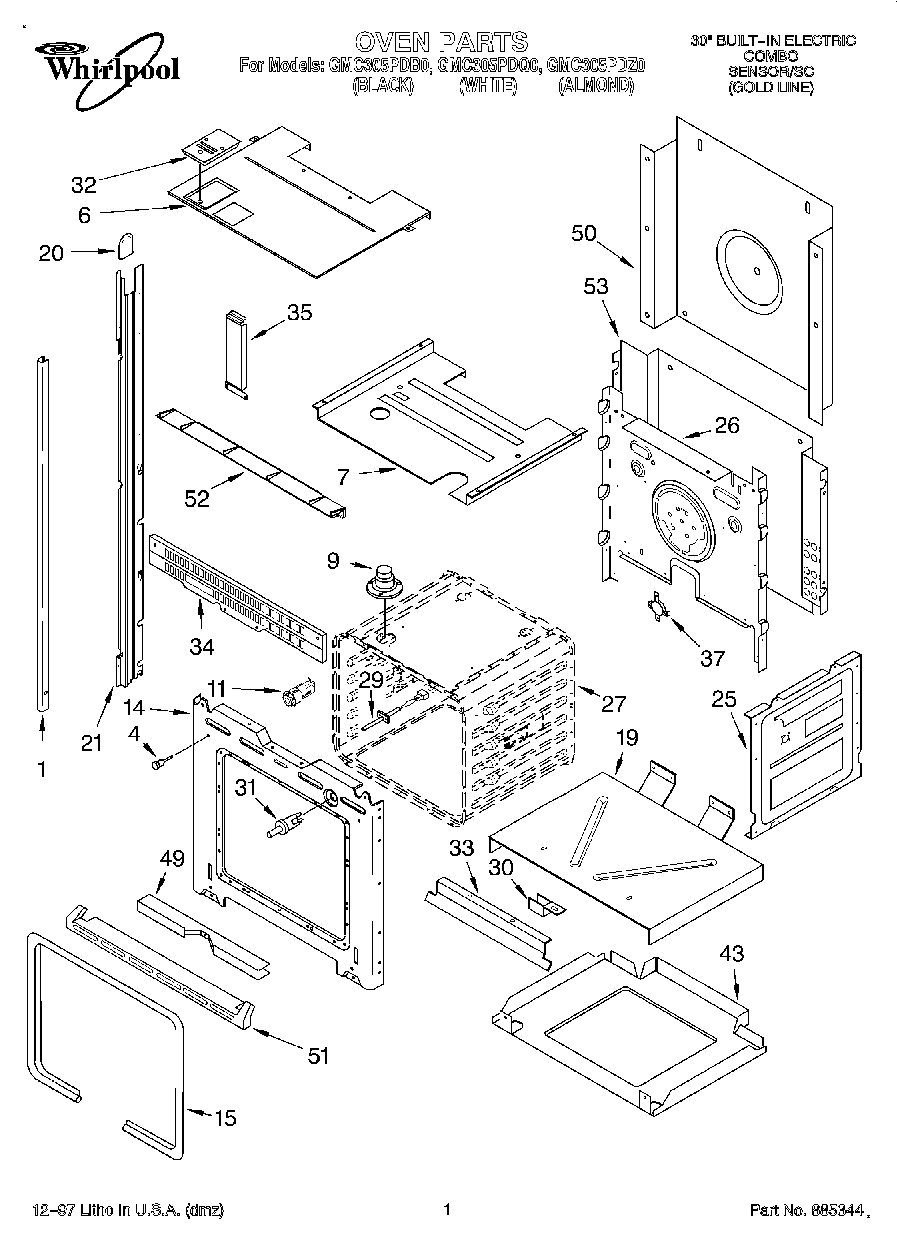

GMC305PDZ0 01 – OVEN

Products

Position	Product
1	Trim, Side (RH White)
1	Trim, Side (RH Almond)
1	Trim, Side (White)
1	Trim, Side (LH Almond)
1	Trim, Side (LH White)
1	Trim, Side (LH Black)
1	Trim, Side (RH Black)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WPW10734065 Whirlpool Light
14	Screw
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	814376 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814375 Whirlpool Oven Rail Mount
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
30	WPL 4449845
31	Switch, Door
32	Vent Box Assy
33	Deflector, Vent
34	Vent, Center
34	Screw, (2)
34	WP4450038 Whirlpool Screw
35	Extension Filler
37	Thermostat (TOD) (Temp.) SPST
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	Cover, Back
50	WP4449809 Whirlpool Screw
51	WPL 4448477
51	WPL 4448862
51	WPL 4448478
52	Vent-Cntrl Panel
53	Chassis, Back
53	W11684730 Whirlpool Insulation
53	WPL 4450365
53	Insulation, Bottom
