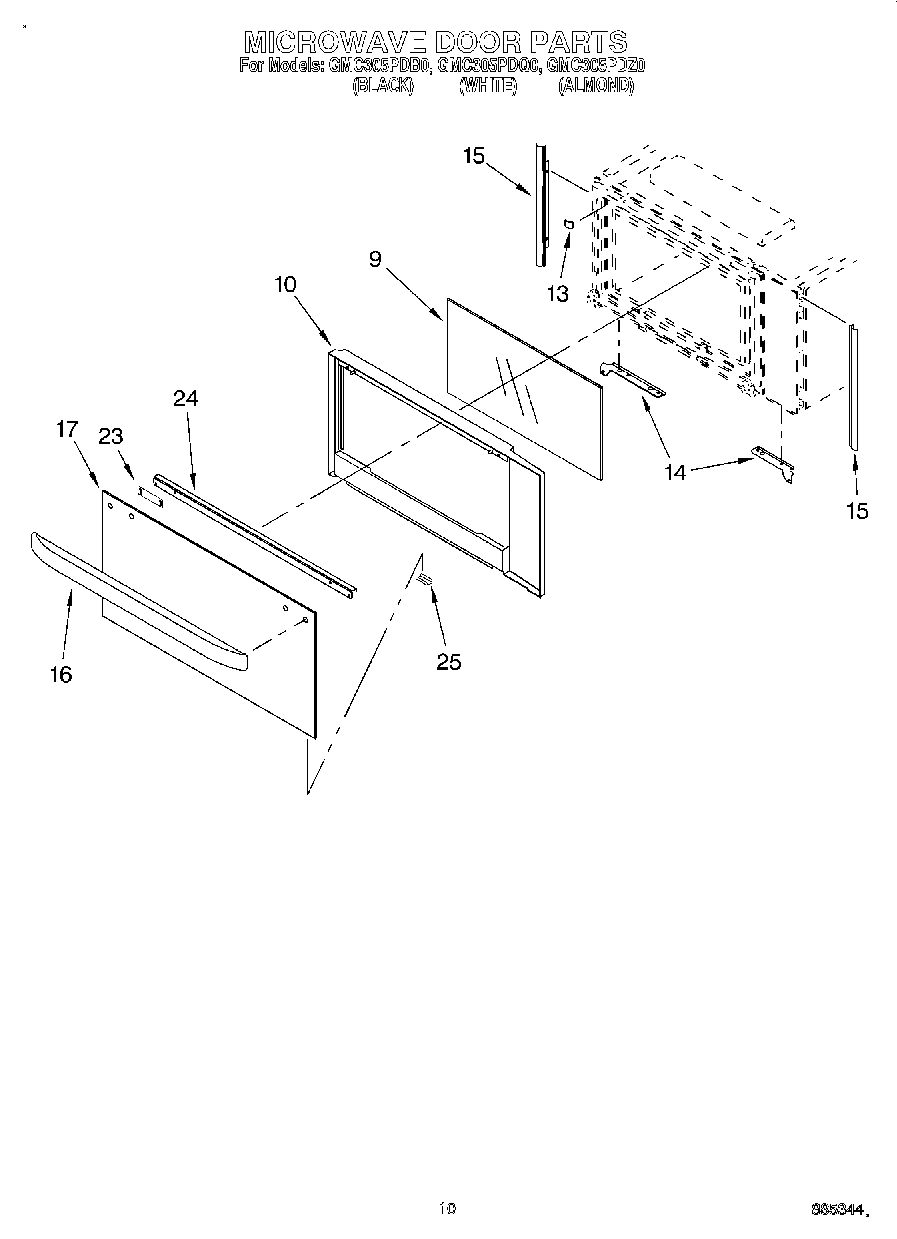

GMC305PDZ0 08 – MICROWAVE DOORadmin2025-04-26T10:58:39+00:00GMC305PDZ0 08 – MICROWAVE DOOR
Products
| Position | Product |
|---|
| 9 | Glass, Middle |
| 10 | WP4450038 Whirlpool Screw |
| 10 | WP8303556 Whirlpool Microwave Door Frame |
| 13 | Tape, Foam |
| 14 | Bracket, Mounting (Right Side) |
| 14 | Bracket, Mounting (Left Side) |
| 15 | WP4449809 Whirlpool Screw |
| 15 | Filler, Side (Left Side) |
| 15 | Filler, Side |
| 16 | Door Handle (Almond Model) |
| 16 | Door Handle (Black Model) |
| 16 | Door Handle (White Model) |
| 17 | Glass, Outer (White Model) |
| 17 | Glass, Outer (Black) |
| 17 | Glass, Outer (Almond Model) |
| 23 | Spacer (Stainless) |
| 24 | Bracket, Handle |
| 24 | Screw |
| 25 | Retainer, Clip (Almond Model) |
| 25 | Clip, Retainer (Black Model) |
| 25 | Clip, Retainer (White Model) |
