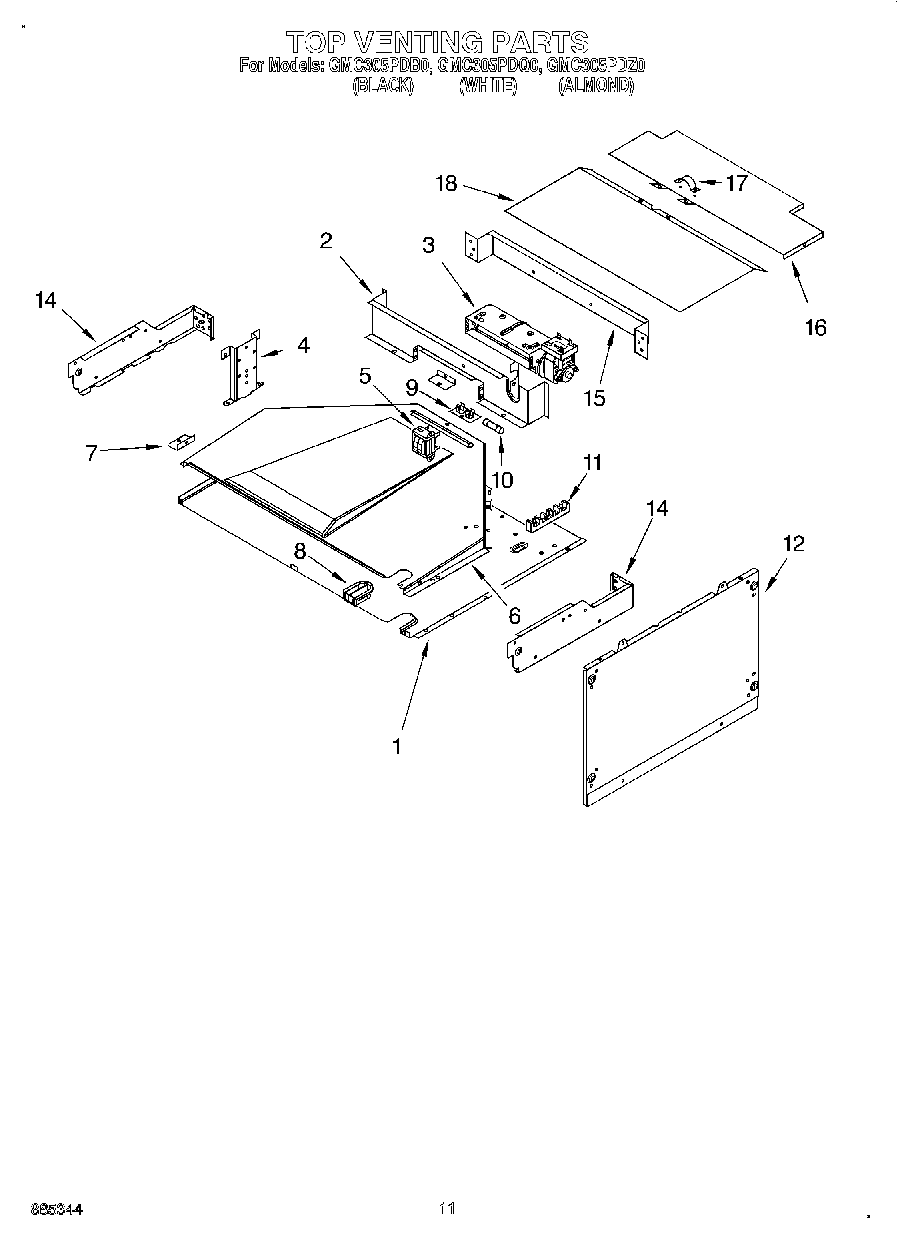

GMC305PDZ0 09 – TOP VENTING, OPTIONAL

GMC305PDZ0 09 – TOP VENTING, OPTIONAL

Written by

in

GMC305PDZ0 09 – TOP VENTING, OPTIONAL

Products

PositionProduct
1Cover, Top
1WP4450118 Whirlpool Nut
2Baffle, Blower
3Blower
4Bracket, Transformer
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Bracket, Duct
8WP112432 Whirlpool Nut Assembly
8Grommet
9WP4449154 Whirlpool Screw
94454949 Whirlpool Oven Fuse Block
10WPW10017410 Whirlpool Fuse
11WP8203546 Whirlpool Terminal Block
11WP3387230 Whirlpool Screw
12Side, Combo
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
174448664 Whirlpool Oven Mounting Bracket
18WPL 591014
184450950 Whirlpool Oven Conduit
18Harness, Wire (Latch)
18Harness, Wire (Door Switch) (Also, order Main Harness)
18Harness, Main
18WP4452367 Whirlpool Top Cover
18261900 Whirlpool Microwave Spray
18Filler Kit (Bl)
18Filler Kit (Wh)
18Filler Kit (Al)
18Wire (14 Ga. 150 c Orange)
181
18Wire (14 Ga. 200 c Brown)
18814381 Whirlpool Pin
18WP482338 Whirlpool Refrigerator Adhesive
1872032 Whirlpool Touch Up Paint Black
18285006 Whirlpool Spray
184450800 Whirlpool Oven Screw
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Black 14 Ga.)
18WP4449809 Whirlpool Screw
1872017 Whirlpool Appliance Touch-Up Paint White
18WP4448950 Whirlpool Screw
18Ground (M/W)
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Yellow)
18Wire, 25` Roll (Red 14 Ga.)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
18350930 Whirlpool White Spray Paint
