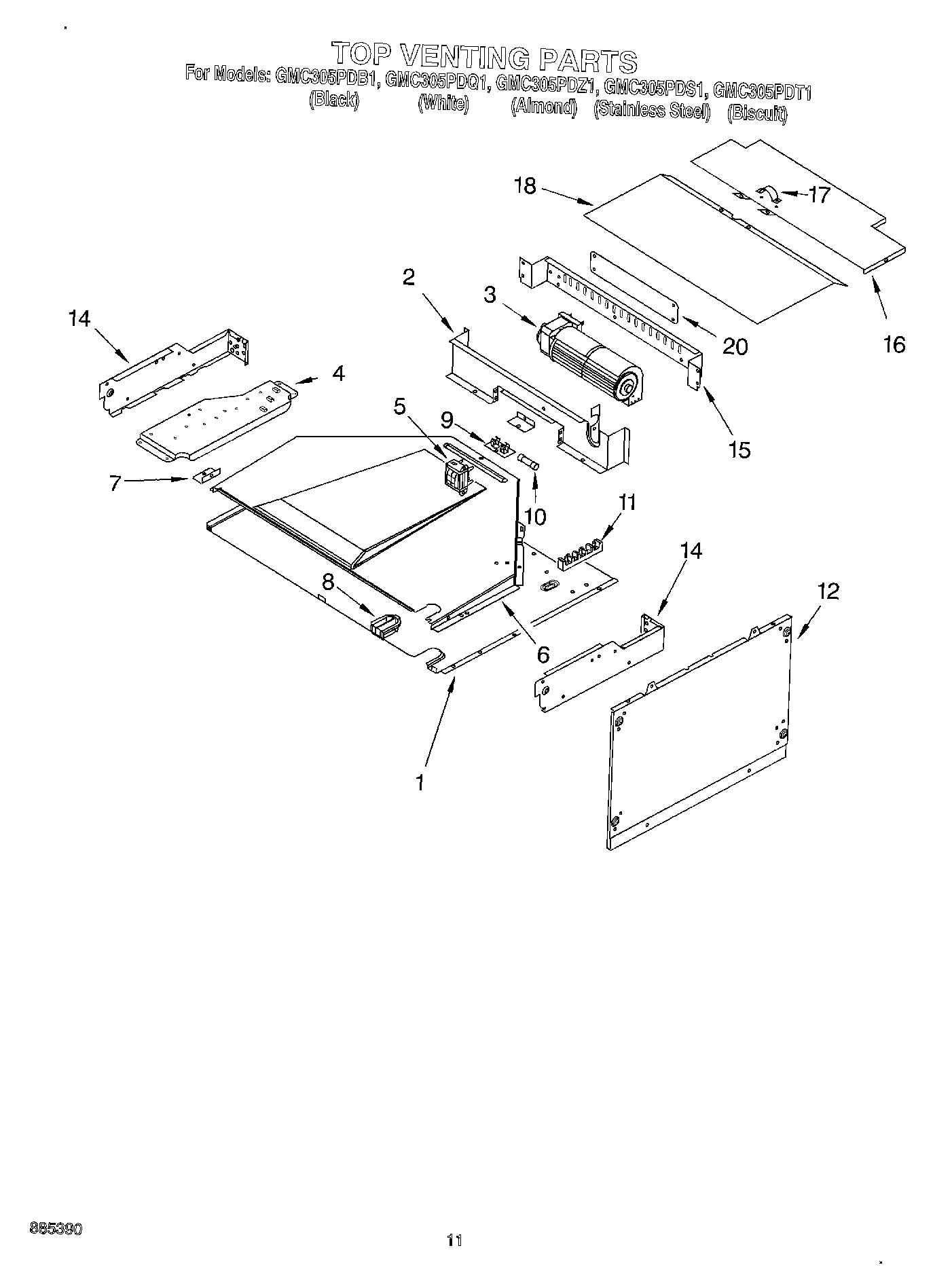

GMC305PDZ1 09 – TOP VENTING

Products

Position	Product
1	WP4450118 Whirlpool Nut
1	Cover, Top
2	Baffle, Blower
3	Blower
4	Plate, Mounting
5	WP9760588 Whirlpool Transformer
6	Exhaust Duct
7	Bracket, Duct
8	Grommet
8	WP112432 Whirlpool Nut Assembly
9	4454949 Whirlpool Oven Fuse Block
9	WP4449154 Whirlpool Screw
10	WPW10017410 Whirlpool Fuse
11	WP8203546 Whirlpool Terminal Block
11	WP3387230 Whirlpool Screw
12	Side, Combo
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
17	4448664 Whirlpool Oven Mounting Bracket
18	WP4452367 Whirlpool Top Cover
20	Wire (12 Ga. 150 c Black)
20	18 Ga. 80~c Rating (Red)
20	Wire (14 Ga. 200 c Brown)
20	1
20	Harness, Main
20	WPL 591014
20	261900 Whirlpool Microwave Spray
20	Filler Kit (Al)
20	Filler Kit (Bl)
20	4450950 Whirlpool Oven Conduit
20	Filler Kit (Wh)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	350930 Whirlpool White Spray Paint
20	WP482338 Whirlpool Refrigerator Adhesive
20	72032 Whirlpool Touch Up Paint Black
20	285006 Whirlpool Spray
20	WPW10339879 Whirlpool Wire Tie
20	4450800 Whirlpool Oven Screw
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	WP4449809 Whirlpool Screw
20	814381 Whirlpool Pin
20	WP4448950 Whirlpool Screw
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	WP261869 Whirlpool Microwave Paint
20	242831 Whirlpool Oven Wire
20	Spacer, Harness
20	Plate, Cover
20	16515 Whirlpool Clip
20	WPL 4452239
20	Ground (M/W)
20	72017 Whirlpool Appliance Touch-Up Paint White
