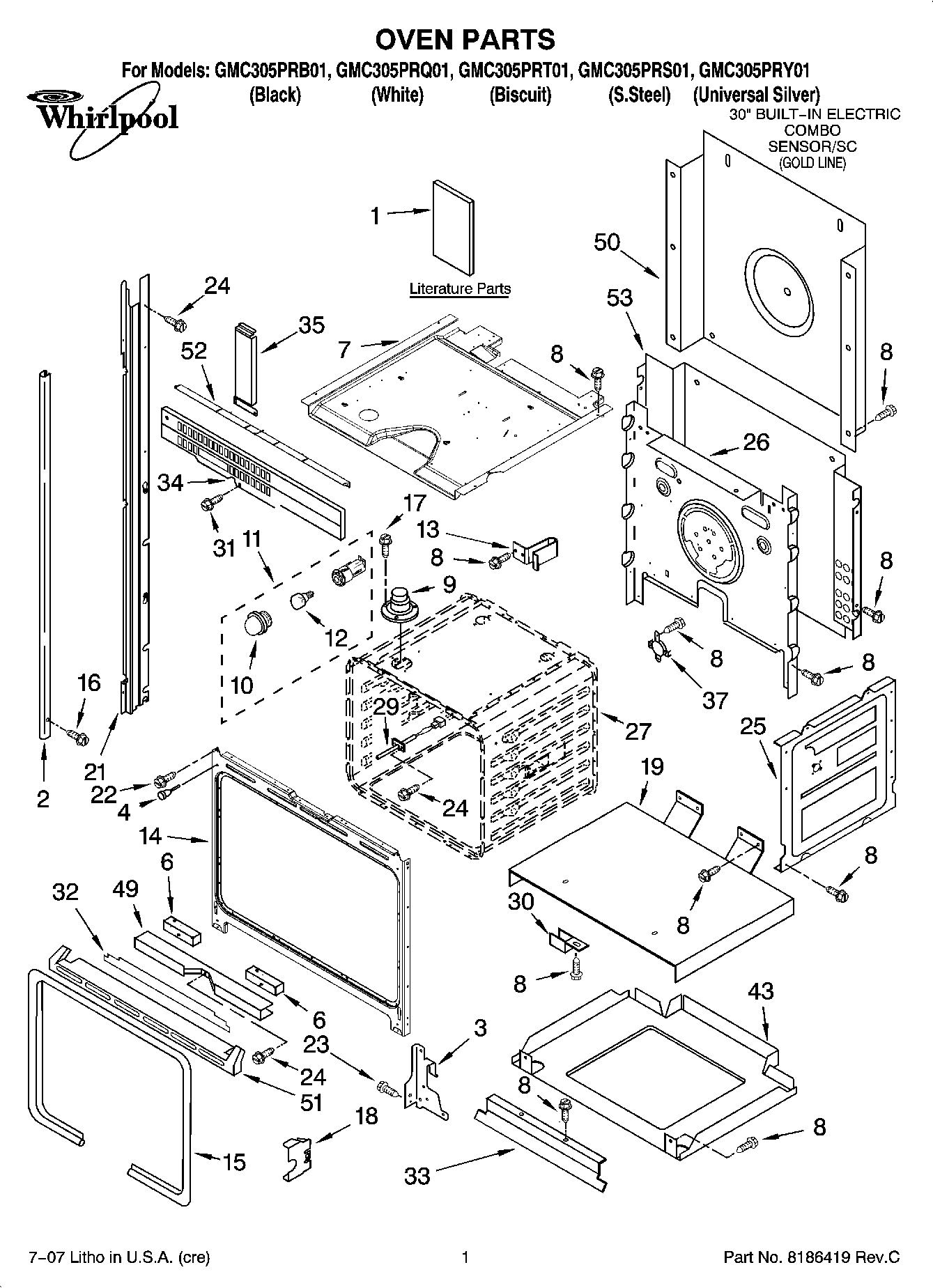

GMC305PRS01 01 – OVEN PARTS

GMC305PRS01 01 – OVEN PARTS

Written by

in

GMC305PRS01 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Installation Instructions (French)
1Use & Care Guide (Oven) (English)
1Use & Care Guide (Microwave) (English)
1Use & Care Guide (Oven) (French)
1Use & Care Guide (Microwave) (French)
1Tech Sheet
1Installation Instructions
2Trim, Side (LH S.Steel)
2Trim, Side (LH Biscuit)
2Trim, Side (RH S.steel)
2Trim, Side (RH Biscuit)
2Trim, Side (LH White)
2Trim, Side (RH White)
2Trim, Side (LH Black)
2Trim, Side (RH Black)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
6Spacer, Foam
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Bracket, Combo Chassis
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16WP3400832 Whirlpool Screw
17SCREW
184452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
21Rail, Side (Left Side)
21Rail, Side (Right Side)
22Screw
23WP4449743 Whirlpool Screw
24WP4449154 Whirlpool Screw
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
31WP4450038 Whirlpool Screw
32Insulation, Bottom Vent
339760677 Whirlpool Oven Vent Deflector
34Vent, Center
35Extension Filler
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (S.Steel)
51WPW10207689 Whirlpool Trim Kit
52WPL 8303502
53WPL 4450365
53W11684730 Whirlpool Insulation
53WPL 4451756
53WPL ARI67201A6
