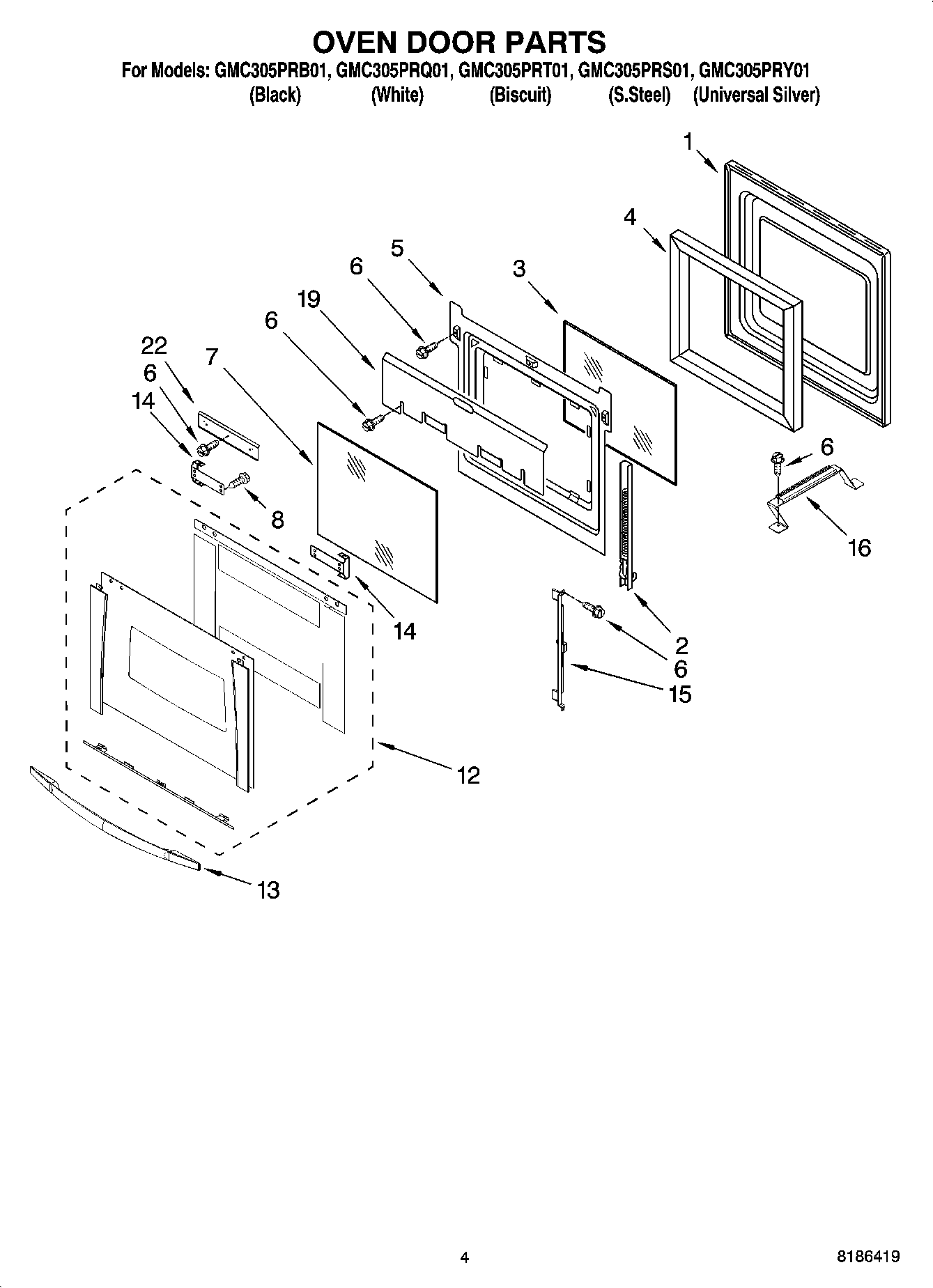

GMC305PRS01 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760579 Whirlpool Right Door Hinge
2	WP9760578 Whirlpool Oven Left Door Hinge
2	WP9760577 Whirlpool Oven Right Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
6	WP4449809 Whirlpool Screw
7	WP9759225 Whirlpool Inner Door Glass
8	Screw
12	Door Glass Assy (Lower) (White)
12	Door Glass Assy (Lower) (Black)
12	Door Glass Assy (Lower) (S.Steel)
12	Door Glass Assy (Lower) (Biscuit)
12	Door Glass Assy (Lower) (Silver)
13	Door Handle (S.Steel)
13	Door Handle (Black)
13	Door Handle (White)
13	Door Handle (Biscuit)
14	Bracket, Handle
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
22	4457114 Whirlpool Oven Heat Shield
