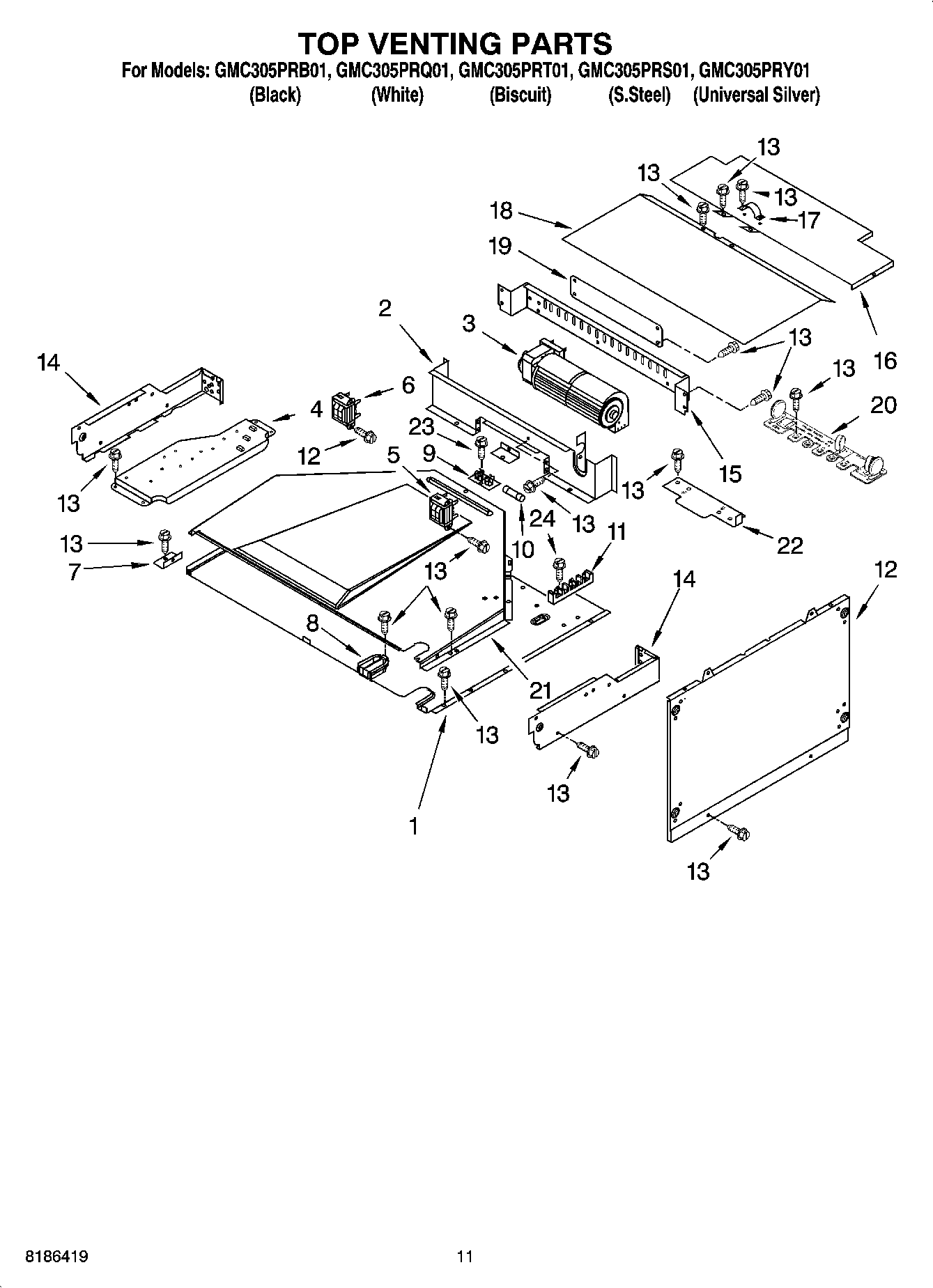

GMC305PRS01 09 – TOP VENTING PARTS, OPTIONAL PARTS

GMC305PRS01 09 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

GMC305PRS01 09 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI67203A8
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
1
WP3400832 Whirlpool Screw
WPL ARI67202A6
WPL 8304200
WPL 8304156
Filler Kit (Wh)
Filler Kit (Bl)
8301909 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
WPL ARI67204A8
4450950 Whirlpool Oven Conduit
WPL 591014
Spacer, Harness
16515 Whirlpool Clip
Wire, 25` Roll (Red 14 Ga.)
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
Wire, 25` Roll (Black 14 Ga.)
285006 Whirlpool Spray
72017 Whirlpool Appliance Touch-Up Paint White
4450800 Whirlpool Oven Screw
WP4449809 Whirlpool Screw
WP4448950 Whirlpool Screw
WPW10339879 Whirlpool Wire Tie
4452400 Whirlpool Microwave Wire Harness
Wire, 25“ Roll (White 14 GA.)
350930 Whirlpool White Spray Paint
Ground (M/W)
1Cover, Top
2Baffle, Blower
3WPW10016550 Whirlpool Blower Cooling Fan
3Blower
4Plate, Mounting
5WP9760588 Whirlpool Transformer
6Transformer, Control
7Bracket, Duct
8Grommet
94454949 Whirlpool Oven Fuse Block
10WPW10017410 Whirlpool Fuse
11WP8203546 Whirlpool Terminal Block
12Side, Combo
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
174448664 Whirlpool Oven Mounting Bracket
18WP4452367 Whirlpool Top Cover
19Plate, Cover
20SUPPRESSOR
21Exhaust Duct
224455191 Whirlpool Oven Mounting Plate
23WP4449154 Whirlpool Screw
24Screw
