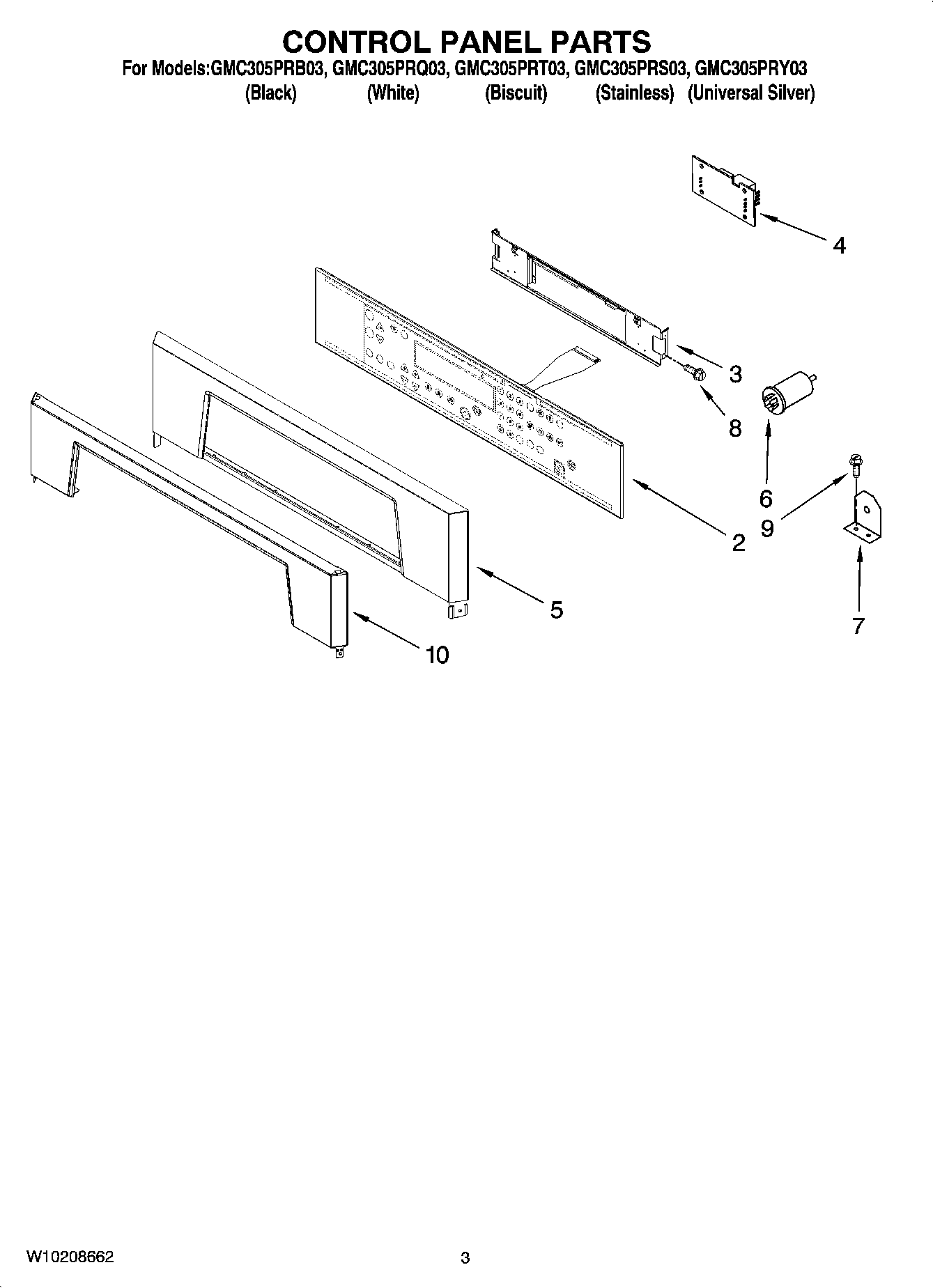

GMC305PRS03 02 – CONTROL PANEL PARTS

Products

PositionProduct
2Assembly, Switch (Silver)
2Assy, Switch (Biscuit Model)
2Assy, Switch (White Model)
2Assy, Switch (Black & Steel Mdl)
3Backer, Control Panel
4Latch, Sister Board
5Control Panel (Biscuit)
5Control Panel (Apollo Gray)
5WP8302849 Whirlpool Control Panel
5WP8302848 Whirlpool Control Panel
6Filter
7Bracket, Filter
8WP4449745 Whirlpool Screw
9WP4449809 Whirlpool Screw
10WPW10172165 Whirlpool Trim Panel
