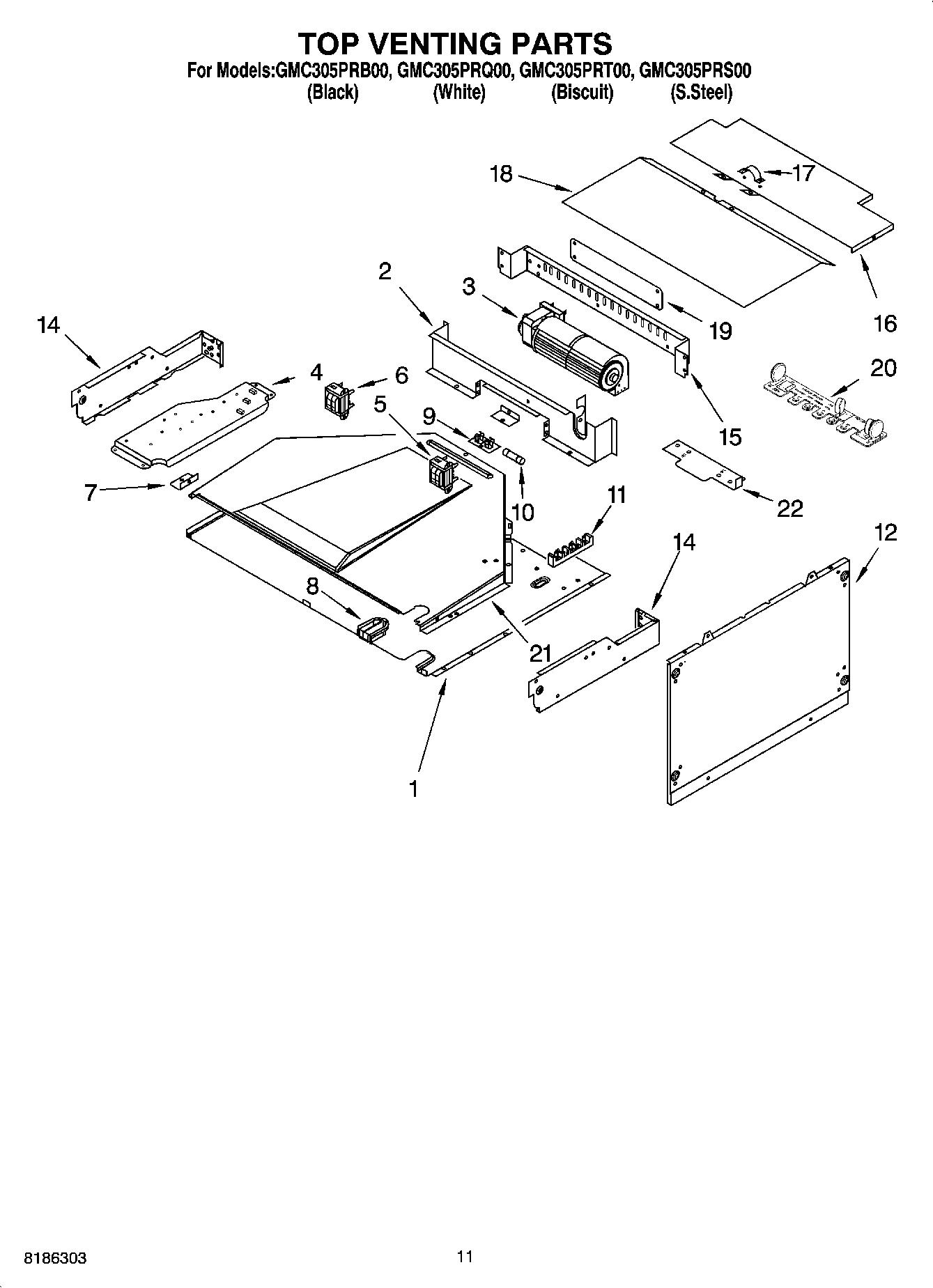

GMC305PRT00 09 – TOP VENTING PARTS, OPTIONAL PARTSadmin2025-04-26T11:40:09+00:00GMC305PRT00 09 – TOP VENTING PARTS, OPTIONAL PARTS
Products
| Position | Product |
|---|
| WPL ARI67221A5 |
| 18 Ga. 80~c Rating (Red) |
| Wire (12 Ga. 150 c Black) |
| Wire (14 Ga. 150 c Yellow) |
| Filler Kit (Bl) |
| Wire (14 Ga. 150 c Green) |
| Wire (14 Ga. 150 c Brown) |
| Wire (14 Ga. 150 c Blue) |
| WP261869 Whirlpool Microwave Paint |
| 242831 Whirlpool Oven Wire |
| Spacer, Harness |
| Wire (14 Ga. 200 c Brown) |
| 1 |
| WP3400832 Whirlpool Screw |
| WPL ARI67220A3 |
| WPL ARI67219A7 |
| Ha |
| WPL 8303837 |
| Filler Kit (Wh) |
| 8301909 Whirlpool Oven Wire Harness |
| 261900 Whirlpool Microwave Spray |
| WPL ARI67222A6 |
| 4450950 Whirlpool Oven Conduit |
| WPL 591014 |
| Wire (14 Ga. 150 c Orange) |
| 16515 Whirlpool Clip |
| 4450800 Whirlpool Oven Screw |
| 814381 Whirlpool Pin |
| WP482338 Whirlpool Refrigerator Adhesive |
| 72032 Whirlpool Touch Up Paint Black |
| 285006 Whirlpool Spray |
| Wire, 25` Roll (Black 14 Ga.) |
| Wire, 25` Roll (Red 14 Ga.) |
| WPW10339879 Whirlpool Wire Tie |
| Wire, 25`` Roll (White 14 GA.) |
| WP4448950 Whirlpool Screw |
| WP4449809 Whirlpool Screw |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 350930 Whirlpool White Spray Paint |
| Ground (M/W) |
| 1 | Cover, Top |
| 1 | WP4450118 Whirlpool Nut |
| 2 | Baffle, Blower |
| 3 | Blower |
| 3 | 489392 Whirlpool Refrigerator Screw |
| 4 | Plate, Mounting |
| 5 | WP9760588 Whirlpool Transformer |
| 6 | Transformer, Control |
| 7 | Bracket, Duct |
| 8 | WP112432 Whirlpool Nut Assembly |
| 8 | Grommet |
| 9 | 4454949 Whirlpool Oven Fuse Block |
| 9 | WP4449154 Whirlpool Screw |
| 10 | WPW10017410 Whirlpool Fuse |
| 11 | Screw |
| 11 | WP8203546 Whirlpool Terminal Block |
| 12 | Spacer, Foam |
| 12 | Side, Combo |
| 14 | W10790240 Whirlpool Side Assembly Complete |
| 14 | W10755214 Whirlpool Side Complete |
| 15 | Back, Control |
| 16 | WP4450551 Whirlpool Top Cabinet |
| 17 | 4448664 Whirlpool Oven Mounting Bracket |
| 18 | WP4452367 Whirlpool Top Cover |
| 19 | Plate, Cover |
| 20 | SUPPRESSOR |
| 21 | Exhaust Duct |
| 22 | 4455191 Whirlpool Oven Mounting Plate |
