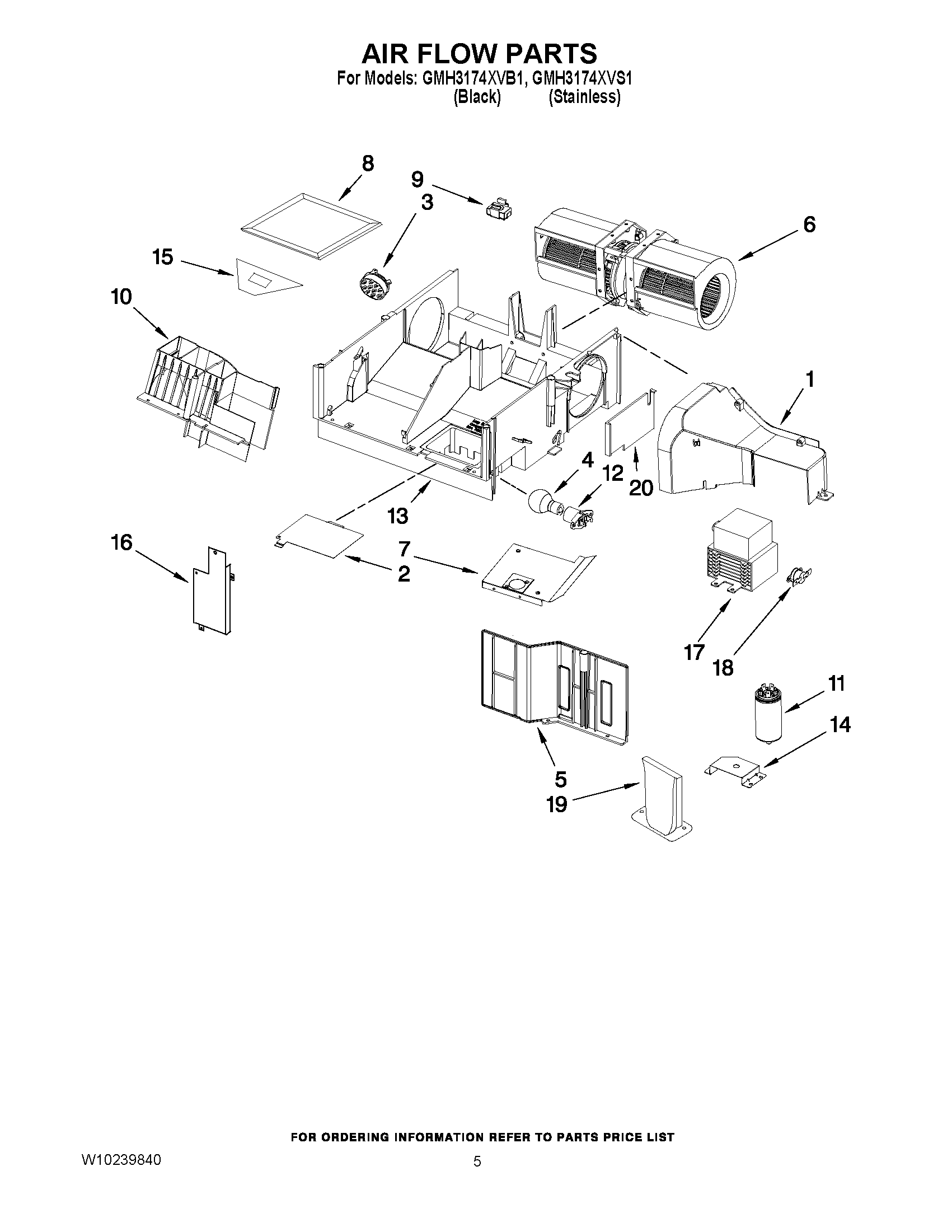

GMH3174XVB1 04 – AIR FLOW PARTS

Products

PositionProduct
1Deflector, Air
28206382 Whirlpool Microwave Light Cover
3SENSOR, HUMIDITY
48206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
5W10269231 Whirlpool Microwave Side Cover
6MOTOR, FAN ASSEMBLY
7W10247762 Whirlpool Duct Cover
88206230A Whirlpool Microwave Charcoal Filter
9W10596040 Whirlpool Microwave Nut
10AIR GUIDE,PLATE
11Filter
12WPW10210878 Whirlpool Microwave LMP Housing
13Base Plate, Air Guide
14BRACKET, FILTER
15SOCKET, MOTOR WIRE
16Cover, Inlet Air Cavity Guide
17W10754299 Whirlpool Microwave Oven Magnetron
18W10598693 Whirlpool Microwave Thermostat Fix
19W10164716 Whirlpool Microwave Plate
20COVER, RIGHT DUCT
